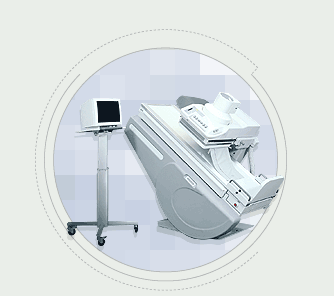

All the functions of
the table are constantly controlled by microprocessors, one of
which is always acting to prevent failures and malfunctions that
might create risk for the patient. Tilting, longitudinal and
transversal tabletop movements are motorized, while longitudinal
tube /Spot Film Device group movement is servo assisted.
Transversal and compression Spot Film Device movements are smooth
manual driven and equipped with electromagnetic brakes. The user
interface takes advantage from ergonomic handles that assure easy
and effective operation in any condition. An automatic motorized
compressor is moved into the exposure area when cross subdivision
is selected. A manual modality can also be chosen to activate or
park the compressor in any desired situation. The fully electronic
under table collimator assures dose reduction.
The cassettes size accepted and the wide range of subdivisions (up
to three on one in line, up to six on one in cross) cover all the
routine application. Inner lead shutters assure a perfect
definition between radiograms on the same film.
 |
To match your require-ments, the unit can be configured to
include an undertable bucky device and a floor tubestand
column with or without tomographic function |
| |
 |
The flat keyboard on the Spot Film Device allows the
activation of all functions of the unit itself, as well as
selection of image intensifier and generator most important
controls. A clear alphan umeric display shows all the
information about serial changer and table operation with
clear text messages. |
|
