C1HR
The tube stand column slides on rails thanks to wheels that
allow the longitudinal movement for adjustment of the focal
distance with regard to the vertical Bucky.
All the movements are counterbalanced and one brake exists for
the vertical movement and one for lateral movement.
The tube rotation has detents at 0°, +90° and –90°. |
|
|
 |
TPF1S
The TPF1S table with four-way floating tabletop is dedicated
to the conventional radiography with a horizontal tabletop
moving longitudinally and laterally, under which a Bucky can
move longitudinally
The operator interrupts the photocell beam with his feet in
order to release longitudinal and transverse brakes of
tabletop and stop interrupting photocell beam to block motion.
The operator uses a button to release the Bucky brake. |
|
|
 |
PM1S
The wide movement of the Bucky with the column allows any kind
of examination easily (for example knees in standing
position). |
|
|
|
|
| |
 |
|
 |
RAD Generator
control desk |
Touch screen
generator
control desk |
|
| |
|
|

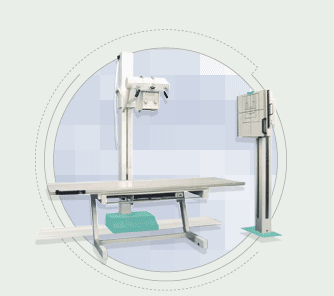

Rad Room E+
Basic Radiological System
Rad Room
Universal Radiographic System
|
|
