A

AUTOCLAVE AUTOMATIC PIPETTE WASHER ANAEROBIC CULTURE JAR ANTIBIOTIC ZONE READER
ACID FUME NEUTRALIZER PLATELET AGITATOR

PORTABLE AUTOCLAVE

Single body made of heavy gauge. Stainless steel welded. The lid heavily polished & fitted with pressure gauge steam exhaust valve, safety valve handle &stand with pressure of 15lbs/Sq inch, working on 230Volt Ac single phase.

SIZE                                RATING

DIA 30X30CMS            1.5KW

ALUMINIUM PORTABLE DIE CASTED

DIA 30 X 30 CMS  1.5 KW

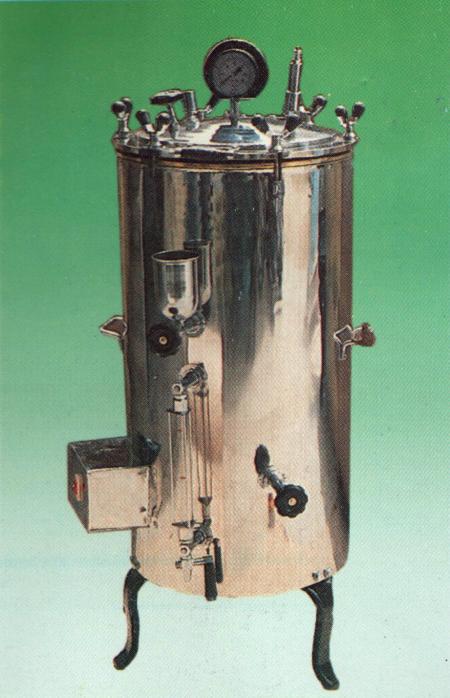

VERTICAL AUTOCLAVE :

Inner body is made of heavy gauge s/s welded .the lid & the ring are made of s/s plate . The lid heavily polished & is fitted with pressure gauge , safety valve &steam exhaust valve ,& safety value is set to blow of 20lb /square inch to remove excess steam & maintain constant pressure. a rubber gasket is fitted in the ring to insure stem tight joint over cover made of polish s/s with legs. fitted with immersion water heater /s. with foot lifting arrangement provided.

Working size                  Rating

12”dia x 20”ht                 2.0kw

14”dia x 22”ht                 3.0kw

16”dia x 24”ht                 3.0kw

18”dia x 24”ht                 4.0kw

18”dia x 28”ht                 4.0kw

22”dia x 30”ht                 6.0kw

22”dia x 36”ht                 6.0kw

Available in inner & outer made of stainless steel, perforated basket,  Aluminium, Stainless steel

ACCESSORIES :

Fully automatic dunfoss pressure switch with digital timer & water level controller.

Electronic timer range 0-2 hrs with digital display

Autoclave pressure control switch cut off power to the heater once autoclowing pressure of preset desired level is achieved accuracy +-0.5PSI

Digital temperature indicator with suitable sensor with an accuracy +- 0.1C

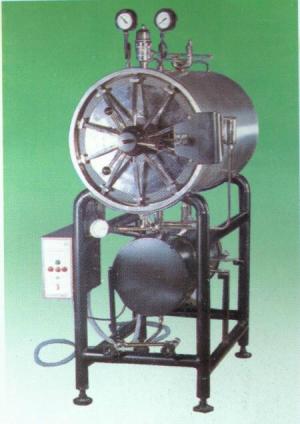

AUTOCLAVE HORIZONTAL

HIGH PRESSURE CYLINDRICAL

The inner chamber, steam jacket, outer chamber and boiler are made of heavy gauze stainless steel with leak proof argon arc welding. The radical locking lid is made of thick S.S. plate. All units are hydraulically tested up to 40 P.S.I. the space between outer chamber and steam jacket is filled with asbestos sheet or glass wool to minimize the thermal losses.

Steam boiler is fitted with water level indicator, pressure gauze, low water level cut off device and automatic pressure control device Indfoss Piezostat.

Hinging self locking S.S. door can not be opened when under pressure. The self locking S.S. door automatically disengages the thread mechanism when in operation or under pressure. Fitted with a dial  thermometer to indicate inner temperature and vacuum breaker to  break vacuum in case of formation of vacuum due to steam condensation. Two separate valves are provided with for evacuating steam from inner chamber and jacket as and when desired. To work on 440 volts, 3 phase supply.

Available in following sizes:

400mm dia x 600mm depth            Load 6.0KW

400mm dia x 1100mm depth          Load 8.0KW

500mm dia x 900mm depth            Load 8.0KW

500mm dia x 1200mm depth          Load 12.0KW

LABORATORY AUTOCLAVE (FULLY AUTOMATIC)

Completely made from stainless steel fitted with digital temperature controller and epoint indicator to Digital Timer & Solenoid valve for free purging .three PT-100 Sensor are placed at three different levels to measure uniformly. Process will be as follow start set temp set time- pressure start rising –at 1000C sensor are placed at three different level to measure uniformity process will be as follow start set temp set time –pressure start rising –at 1000C free purging –solenoid valve closes Set temp. achieved Timer starts –Timer over- solenoid open Release pressure –Cut off heater Stop Supplied with stainless steel basket.

Chamber size

1.      45 Dia x 70 Ht cms. (18”Dia x 24”Ht)

2.      55 Dia x 75 Ht cms. (22”Dia x 30”Ht)

OPTIONAL :

                                Circular chart recorder

TOP

AUTOMATIC PIPETTE WASHER

Consist of pipette rack and a special design container for rack .It is operated on symphoning system for convenient washing for pipette .this pipette can be placed tip up (mouth piece down) on the rack which is then placed in the container .the fresh water enter at the bottom of the container and the rack are made OF S.S.



TOP



PLATELET AGITATOR


PLATELET AGITATOR (PR-10)
This Compact Agitator Model PR-10 is specifically designed to maintain donor platelets in an even suspension throughout the blood plasma. Platelet Agitator agitates at the fixed speed of 70 to 80 strokes per minute.

Maximum 32 standard Blood bags can be accommodated

Special Features

• No damage to blood cells.
• Fixed speed of 70 to 80 strokes per minute.
• Audio Visual Alarm in case of variation in strokes beyond specified above.
• Can be accommodated in platlet incubator model PI-10.



ANAEROBIC CULTURE JAR

All metal construction (modified mcintosh and field pattern). It consist of a metal jar with top lid complete made of stainless steel .Two valve are fitted to the lid of the jar for connection to hydrogen and vaccum supplies. The jar is sealed by hand tightening the clamp which secure clamp which secure lid. The lid cushions on to a rubber “O” ring .The catalyst is provided with the jar. Semi Lucas indicator provided with stainless steel rack to hold 100 mm dia Petri dish & with a gauge to measure pressure & Vaccum.



                            Size      12Cms.Dia x 20 Cms. Ht

                                         22Cms.Dia x 22 Cms. Ht

TOP

ANTIBIOTIC ZONE READER :

The zone reader measures the diameter of the inhabited Zone to 0.1 mm. within range of 0 to 35 mm . Light from source in the base passes up through the transparent and semitransparent portion of the agarthen to a reflecting mirror supported by an arm above the unit. The  mirror reflects the light to a glass prism mounted at the front of the unit and the magnified image of the zone of inhabitants is clearly visible on the prism.

TOP



ACID FUME NEUTRALIZER

Features

Two stage neutralization with water and alkali

Alkali & Water tank capacity - 2 litres.

Diaphragm pump to create vacuum source.

Displacement capacity of pump in 25 liters / minute.

Manual vacuum control.

TOP





B

BACTERLOGICAL INCUBATOR BAGASSE DIGESTER DEER MODEL  B.O.D. COOLED INCUBATOR (DIGITAL DISPLAY) BUNSAN BURNER WITH REGULATOR BOX
BATH OIL BATH SAND BATH WATER BLOOD SUGAR WATER BATH

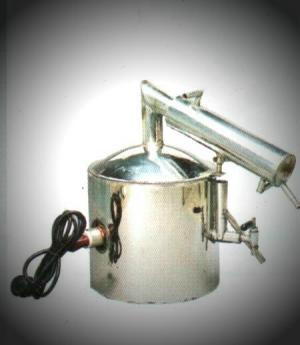

BATH CONSTANT TEMP. BARNSTEAD TYPE WATER STILL BATH LOW TEMP. BATH SEROLOGICAL
BATH TISSUE FLOATING BUCHNER FUNNEL BEAKER MANTLE BULK DENSITY APPARATUS
BATH KINEMATIC VISCOMETRIC BLOOD/VACCINE STORAGE CABINET

CRYOSTAT BATH

BLOOD BANK REFRIGERATORS

BLOOD CELL COUNTER CRYO PRECIPITATE BATH

BLOOD COLLECTION MONITOR

NEEDLE BURNER

BLOOD/VACCINE STORAGE CABINET :

For storage of Blood, Vaccines, Reagents, Cultures etc., Temperature 40C (Other temp. optional)

Digital temperature controller with audio visual alarm against temp. variation or power failure.

S.S. interior, separate compartments, and doors, S.S. trays, Sliding Drawers

Capacity : 54 tp 375 blood bags & 40 to 210 blood bottles.

TOP

CRYOSTAT BATH:

COMPACT CONSTANT TEMPERATURE BATH

DIGITAL TEMPERATURE CONTROLLER

TEMP. CONTROL & UNIFORMITY : ± 0.10C

CHAMBER AND LID S.S.

CHOICE OF MINIMUM TEMP. 0, -20, -30, -40 OR -700C. & MAXIMUM TEMP. 50 OR 1000C.

BATH CAPACITY : 12, 15, & 20 LTRS.

TOP



BLOOD BANK REFRIGERATORS






BLOOD BANK REFRIGERATORS
These Blood Bank Refrigerators are designed to meet all modern requirements for conserving whole blood and other specific products used in medicine such as vaccines, Reagents, Cultures. Processing and storing of blood and other product demand extra protection and care. These Blood Bank Refrigerators incorporate centrifugal forced draft system for maintaining the inside temperature at constant digitally displayed 4Ί C with temperature variation within ±1Ί C. Constructed of double walls the exterior is made of sheet steel. The gasket keeps the door sealed against warm air & moisture. These Refrigerators having stainless steel interior are provided with a number of compartments having transparent plexi glass doors. The unit is fitted provided by lamp which is illuminated whenever the door is opened. The Refrigerators are provided with acrylic trays for proper storage of blood bags.

The controls comprise of fully automatic digital temperature indicator cum controller, On/Off Switches indicating lamps and protective fuse. Also incorporated is electronic Safety device which gives audio-visual alarm in case of either power failure or any other reason, thereby protecting the precious samples stored inside the refrigerator. The SR series of Blood Bank Refrigerators in addition to the above features incorporate Built in temperature recorder and servo controlled voltage stabilizer.

The DX (Deluxe) series of Blood Bank Refrigerators have the additional special features as follows:


• Stainless steel inner and outer body.
• Full view glass door for observation without disturbing inside conditions.
• Display of approximate actual blood temperature.
• Automatic defrosting system.
• Automatic change over to standby controller in case of Controller failure.
• Built in voltage stabilizer to safeguard power fluctuation.
• In built 19 column printer for recording temperature at regular intervals.
• Simultaneous printing of Date/Month/Year and Time.


TECHNICAL DATA


Models Capacity of
Blood Bags (Approx.)
External Dim
WXDXH (cm)
Recom.
Voltage
Stabilizer*
Net
Weight
BR-40
BR-40SR
BR-40DX
60 53x61x125 1 KVA
BR-70
BR-70SR
BR-70DX
144 65x67x144 1 KVA
BR-120
BR-120SR
BR-120DX
244 73x75x157 2 KVA
BR-280
BR-280SR
BR-280DX
300 76x85x195 3 KVA


Supply: 230 Volts Single Phase 50Hz AC.

In SR and DX series voltage stabilizer is built in. guarantee invalid in case of non use of servo Controlled voltage stabilizer. Refrigerators of sizes & capacities other than mentioned above can also be offered against specific requirements.
Optional Accessory Recorder for recording temperature.

TOP

Bacteriological incubator (Lab Model)

Double walled outer body of mild steel / aluminum /s.s. lagged with glass wool. Temperature is control by capillary type hydraulic thermostat with +/- 0.5dig C accuracy .Range ambient +5digC to 60digC glass door is provided.  (mild steel aluminium, stainless steel)

Chamber size             Watts          Shelves

10”x10”x10”              200               1

12”x12”x12”              250               1

14”x14”x14”              250               2

18”x18”x18”              400               2

18”x18”x24”              500               2

20”x20”x24”              600               3

18”x24”x36”              750               3

24”x24”x24”              850               3

24”x24”x36”              950               3

1)FITTED with FORCED AIR CIRCULATION ( i.e., Fan & Motor Arrangement) at bottom

2) Solid State Temperature. Controller with Front Dial to Set th e Temperature Extra.

BACTERIOLOGICAL INCUBATOR (MEMMERT MODEL)

Double walled. Three side heater made of nichrome wire provided. Temperature is controlled by capillary type hydrolic thermostat  gives  ± 0.50C accuracy working Temperature ambient + 50C To 700C with built in L shape thermometer & glass door. (AVAILABLE MILD STEEL, ALUMINIUM, STAINLESS STEEL)

CHAMBER SIZE      WATTS      SHELVES

12”x12”x12”                250                  1

14’’X14’’X14’’              300                  2

18’’X18’’X18’’              500                  2

18’’X18’’X24’’              600                  3

20”x20”x24”                600                  3

24”X24”X24”               900                  3

18”x24”x36”                900                  3

24”X24”X36”             1000                  3

1) FITTED with FORCED AIR CIRCULATION (i.e., Fan & Motor Arrangement) at bottom

2) Solid State Temperature Controller with Front Dial to Set the Temperature

(C) DIGITAL DISPLAY INCUBATOR :

SOLID STATE DIGITAL Temperature indicating controller with PT-100 as sensor . Temperature range 50C above ambient to 600C with ± 0.50C accuracy. Heating by long lasting heater. Glass door is provided. Available in  MILD STEEL, ALUMINIUM, STAINLESS STEEL.

CHAMBER SIZE          WATTS          SHELVES

14’’ X 14’’ X 14’’              300                      2

18’’ X 18’’ X 18’’              500                      2

18’’ X 18’’ X 24’’              600                      2

24” X 24” X 24”               900                       3

24” X 24” X 36”              1000                      3

FITTED WITH FORCED AIR CIRCULATION (i.e., fan & motor arrangement) at bottom.

Timer for 24hrs with automatic arrangement off the heater supply at set time

(D) SEE THROUGH INCUBATOR :

A novel concept to ensure clear observation from all four sides. Body & door made of clear acrylic fitted over mild steel spray finished control & heating module Temperature ambient + 50C sensitively supply with thermometer to ensure accuracy .

Size :14”X 14” X 14” with Two Trays

TOP

BAGASSE DIGESTER DEER MODEL : (ELECTRIC, NON ELECTRIC)

CAPACITY

500 Grams

750 Grams

1000 Grams

TOP

NEEDLE BURNER


NEEDLE BURNER (NB-01)
The innovation and leadership in designing & manufacturing of scientific instruments. JASHBIN is pleased to offer Needle Burner to prevent the re-use of Syringes and Needles carrying dangerous infective diseases like AIDS, HEPATITIS-B etc.

Safe and sure way to destroy needles is by burning.
A must for every clinical laboratory, Blood Bank and even general practitioners.

FEATURES :

• Needle destruction by burning
• Burning temperature above 700Ί C
• Voltage : 230 Volts-50 Hz.
• Power : Burner more than 3000 needles in one electrical unit
• Consumes power only when needle is inserted.
• Indicator for needle burning
• Size : 100x115x160 mm
• Weight 1.6 kg
• Housing - elegant ABS (Plastic) Box
• Syringes are cut by stainless steel blade
• Stub separator to separate the needle without touching.


Supply 230 Volts 50Hz. AC.

TOP

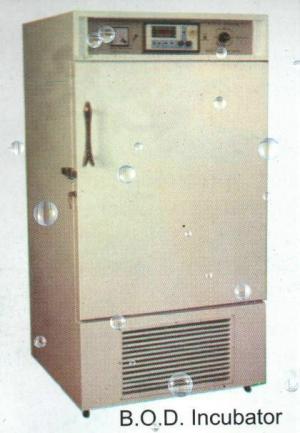

B.O.D COOLED INCUBATOR (DIGITAL DISPLAY) :

Double walled, interior of stainless steel. Exterior of mild steel finished in powder coating epoxy paint. Full length inner glass door & outside metal door with magnetic gasket and lock. Two perforated removable stainless steel tray distance. Unit consist of Digital display Temperature indicating Electronic Controller with PT-100 as a sensor lamp for all switches and controls. Automatic chamber light forced air circulation for uniform Temperature Hermatically sealed compressor . Unit with electronic time delay to safe guard compressor, castor wheel for easy movability. Unit works on 230 Volts, AC 50Hz Main  supply. Temperature range : 50C to 500C accuracy ±10C

CAT. NO.            INTERNAL DIMENSION   CUFT.         CAPACITY

4A (3 SS)            45 x 45 x 45 D cm                    3                      90 lts

4A (6 SS)            70 x 50 x 50D cm                     6                    165 lts

4A(10 SS)           90 x 55 x 55D cm                    10                   287 lts

4A (12 SS)          90 x 60 x 60D cm                    12                   324 lts

4A (16 SS)          90 x 70 x 70D cm                    16                   440 lts

A suitable voltage stabilizer for the above at an extra cost

(B) B.O.D COOLED INCUBATOR WITH ILLUMINATION :

Chamber illumination using 4 fluroscent tubelight of 2 ft. with programmable 24 hrs Timer for DAY/NIGHT effect can be provided at an extra cost.

TOP

ELECTRIC BUNSEN BURNER WITH REGULATOR BOX :

The apparatus consists of a heating element within a conically shaped refractory crucible which is enclosed in a stainless steel cylindrical housing which form the support. Performations provided at the lower part of support and also a concentric gap left between the refractory casing and support will prevent any undue temperature rise. The element attains the temperature range of 8000C to 10000C consumes 350 watts approximately. Maximum working temperature is about 6000C to 7000C.

available with Energy regulator, with pyrometer, with digital display

Overall Height

Cowl diameter

Base Diameter

2.1/4”

41/2”

SPARE HEATING ELEMENT

SPARE HEATING ELEMENT WITH CERAMIC CRUCIBLE

TOP

(A) OIL BATH :

Double walled, outer made of Mild steel duly painted and consist of welded inner tank made of stainless steel, The bath is provided with two heater of 1KW each rating. Thermo Regulator is provided for temperature control by powerful induction motor drives the centrifugal pump. Temperature 50C above ambient to 2000C.

Working size

Thermostatic

Built in digital display

12”x12”x8” Ht (17 ltr capacity)

available

available

Note : the use of the heat transfer oil & silicon for Temperature up to 2000C recommended. Paraffin wax may also be used up to 1500C,proided it is fill in to the bath after melting it outside at first working.

(B) DIGITAL DISPLAY OIL BATH HIGH PRECISION :

Inside chamber made of stainless steel sheet welded outside made of heavy gauge Mild steel Sheet duly painted space between the inner & outer casing filled with insulating wool to minimize loss of heat. Heating is by permanency & booster heaters. Temperature range500C to 2500C . A  circulatory FHP MOTOR PUMP WITH STIRRER is mounted on a top and fitted on o0ne side of the bath The stirrer blade give efficient stirrer through out the liquid . The Temperature  sucks the bath liquid and forces it back to the working chamber.

Working size : 15”x12”x10 Ht        &          10”x10”x8” Ht

(C) OIL BATH FOR PILOT PLANT :

Made of heavy gauge mild steel sheet . fully welded completely leak proof .The bath is provided with runner heater made of imported oxidized 80/20. Nickle chromium wires of approximate gauge enclosed in sealed steel pipe at the bottom. The temperature  is control by energy regulator. The bath is specially design for outlet of 47 or 57 mm. DIA for bottom discharge with arrangement of oil seal to avoid the leakage problem provided with cool coil. The bath is duly painted inside chamber with heat resistance silver paint and outer wall finished with hammertoe color. One strong ,mild steel stand is provided middle of the bath where the flask can be easily and the stand also can be adjustable up or down according to adjustment of the out of flask, complete with and outlet cocks.

Capacity of flask

Wattage

20 Ltr

3 K.W.

50 Ltr

5 K.W.

100 Ltr

6 K.W.

200 Ltr

9 K.W.

(D) OIL BATH

For pilot plant single walled as above

Capacity of flask

Wattage

20 Ltr

3 K.W.

50 Ltr

5 K.W.

100 Ltr

6 K.W.

200 Ltr

9 K.W.

(E) OIL BATH MINI

Double wall construction outer mild steel painted & inner chamber made of stainless steel Temperature. range500C to 3000C controlled by energy regulator / Digital Display indicating controller. (Available With energy regulator and Digital Controlled)

Capacity

Watts

1 Lit

750

2 Lit

1000

3 Lit

1500

5 Lit

2000

10 Lit

2500

20 Lit

3000

TOP

SAND BATH :

Double walled construction made of stainless steel outside cement sheet fixed on mild steel angles. The bath is heated by open type heaters arranged at the bottom of stainless steel tank controlled by Energy Regulator.

Size

Rating

12“x8” x 3.1/2” Height

1000 watts

18”x12” x 3.1/2” Height

1750 watts

TOP

(A) ROUND WATER BATH :

Made of stainless steel provided with immersion type of heater with concentric ring (available in Electric and thermostatic)

Size

Rating

8” Dia x6” Ht.

1 KW

10” Dia x6” Ht.

1 KW

13” Dia x6” Ht.

1.5 KW

(B) Rectangular water bath

Single walled made of stainless steel with immersion heater & concentric rings (available Single wall electric & Single wall thermostatic)

Size:

Hole 3" dia

Rating

14" x 10" x 4"

6

1 KW

16" x 12" x 4"

12

1.5 KW

 (C) Thermostatically controlled water bath

Double walled, outer made of mild steel painted and inside made of stainless steel temperature is controlled by hydraulic capillary type thermostat having accuracy +/- 1Ί C with concentric rings. (Available in inner S.S., Inner-Outer S.S., Inner S.S. - Outer acrylic)

Size:

Hole 3" dia

Rating

14" x 10" x 4"

6

1 KW

16" x 12" x 4"

12

1.5 KW

also available

            ------do--------but with digital display temperature indicating controller built-in

(D) WATER BATH FOR BLOOD SUGAR TEST TUBE :

Made of stainless steel single walled with rack removable two perforated to accommodate 12 Blood Sugar-Tube for electrically operated rating 1KW working Size 6” Dia . Complete with cord & plug

available in Non Electric.

(E) UNIVERSAL WATER BATH :

Is made of full of stainless steel polish and temperature Range 50C above ambient to boiling point of water having accuracy ± 10C. Available Single wall S.S. & Inner S.S outer M.S. painted

Size

Rating

Holes

12” L x9”Wx7”H

1000 W

5

18” L x12”Wx7”H

1500 W

8

1. pyramid lid for size (a) & (b)

2. Drop on lid with holes and concentric ring

Size

3” Hole

5”Hole

For (a)

4

1

For (b)

8

2

3. Khan rack S.S

40 Holes

Wassermann Rack

48 Holes

Agglutination rack

42 Holes

(F) WATER BATH DYE POTS :

Double walled, inner made of Stainless Steel and outer mild Steel duly painted. Thermostatic controlled by hydraulic capillary type thermostate.

Available in Single walled and double walled (Inner S.S. and Inner-Outer S.S.)

Capacity of dye -pots

Number of dyes pot

250 ml

6

250 ml

12

500 ml

6

500 ml

12

The above water bath can be supplied with stainless steel Dye pots of :

Capacity of dye-pots

250 ml

500  ml

WATER BATH 5 HOLES :

It is double walled construction inner made of stainless steel & outer made of mild steel painted with one hole of 12.5 cms. Dia and 4 holes of 7.5 cms.Dia concentric ring and lid are provided on the holes. Temperature range 50c above ambient to 950c having ± 10c accuracy by hydraulic capillary thermostat.

Size :12”x10”x5” Ht

(H) WATER BATH ROUND BOTTOM FLASKS :

Made of single walled stainless steel electric/inner S.S outer M.S. painted/ Double walled Stainless Steel. available in Electric Single walled & Thermostatic

Capacity

Rating

2 Ltr

1 kw

5 Ltr

1.5 kw

10 Ltr

2.0 kw

20 Ltr

2.0kw

(I) CONSTANT TEMPERATURE – CIRCULATING WATER BATH:

DIGITAL DISPLAY INDICATING CONTROLLER BUILT-IN BATH.  RECTANGULAR IN SHAPE INSIDE RESERVOIR IS MADE OF STAINLESS STEEL FINISHED IN STOVE ENAMEL ATTRACTIVELY.  IN BETWEEN WALL IS FILLED WITH GLASS-WOOL. A CIRCULATORY FHP MOTOR PUMP WITH STIRRER IS MOUNTED ON TOP AND FITTED ON ONE SIDE OF THE BATH.  TEMPERATURE RANGE AMBIENT TO 1000 C PROVIDES MOST SENSITIVE CONTROL BY A DIGITAL +  0.50 C ACCURACY. HEATING IS BY PERMANENT HEATER AND ONE BOOSTER HEATER. CONTROL GEAR CONSISTS OF SWITCHES FOR MOTOR AND HEATERS, ETC.

WORKING SIZE                RATING

12”L X 10”W X 8” H        1.5 KW

15”L X12”W X 10” H       2 KW

full made of acrylic transparent (clear) Size 10”x10”x10”

(J) WATER BATH INCUBATOR SHAKER :

DUBNOFF TYPE : Double walled stainless steel inside. Fibre glass insulated and outside made of mild steel duly painted. Powdered by a continuous duly. Variable speed self cooled motor with speed control up to 200 Osli/min adjustable stepless strokes from 0-2”. Temperature range ambient to 950C with cover by a hydraulic capillary type thermostat ± 10C accuracy by digital display temp indicating controller. Supplied with stainless steel pyramid type cover. (Available Thermostatic & Digital)

Working size

Tray capacity

a) 12”x12”x61/2”

9 Flask of 250 ml

b) 16”x12”x61/2”

12 Flask of 250 ml

c) 20”x12”x61/2”

16 Flask of 250 ml

TOP

AUTOMATIC WATER STILL (MANESTY TYPE )

For pyrogen free distilled water . The full body is made of stainless steel fitted with safely ejection type immersion heater a constant water level arrangement is provided .a stem baffle is provided to take stem direct to the condenser the stated output of the still is bound to vary according to the voltage of the MAIN (CLOSE TYPE CONDENSERAUTOMATIC OPEN CONDENSER)

Capacity / HR

 RATING

2 LTR

1.5

4 LTR

3.0

6 LTR

 4.5

8 LTR

 6.0

10 LTR

 8.0

12 LTR

 9.5

15 LTR

 12.5

20 LTR

 14.0

SINGLE PHASE

20 LTR                     14.0

THREE PHASE

WATER STILL (BARNSTEAD PATTERN TYPE)

Double walled chamber inner & outer made of stainless steel table top model FULL MADE OF SS

CAP/HR

RATING

2 LTR

1.5

4 LTR

3.0

6 LTR

6.0

8 LTR

6.0

10 LTR

10.0

12 LTR

12.0

15 LTR

14.0

20 LTR

18.0



TOP

LOW TEMPERATURE BATH

Outside body Mild Steel. Inside body Stainless steel. Glass wool insulation between the walls. Rectangular in shape. Fully automatic Digital Display. Temperature controller with PT. 100 as a sensor. Constant speed circulation pump. Refrigeration is achieved by means of hermatically sealed  compressor. (Available with stirrer and with pump & stirrer)

Temp. Range Bath Capacity Chamber Dimension L x W x D cm Bath Opening in cm
0 to 500C 12 Ltrs. 33 x 25 x 17 25 x 20
-20 to 500C 12 Ltrs. 33 x 25 x 17 25 x 20
30 to 500C 12 Ltrs. 33 x 25 x 17 25 x 20
0 to 500C 15 Ltrs. 33 x 25 x 20 25 x 20
-20 to 500C 15 Ltrs. 33 x 25 x 20 25 x 20
30 to 500C 15 Ltrs. 33 x 25 x 20 25 x 20
0 to 500C 25 Ltrs. 33 x 25 x 20 25 x 25
-20 to 500C 25 Ltrs. 33 x 25 x 20 25 x 25
30 to 500C 25 Ltrs. 33 x 25 x 20 25 x 25

TOP

        Serological water bath :

Double walled lagged with glass wool .inside body made of stainless steel outer made of mild steel & duly painted temperature is controlled by a capillary type thermostat range ambient +50c to 700c with ± 0. 50c accuracy. a perforated tray is provided at the bottom. electrically operated working on 230 volts ac with indicating lamp and mains etc. but supplies without rack & thermometer. (Available in thermostat, inner-outer S.S., Pyramid Cover, Acrylic single body)

To ACCOMODATE

Size

2 rack

11” x 5” x 5”

4 rack

14” x 10” x 5”

6 rack

18” x 10” x 5”

8 rack

22” x 10” x 5”

.....do….... fitted with solid state electronic thermostat with high accuracy ± 0.20c

… do…… fitted with digital display controller – indicator

khan rack 30 holes of 13mm dia (3x10) full made of stainless steel

widel rack of 20 holes of 10mm dia 7 4 holes of 16 mm dia full made of stainless

TOP

TISSUE FLOATING BATH :

Used for paraffin curing embedding for biological and bacteriological work. An indespensible aid in every histology laboratory .inner chamber 8” Dia. 3.1/2” Depth made of black anodized aluminium & outside made of thick mild steel painted with glass wool painted in between .Black anodized lid for protection against dust .Temperature regulator between ambient  to 700C by thermo regulator maximum input 450 Watts. Suitable for 230 Volts AC

ROUND MODEL SIZE                   8” Dia x 31/2” Depth

Rectangular MODEL SIZE            14” Dia x 10”x4””hight

TOP

BUCHNER FUNNEL :

Full made of heavy gauge stainless steel welded 316 quality

Diameter

10”

12”

TOP

BEAKER MANTLE :

CAPACITY

WATTS

250ML

150

500ML

150

1 Ltr.

300

2 Ltr.

450

3 Ltr.

500

5 Ltr.

750 (1 X 300 & 1 X 450)

10 Ltr.

1000 (2 X 500)

ABOVE CAN BE SUPPLIED IN BUILT IN REGULATOR

TOP

BULK DENSITY APPARATUS :

To determine the density of the powder. A motor moves a shaft carrying clamps at each end to hold graduated cylinders in and up & down direction at a frequency rate between 28/32 cycle per minute through a distance of 5-6 cms the flanges bottom of the glass cylinders strick on a cushion fitted on the platform. A timer is provided to set the duration (supplied without measuring cylinder)

TOP

KINEMATIC VISCOCITY BATH :

Double walled inside made of stainless steel with front glass built in for view. Top lid having holes for keeping viscometer holder circulatory pump is fitted on one side of the bath with control panel consist of switches and lamps for MAINS & CONTROLS .Fitted with Digital Display Controller Range Ambient to 1000C ± 0.10C Accuracy.

Size : 14”L x10”W x12”Ht

Temp Range 00C to 800C Refrigeration model

TOP



BLOOD CELL COUNTER




BLOOD CELL COUNTER(RBC-12)

Electronic Blood Cell Counter are specially designed for simplify blood count analysis. Counting is stopped automatically upon reaching a full hundred. With 12 entry keys and 4 function keys.
Digital display up to 999.

Salient Features:
Microprocessor based
Compact and light weight
8 Channels
Counts upto 999
Easy and quick counting
Timer and Stop watch facility

Power supply: 220V 50 Hz.



TOP

BLOOD COLLECTION MONITOR


BLOOD COLLECTION MONITOR (BCM-10)
Model BCM-10 newly developed compact unit provides smooth and Gentle Rocking action for uniform Mixing of Blood with Anticoagulant without damaging Blood cells and platelets while collection of Blood from a donor. The mixing is thorough due to end to end blood bag mixing which significantly increases red cells, Platelets and plasma yields. The unit incorporates highly advanced microprocessor controller. Specially designed tray facilitates proper grip of blood bag.

Special Features

• Facility to convert weight into volume & vice versa through microprocessor.
• Pre selection of Blood volume/weight.
• Repeated collection of previous Blood volume by Memory.
• Automatic zero volume calibration of Blood bags.
• Display of flow rate & audiovisual alarm in case Blood flow is higher or lower than preset values. (Minimum 20ml/Min, Maximum 180 ml/Min.)
• Automatic termination of Blood collection when Blood volume collected equals preset volume.
• Pause function for temporary stopping of Blood collection in between.
• Display of Blood volume/weight being collected during process.
• Display of total time taken for Blood collection.
• Operated on Mains 220-240 volts (Portable Model Operating on 12v/24v Battery also available)

TOP



CRYO PRECIPITATE BATH


CRYO PRECIPITATE BATH (CB-704)
Cryoprecipitate bath Model CB-704 is used for quick thawing of plasma at + 4Ί C and improves yields over conventional air thawing methods. Cryoprecipitate bath is fabricated out of sheet steel with a stainless steel inner chamber. Refrigeration is achieved by means of hermetically sealed compressor. The temperature is controlled by a digital indicator cum controller.

Special Features

• Suitable for 15 plasma bags with rack holder.
• Direct digital temperature indicator cum controller.
• Stainless steel AISI 304 tank resistant to corrosion.
• Circulating pump to ensure uniform temperature within the bath.


TECHNICAL DATA



Model CB-704
Operating temperature

+4Ί C
Circulation S.S.pump
Capacity 15 plasma bags


Supply:
230 Volts Single Phase 50Hz. AC

Note
Use of JASHBIN make or any good quality 3KVA servo controlled voltage stabilizer is a must for CB-704, guarantee invalid in case of non use of voltage stabilizer.

TOP

C

CABINET DESSICATER CHROMATOGRAPHY PAPER DRYING OVEN CRUCIBLE FURNACE CONSTANT TEMP. CIRCULATING WATER BATH
COLONY COUNTER DIGITAL CONDUCTIVITY METER DIGITAL CABINET ULTRAVIOLET CIRCULAR CELL MIXTURE ROTATING
CONSTANT TEMP. WATER BATH WITH MAGNETIC STIRRER CO2 MINI INCUBATOR COD DIGESTION UNIT BLOOD BANK REFRIGERATED CENTRIFUGE
MICRO CENTRIFUGES RESEARCH COMPUFUGE MICROFUGE REVOLUTIONARY HIGH SPEED TABLE TOP CENTRIFUGE
TABLE TOP RESEARCH CENTRIFUGE OIL CENTRIFUGES CHEMICAL BASKET CENTRIFUGE SPECIAL PURPOSE CENTRIFUGES
GENERAL PURPOSE LABORATORY CENTRIFUGES Colorimeter ULTRA CRYOSTAT CONSTANT TEMPERATURE BATHS

DESSICATOR CABINET :

Made of thick aluminium / stainless steel sheet with stout glass door having two perforated shelves.

Size : 12”H x 20 W x 14” D with aluminium Frame

Size : 12”H x 20 W x 14” D with S. Steel Frame



TOP

CHROMATOGRAPHY PAPER DRYING OVEN :

THIS OVEN USED FOR DRYING FOUR (4) CHROMATOGRAPHY PAPER. SIZE: 18.Ό” X 22.½” AT A TIME .DOUBLE WALL OUTER MADE OF MILD STEEL DULY PAINTED .TEMPERATURE UP TO 110 DIG C CONTROLLED BY THERMOSTAT. DOOR IS FITTED WITH HEAT RESISTANT GLASS ENABLING VISIBILITY OF CHROMATOGRAPHS WHILE BEING DRIED. A VENT TOP IS PROVIDED ON TOP WITH WHEN CONNECTED TO WATER TAP WITH FILTER PUMP FACILITIES REMOVAL OF SOLVENT AND CONSEQUENTLY QUICK DRYING.

AVAILABLE IN Inside Made of Alumininum, Stainless Steel, EXTRA  Digital display / controller

TOP

CRUCIBLE FURNACE :

Crucible Furnace has a maximum Temperature of 9000C suitable for laboratory use.The heating chamber is high quality moulded refractory tube with the heating element Nicrome wire (80/20 Best Quality) wound on the outside. It is insulated from the outer sheet steel body by high grade thermal insulating bricks and powder. Furnace has a hinged Regulator. Electrically operated, rating 750 watt at 230 volts AC single phase.

Size : 4” Dia x 4” Height with Pyrometer & Chromel Alum Thermocouple in ceramic sheath with one meter compensating cable with energy regulator. Main & pilot lamp, Plug etc.

Built in portable mild steel case painted attractively.

TOP

CONSTANT TEMPERATURE – CIRCULATING WATER BATH:

DIGITAL DISPLAY INDICATING CONTROLLER BUILT-IN BATH.  RECTANGULAR IN SHAPE INSIDE RESERVOIR IS MADE OF STAINLESS STEEL FINISHED IN STOVE ENAMEL ATTRACTIVELY.  IN BETWEEN WALL IS FILLED WITH GLASS-WOOL. A CIRCULATORY FHP MOTOR PUMP WITH STIRRER IS MOUNTED ON TOP AND FITTED ON ONE SIDE OF THE BATH.  TEMPERATURE RANGE AMBIENT TO 1000 C PROVIDES MOST SENSITIVE CONTROL BY A DIGITAL +  0.50 C ACCURACY. HEATING IS BY PERMANENT HEATER AND ONE BOOSTER HEATER. CONTROL GEAR CONSISTS OF SWITCHES FOR MOTOR AND HEATERS, ETC.

WORKING SIZE   12”L X 10”W X 8” H        1.5 KW RATING

                              15”L X12”W X 10” H       2 KW RATING

full made of acrylic transparent (clear) Size 10” x 10” x 10”

TOP

COLONY COUNTER ELECTRIC DIGITAL DISPLAY :

                        A)    The housing is constructed with heavy gauge mild steel & finished attractively. A counting plate with wolf-hugel ruling is fitted with magnifying glass on front slope. A special pen type probe allow marking and counting simultaneously .counting is registered on a four digit, resettable DIGITAL COUNTER .A fluorescent light provided uniform day light illumination.

                        B)     ………Do………made of acrylic body.

                        C)    ………Do………ordinary electric mild steel body powder coated

COLONY COUNTER



COLONY COUNTER(RCC-01)

Desk type Digital Colony Counter is specially designed for fast and fatigue free counting

Salient Features
Circular tube and powerful magnifying lens reduce operator fatigue.
Streamlined design ensures fast and accurate count up to 9,999
Specially designed 'Auto Mark' pen for marking and counting simultaneously.
LED display with audio beep at every count.
Woulffhuegel grid glass plate

Power supply: 220V 50 Hz.



TOP

DIGITAL CONDUCTIVITY METER

TECHNICAL SPECIFICATIONS: MEASURING RANGE:0.01Ms/cm-199.9MS/CM (DEPENDING ON THE CELL USED 0.1/1.0/10.0K)

RESOLUTION:0.01(DISPLAYED) ACCURACY:-0.5%

TEMP RANGE:0-99.90 C RESOLUTION:0.10C

RELATIVE ACCURACY:+/- 0.20C SENSOR : RTD PT 100 TEMP.

COMPENSATION: AUTOMATIC REPORT FORMAT:

(a) REPORT OF SELECTED CONDUCTIVITY READING

(b) CALIBRATION REPORT

(c) DATA TABLE& GRAPHS (OPTIONAL) INPUT:2-BANANA SOCKET FOR

CONDUCTIVITY ELECTRODE, 1-ATC-PT100

OUTPUT: PRINTER (PARALLEL) AUTOSTAND (OPTIONAL)

ENVIRONMENTAL OPERATING CONDITIONS:

(a) OPERATION : INDOOR

(b) POWER REQUIREMENT:230VAC+/- 10% , 50HZ

0-1.999 MICRO SIEMEN TO 199.9 MILLI SIEMEN

CONDUCTIVITY CELL K=1.0

PLEASE SEND THE DETAILS FOR MORE INFORMATION.



TOP



ULTRA CRYOSTAT CONSTANT TEMPERATURE BATHS




ULTRA CRYOSTAT CONSTANT TEMPERATURE BATHS
(CB-701/702)


These Constant Temperature Baths are designed to carry out research work at desired temperatures with a high degree of accuracy. These are with a stainless steel chamber having capacity of 12 litres.

The temperature is controlled by a digital temperature controller - cum - indicator. Fine tuning of the heating system ensures high accuracy within a limit of ± 0.2ΊC.

Provided with a stirrer to ensure uniform temperature within the bath. The units can be operated continuously and are equipped with bottom discharge.
Model   CB-700 CB-701 CB-702
Temperature Range ΊC 0 to +40 -20 to +40 -30 to +40
Accuracy of control ΊC ± 0.2 ± 0.2 ± 0.2
Bath Opening mm 230 x 200 230 x 200 230 x 200
Effective bath depth mm 180 180 180
Dimensions (WXDXH) mm 430 x 620 x 770 820 x 620 x 690 820 x 620 x 690
Heater power Kw 1 1 1.5
Weight

Supply 230 Volts 50Hz. AC.

OPTIONAL :Circulation Pump Capacity 10/20 Ltrs, per Minute at 2 mtr.                   Water column.

Notes:


1 Unit similar to above models but with maximum temperature of + 100ΊC are available on request.
2 Use of JASHBIN make or any good quality 3 KVA servo controlled voltage stabilizer is strongly recommended. Guarantee invalid in case of non use of voltage stabilizer.


Also available microprocessor controlled Constant Temperature Bath with RS 232 interface.





TOP

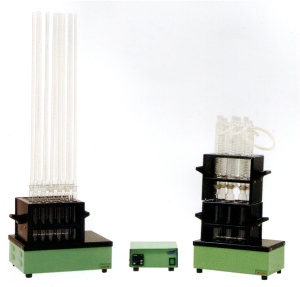

COD DIGESTION UNIT:



JASHBIN brings to you the state of the art indigenously designed, engineered and manufactured , digestion unit for analysis of chemical oxygen demand (COD) by reflex method in water, waste water, sludge etc.

The equipment uses the classical method of oxidation of samples, by refluxing with sulphuric acid and potassium dichromate reduced from the amount of dicromate reduced and is expressed in milligrams of oxygen consumed per liter of sample.

Features :

bullet

Complete with aluminium alloy heater block, one set of digestion tubes, tube holder, heat deflector plates, one set of air cooled condensers or water cooled condensers, and boiling rods.

bullet

The digestion tubes are provided with ball joint in case of water - cooled condenser and ground joint in case of air cooled condenser.

bullet

Highly efficient condensers to facilitate good reflux.

bullet

Simultaneous handling of 12, 20, 40 samples in 100 ml tube and 6, 12, 20 samples in 250 ml tubes for both air cooled and water cooled condenser reflux systems .

bullet

Uniform and fast digestion of samples with digestion time around 2 hours typically.

bullet

Precise temp. controlled by means of remote PID controller with time setting between 1 - 9999 minutes for the digestion process.

bullet

Digestion temp. ranges from 40 - 4500C.

bullet

Can also be used for digestion process in Kjeldahl and Trace metal analysis.

bullet

Electrical requirement is 230 V, 50 Hz single phase AC.



TOP

ULTRAVIOLET INSPECTION CABINET SINGLE WAVE : LENGTH :

For viewing and separated substance on T.L.C. Layer fitted with long wave length at Max. radiation 365 mm provided with magnetic latch door to ensure maximum shielded external light. Made of mild steel sheet attractively painted

Full made of thick 6mm acrylic sheet

ULTRA VIOLET INSPECTION CABINET DUAL WAVE – LENGTH :

Fully made shock –proof with dual wave length range for viewing at short wave length [254 nm] and long wave length [265nm] with one extra visible day light having individual switch to operate the desire wave length working on 230 Volts 50H2AC Supply . But without filter made of mild steel attractively epoxy painted

…Do.. Full made of thick 6mm acrylic sheet

TOP

ROTATING CIRCULAR CELL MIXTURE :

The cell mixer was designed for the mixing of cells and for the use in extraction producer . Tubes are located in the detachable drum which may also be used as a rack and it is driven at a variable speed of 10 to 60 rpm. The inclination of the tubes can be varied from 100C to 900C with horizontal for vigorous agitation Drum & End To End mixing type rotor head made of stainless steel plates stainless steel tubes holders. Suitable for blood agitation and assay preparation.

TEST TUBE ROTATOR :

For holding number of test tubes each tube will rotate in vertical plain perpendicular to the axis of rotation at variable speed of approx 5 to 25 revaluations per minute for end to end mixing



TOP

CONSTANT TEMPERATURE BATH WITH MAGNETIC STIRRER :

Magnetic stirrer with 2 lit having liquid heating bath

 For 2,4,6,or 8 Stirrer  capacity is also available

TOP

MINI CO2 INCUBATOR

The complete set up consists of two parts i.e., a compact specially designed incubator with a high performance Digital Display temperature control with +- 0.10C accuracy and a CO2 gas mixing module comprising a compressor delivering oil free air with pressure cut-out and dehumidifier. The  output from a standard CO2 cylinder is mixed with the air to give a constant supply comprising 5% CO and  95% air. The output from this module is connected to incubator. The complete assembly is supplied with 2 stage pressure regulator, necessary tubing so as to constitute a low-cost CO2 incubator for critical application like IVF and tissue culture work. Digital Display Controller Build-in inner door glass/acrylic. Inner chamber made of stainless steel 316 quality and outer body is mode of mild steel epoxy resin coated for durability.

SIZE :

TOP



Colorimeter







Colorimeter(RMC-01)
JASHBIN Microprocessor based colorimeter are easy to use, accurate, direct reading, Photoelectric colorimeter, useful for a variety of colorimeteric analysis, Light from a Broad spectrum LED is focused through a unique optical system through the filter & test tube onto the photocell. Output from the photocell is fed to an amplifier and microprocesor based display unit which automatically calculates the K factor when in Calibration mode. The display is controlled by a soft touch Membrane keyboard. Filters are mounted on a disc and are easily selectable. The light nitensity is controlled by an aperture to enable setting of full scale.

The display is adjusted to read zero optical to density or 100% transmission with the appropriate filter in position and a test tube containing the blank in the light path, by adjusting the aperture. The blank is then replaced by a standard. The display can then be set to read the values of the standard by calibrating the unit with in the concentration scale. Further test solution can then be directly read for their value.

Salient Features:
Microprocessor control with digital LCD display of direct reading
Modes with range: 0-100% T, 0-1.999Abs & 1-1000 Conc.
Optical filter: 8 filter
Wavelength range: 340 nm - 1100 nm
Sample volume1.0 ml
Auto zero function, RS 232 interface cable
Light source: Tungsten Halogen Lamp


Power Supply : 220 V AC, 50-60Hz

Also available UV / Visible spectrophotometer



TOP





MICRO CENTRIFUGES



MICRO CENTRIFUGES (RM-12 / RM-12C)

With these Micro Centrifuges now doctors and scientists can spin down small samples with sturdy direct drive generating centrifugal force, which can allow separation of fluids in less than a minute.

These Centrifuges are ideal for growing RIA (Radio Immunoassay demands). Can be used for routine application in biochemical and clinical labs. For Hematocrite, Corpuscle percentage content in blood, serum analysis and precipitate separation also.

Besides a 0-15 minutes timer which is common to these Centrifuges stepless speed regulator make Micro Centrifuges range of applications more broad based, allowing to do a job at preferred speed. A wide range of heads gives preferred G.

RM-12C has additional digital speed meter continuously indicating the speed in RPM.


Optional:
Dynamic Break
Lid safety lock
Adaptors for various micro tubes

TECHNICAL DATA
Models   RM-12 / RM-12C
Max. Speed rpm 16000
Max. rcf g 18500
Width mm 280
Depth mm 330
Height mm 300
Connected Load KVA. 0.35

ROTOR HEADS LISTING

Models Capacity Max. Speed
RPM
Max. RCF G
RM-1210 Micro Hematocrite Rotor 12000 15250
  Choice of 2 types of Rotor for :
  (1) 24 Capillaries of size
  75 mm x 1 mm bore
  (2) 12 Capillaries of QBC-II
  Plus System
  (Specify While ordering)
RM-1211 Haperinised Capillary Tubes - -
  Of 75 mm length x 1 mm bore
RM-1213 Reading Device for RM-1210 - -
Horizontal Heads
RM-1210 WITH RM-1221 18 x 1.5 mm 12000 9800
RM-1220 WITH RM-1222 48 x 0.4 mm 10200 8000
Angle Heads with Glass Tubes
RM-1231 12 x 0.5 mm 16000 17200
RM-1232 10 x 1 ml 16000 17200
RM-1233 8 x 2 ml 16000 17200
Angle Heads with Polypropylene Tubes (Tapper Bottom)
RM-1241 30 x 0.4 ml 11850 12700
RM-1242 24 x 1.5 ml 11850 12700
RM-1243 16 x 1 ml 11850 12700
RM-1244 8 x 3 ml 11850 12700

Angle Heads with polypropylene Tubes (Round Bottom)
RM-1251 8 x 3 ml 11850 12700
RM-1252 8 x 4 ml 11850 12700
RM-1253 6 x 5 ml 11850 12700
RM-1261 8 x 2 ml (Tubes with Cap) 15000 18500

(special Angle Rotors with various Eppendorf & micro tubes can be supplied against request)

Supply: 230V Single Phase 50Hz.AC




TOP





RESEARCH COMPUFUGE








RESEARCH COMPUFUGE (PR-23)



JASHBIN Compufuge provides all the performance and convenience necessary to keep your projects moving right at your lab bench.
JASHBIN Compufuge Model PR-23 is a Microprocessor controlled centrifuge with softouch key-pads and 10 programme memory, having facility to preset and memorise RPM, Time and Brake.
Advanced manufacturing technique is used for resilient mounting of the heavy duty drive motor, resulting in low level of vibrations and noise.
JASHBIN Compufuge Model PR-23 is capable of handling high volume of tubes upto 200 ml to low volumes of 5 ml. This Compufuge can also accomodate 96 wells Microtiter Trays. With wide choice of Rotor heads and adaptors, these unit is truly versatile.

Salient Features
• Menu driven 10 Programme memory, easy to set the compufuge for   various applications
• Accuracy of speed withing ± 10 RPM of set value
• Simultaneous disply of Set and Run Parameters
• Choice of Brake Profiles - High, Low and Coasting
• Automatic Cutoff for imbalence condition
• Automatic door interlock system



TECHNICAL DATA


Models   PR-23
Max Speed rpm 7000
Max rcf g 7400
Max tube size ml 200
Max capacity ml 1200
Width mm 425
Depth mm 460
Height mm 465


Net Weight :

ROTOR HEADS LISTING


Models Capacity Max. Speed RPM Max. RCF G Net Weight
Swing out Heads (with Glass Tubes)
Swing out Heads (with Glass Tubes) 4 x 200 ml 5100 5000
R-230 with R-232 4 x 100 ml 6000 6450
R-230 with R-233 72 x 5 ml (RIA P.P.Tubes) 5200 4200
R-230B with R-233B 108 x 5 ml (RIA P.P.Tubes) 5100 4100
R-230A 2 x Microtiter Trays 3200 1500
Angle Heads (with polypropylene Tubes)
R-236 6 x 200 ml 7000 7400
R-237 8 x 100 ml 7000 7100
R-238 12 x 50 ml 7000 7100
R-239 36 x 15 ml 7000 7100
Soil Testing Head
R-893 Head for 12 soil Boxes 4000 2300


REDUCTION ADAPTORS (WITH GLASS TUBES)


Adaptor Model No. Fits Head / Carrier No. Capacity Per Adaptor. Total Capacity Per set of Four Net Weight
RA-2311 R-230 with 231 1 x 100 ml 4 x 100 ml
RA-2312 R-230 with 231 1 x 50 ml 4 x 50 ml
RA-2313 R-230 with 231 3 x 30 ml 12 x 30 ml
RA-2314 R-230 with 231 7 x 15 ml 28 x 15 ml


Supply: 230 Volts Single Phase 50Hz. AC





TOP





MICROFUGE


. MICROFUGE (RM-10)
Ideal for separating fluids having varying specific densities. Rapid acceleration shortens running time dramatically making the centrifuge highly efficient and useful for Serum separation or separation of precipitates following deprotelisation in clinical and biochemical laboratories.

The Microfuge, Model RM-10, is a very compact unit, designed to run for any cycle upto 15 minute with the help of timer. Complete body is fabricated out of stainless steel to avoid corrosion and reduce noise level.

A momentary switching arrangement for centrifugation period of under one minute is provided. The pilot lamp blinks once every second when button is pressed, which enables accurate time counting in seconds and is helpful for accurate reproducibility.


TECHNICAL DATA

Capacity 12 Micro tubes of 1.5ml, or 12 micro tubes of 0.4 ml.
Max. Speed 15000 RPM
Max. RCF 16000 g
Overall dimensions (mm) 295x215x275


ROTOR HEADS LISTING


Model Description
RM-1011 12 x 15 ml. Angle rotor complete with tapper bottom polypropylene tubes
RM-1012 12 x 0.4 ml. Angle rotor complete with tapper bottom polypropylene tubes.





TOP



REVOLUTIONARY HIGH SPEED TABLE TOP CENTRIFUGE





REVOLUTIONARY HIGH SPEED TABLE TOP CENTRIFUGE
(R-24)


The R-24 centrifuge is useful for research work in medical, pharmaceutical, industrial and research institutes. It is also suitable for determination of settlement of paints, pastes, cosmetics and food products.

Special features include lid interlock, stepless speed regulator with zero start switch, digital timer, speed meter, dynamic brake, unbalance cut out.


Model
  R-24
Max. Speed RPM 20000
Max. rcf G 33500
Max. Tube size ml 100
Max. Capacity ml 400
Width mm 425
Depth mm 460
Height mm 465
Connected load KVA 0.8
Weight kg


Supply
230 Volts Single Phase 50Hz. AC






TOP



TABLE TOP RESEARCH CENTRIFUGE


TABLE TOP RESEARCH CENTRIFUGE (R-23)

R-23 is the table top refrigerated centrifuge for working with heat sensitive material. The control panel is a separate unit compact and elegant incorporating self illuminated start stop switches, dynamic brake, stepless speed regulator with zero start switch digital speed meter timer and digital temperature controller indicator.


TECHNICAL DATA

Models   R-23
Max Speed rpm 7000
Max rcf g 7400
Max tube size ml 200
Max capacity ml 1200
Width mm 425
Depth mm 460
Height mm 465
Connected load KVA 0.8

Supply: 230 Volts Single Phase 50Hz. AC



Models Capacity Max.
Speed RPM
Max. RCF G
Swing out Heads (with Glass Tubes)
R-230 with R-231 4x200ml 5100 5000
R-230 with R-232 4x100ml 6000 6450
R-230 with R-233 72x5ml (RIA P.P. Tubes) 5200 4200
R-230 with R-233B 108x5ml (RIA P.P. Tubes) 5100 4100
R-230A 2xMicrotiter Trays 3200 1500
Angle Heads (with polypropylene tubes)
R-236 6x200ml 7000 7400
R-237 8x100ml 7000 7100
R-238 12x50ml 7000 7100
R-239 36x15ml 7000 7100
Soil Testing Head
R-893 Head for 12 soil Boxes 4000 2300


REDUCTION ADAPTORS (WITH GLASS TUBES)


Adaptor Model No. Fits Head / Carrier Cat No. Capacity Per Adaptor Total Capacity Per set of Four
RA-2311 R-230 with 231 1x100ml 4x100ml
RA-2312 R-230 with 231 1x50ml 4x50ml
RA-2313 R-230 with 231 3x30ml 12x30ml
RA-2314 R-230 with 231 7x15ml 28x15ml








TOP



OIL CENTRIFUGES






OIL CENTRIFUGES (R-19 / S-19)
The driving motor and the centrifuge chamber has been specially designed to suit the hazardous requirements of oil centrifuge application.

These units are equipped with a smooth speed controller, speed indicator, 60 minutes timer, electric brake, zero start switch and protective fuses.

The standing model S-19 has castors for quick mobility. The model R-19 is a table top version specially developed to conduct all the A.S.T.M, / I.P test with 165mm long glass tubes because of the extensive use of centrifuges of limited chamber diameter.

These centrifuges are developed specially to cover all oil and petroleum test of I.P. and A.S.T.M. listed as follows


ASTM D 91-87 ASTM D1796-83
ASTM D 96-87 ASTM D1019-68
ASTM D 893-85 IP/75-82
ASTM D 483-86




TECHNICAL DATA


Models
  S-19 R-19
Max. speed rpm 1800 1800
Max. rcf g 1000 800
No.of tubes   6 4
Max. Capacity ml 600 400
Width mm 790 530
Depth mm 810 560
Height mm 1090 545
Connected load KVA 0.6 0.5


ROTOR HEADS LISTING FOR S-19


Models Description
S-190 Six place swing out head suitable for S-191 and S-192 tube carriers.
S-191 A set of 6 metal carriers suitable for head Cat. No.S-190 and Pear shaped tubes Cat.No. S-1911
S-1911 A set of six pear shaped glass tubes with rubber cushions having calibration upto 100 ml capacity suitable for use in metal carriers Cat No. S-191 (for Test ASTM-D-96-88)
S-192 A set of 6 metal carriers suitable for head Cat No S-190 and glass tubes Cat No. S-1922 S-1923 and S-1924.
S-1922 A set of six 200mm tapered bottom centrifuge glass tubes with rubber cushions having calibration up to 100 ml capacity suitable for use in metal carrier Cat No S-192 (for test ASTM-D-91-87, ASTM-D-96-88, IP-75-82, ASTM-D-1796-83 & D-893-85)
S-1923 A set of six 225mm sulfonation flask standard Babcock bottles made of heat resistance glass with rubber cushions calibrated and suitable for use in metal carrier Cat No S-192 (for test ASTM-D-483-86)
S-1924 A set of six 200mm modified Babcock bottles made of heat resistance glass with rubber cushions calibrated and suitable for use in metal carrier Cat No S-192 (for test ASTM-1019-86)


ROTOR HEADS LISTING FOR R-19


R-190 Four place swing out head suitable for R-191 & R-192 tube carriers.
R-191 A set of 4 metal carriers suitable for head Cat. No.R-190 and Pear shaped tubes Cat.No. R-1911
R-1191 A set of four pear shaped glass tubes with calibration upto 100ml capacity suitable for use in metal carrier Cat No R-191 (for tests ASTM D-96-88)
R-192 A set of 4 metal carriers suitable for head Cat No R-190 and glass tubes Cat No R-1922, R-1923 and R-1924.
R-1922 A set of four 165mm tapered bottom centrifuge glass tubes with rubber cushions having calibration up to 100 ml capacity suitable for use in metal carrier Cat No R-192 (for test ASTM-D-91-87, ASTM-D-96-88, IP-75-82, ASTM-D-1796-83 & D-893-85)
R-1923 A set of four 165mm sulfonation flask standard Babcock bottles made of heat resistance glass with rubber cushions calibrated and suitable for use in metal carrier Cat No R-192 (for test ASTM-D-483-86)
R-1924 A set of four 165mm modified Babcock bottles made of heat resistance glass with rubber cushions calibrated and suitable for use in metal carrier Cat No R-192 (for test ASTM-1019-86)


Supply 230 volts single phase 50 Hz. AC.






TOP





BLOOD BANK REFRIGERATED CENTRIFUGE



BLOOD BANK REFRIGERATED CENTRIFUGE (KB-70)

Blood Bank Centrifuge Model KB-70 is a high-speed refrigerated centrifuge designed for blood centrifugation work and is ideal to obtain packed cells platelet rich plasma platelet concentrate or cryoprecipitate. Also useful for many other blood bank procedures e.g. preparing buffy coat leukocyte poor blood clarifying fresh frozen plasma etc.

Features:

• Digital speed indicator.
• Stepless speed regulator with zero start switch.
• Digital automatic timer 0-59 mts
• Dynamic brake.
• Unbalance cut out switch
• Brush wear indicator
• Castors for full mobility
• Electrical lid-interlock


ADDITIONAL FEATURES OF KB-70


• Digital temperature indicator cum controller
• Hermetically sealed Refrigeration Unit
• Key operated mains switch


The main unit is built on a sturdy metal frame resting on castors and enclosed by sheet most removable panels finished in corrosion resistance paints. The centrifuge lid has an electrical interlock to ensure that the unit cannot be run with cover open.

Advanced manufacturing technique is used for resilient mounting of the heavy-duty drive motor resulting in low level of vibrations and noise. The drive motor and hermitically sealed refrigerating compressors are located under the insulated rotor compartment. These are resiliently supported on sturdy frame.

The electronically controlled digital timer has setting range of 0-59 minutes with setting for continuous operation.

The temperature is controlled and indicated by Digital Temperature indicator-cum-controller with setting range of -20Ί C to + 40Ί C.


Rotors and Accessories:


• Choice of 3 swing out rotors with number of metal carriers & rubber adaptors
• Choice of 6 angle rotors.
• High speed attachment with choice of 4 different rotor head.


Technical Data:


Models    KB-70
Max. speed RPM 4800
Max. rcf G 6050
Max speed with high speed attachment. rpm 18000
Max. rcf g 27200
Width mm 820
Depth mm 930
Height mm 1170
Lowest Temperature °C -5
Connected load KVA 3.2


Supply: 230 volts single phase 50 Hz AC.

Weight:

Note: Use of JASHBIN make or any good quality 3KVA servo controlled voltage stabilizer is strongly recommended for KB-70. Centrifuges Guarantee invalid in case of non use of voltage stabilizer.

  ROTOR HEADS LISTING

Model Description KB-70
Blood Bank Application Rotors, Carrier and Adaptors Max. Speed RPM Max. RCF.
'g'
K-711 6 place wind shield swing out Rotor suitable for carriers listed below:
K-712 A set of 6 metal carriers each with a capacity of 1000 ml; suitable for blood bags for use with swing out rotor cat no K-711
K-712B/6 A set of 6 rubber carriers suitable for standard Blood Bags (Blood Bags not supplied) for use with metal carriers Cat No.K-712 4000 4800
KI-719/6 A set of 6 multiple carriers for use with rotor Cat No. K-711 each with a capacity of 40x5 ml (RIA) complete with 240 nos. RIA polypropylene tubes. 4000 4800
K-7121 4 place wind shield swing out rotor suitable for carrier listed below
K-722 A set of 4 metal carriers each with a capacity of 1000 ml; suitable for blood bags for use with swing out rotor cat no K-721
K-722B/4 A set of 4 rubber carriers suitable for standard Blood Bags (Blood Bags not supplied) for use with metal carriers Cat No.K-722 4800 6050
KI-719/4 A set of 4 multiple carriers for use with rotor Cat No. K-721 each with a capacity of 40x5 ml (RIA) complete with 160 nos. RIA polypropylene tubes. 4800 6050



TOP





CHEMICAL BASKET CENTRIFUGE


CHEMICAL BASKET CENTRIFUGE (B-4L)
It consists of stainless steel inlet for continuous feeding, stainless steel draining chamber with outlet pipe, variable speed regulator and perforated basket.

ROTOR HEADS LISTING:

B-4L Chemical Basket Centrifuge with Stainless Steel Chamber, Speed Regulator but without Basket
B-41 Perforated Stainless Steel Basket.

TECHNICAL DATA


Maximum Speed 5000 r.p.m
Maximum RCF     3150 g
Basket Capacity 4 Ltrs.
Overall Height 490 mm
Weight


Centrifuge Basket


Diameter 220 mm
Height 130 mm


Supply 230 volts single phase 50 Hz. AC.





TOP



SPECIAL PURPOSE CENTRIFUGES




SPECIAL PURPOSE CENTRIFUGES (R-8K)

R-8K has been designed specifically to suit the following special applications:



1 Testing Diesel Fuel Fliters for determination of Dust concentrate as per IS:3351:1991: Mainly useful for fuel filtrs manufacturers for testing filters made by them and diesel oil consumers like Railways, Locomotive works, Industries using diesel engines or generating sets for testing the purity and suitability of the oil.
2 Test of Infant Milk Food as per IS:1547:1985. For determination of solubility index in infant Milk Foods, Useful for Infant Milk Food manufacturers.
3 For determination of Insolubility Index of dried milk and dried Milk products as per IS:12759:1989- Ideally suitable for dairy Milk product manufacturers.
4 For determination of Sulphates in Chrome solution : suitable for chrome platers and industries having in-house chrome plating plants.


R-8K Centrifuge has Speed Regulator digital Timer and speed meter.


TECHNICAL DATA


Max. Speed RPM 4000
Max. rcf g 4200
Width mm 410
Depth mm 460
Height mm 315
Weight kg

Supply: 230 volts single phase 50 Hz. AC.

ROTOR HEADS LISTING


Models Description
R-80 4 place swing out Rotor complete with glass tubes suitable for determination of Dust Concentrate in Diesel Fuel Filters.
R-86 4 place Swing Out Rotor complete with glass tubes suitable for determination of solubility index in Infant Milks Foods.
R-86A 4 place Swing Out Rotor complete with glass tubes suitable for determination of solubility index of dried milk and dried milk products.
R-87 4 place swing Out Rotor complete with glass tubes suitable for determination of sulphate in Chrome plating solution.










TOP



GENERAL PURPOSE LABORATORY CENTRIFUGES





GENERAL PURPOSE LABORATORY CENTRIFUGES
(R-8C plus)
This new generation of highly developed micro processor based centrifuge, R-8c plus is designed to handle various capacity of samples up to 400ml.

These centrifuges are ideal for use in pathological laboratories and other modern laboratories for performing various separation tasks.

A unique Brushless motor fitted provides better speeds, longer carbon brush life and less sparking. These centrifuge are With soft touch key pad for fast and accurate setting of run parameters. Basic runs are easy. Just set the speed, time and brake mode. Press "Start" key and centrifuge does the rest for you. All the parameters are digitally displayed.

The centrifuge lid has safety interlock to ensure that the rotor does not run with cover open while cover cannot be opened unless rotor comes to a complete halt.


Salient Features:
Brushless motor maintanence free
Spped range 500-5500 rpm with accuracy of 100 rpm
Preset of desired rpm.
Soft start to prevent spillage in swing out heads.
60 minutes count down timer.
Safety lid interlock to prevent cover opening during centrifugation.
Imbalance detector with indicator & Brake.
Stable speed irrespective of change in supply voltage.
Dynamic brake for quick deceleration.


TECHNICAL DATA

Max.Speed RPM 5500
Max.RCF 'g' 4350
Max Capacity ml 400
WXDXH mm 340 x 375 x 300

Supply 230 Volts, Single Phase, 50Hz AC/DC






D

DRYER GLASS WARE DESSICATER CABINET DRYING OVEN CHROMATOGRAPHY PAPER DRY POT WATER BATH
DRYER PIPETTE ELECTRIC KJELDHAL DIGESTION  AND DISTILLATION UNIT DRUM HEATER VERTICAL INDUSTRIAL DRAINING AND DRYING RACK

alcohol distilling unit

BLOCK DIGESTION UNIT FOR COD ANALYSIS

BLOCK DIGESTION UNIT FOR KJELDAHL ANALYSIS MANUAL KJELDAHL DISTILLATION UNIT

GLASS-WARE DRYER

For convenient and rapid drying of laboratory glass ware a powerful electrically driven blower forces air through twelve stainless steel Tubes. Heating elements are provided to heat the blowing air which is fitted at the intake energy regulator controls the heater element

TOP

KJELDHAL DIGESTION  AND DISTILLATION UNIT :

One single mild steel tubular is provided with two heating shelves one above the other Open spiral element heater are fixed in a box foe keeping up to 800ml . Kjedhal flasks. Available in ON/OFF Switch & with energy regulator

Number of flasks 3, 4, 6.

TOP

INDUSTRIAL DRUM HEATER VERTICAL :

Suitable for standard size drum, 45 gallons (200ltr) for clean & economically way for the handling of viscous or low melting point solidified Material in drums .such as asphalt Bitumen Fats Gelatin Glucose Grease Lubricating Oils Paints Petroleum Jelly Phenol Etc.

Max. Temp.

Rating

Max. Temp.

Base Heater

2kw

-

Vertical

6kw

2500C

Vertical

12kw

5000C

TOP

DRAINING AND DRYING RACK :

Made of stainless steel with 90 pins to hold 90 assorted glassware for drying. Can be used in three positions laying down, hung on wall, or standing upright.  Appro. dimensions 50 H x 50 W x 18 D cms

TOP

BLOCK DIGESTION UNIT FOR COD ANALYSIS

JASHBIN presents state of the art indigenous THERMOKJEL COD   digestion unit for analysis of  Chemical Oxygen Demand(COD) by Reflux Method in water, wastewater sludge etc.

The equipment uses the classical method of oxidation of samples, by refluxing with sulphuric acid and potassium dichromate. The Chemical Oxygen Demand is deduced from the amount of dichromate reduced and is expressed in milligrams of oxygen consumed per litre of sample.

Features


bullet

Complete with aluminum alloy heater block, one set of digestion tubes, tube holder, heat deflector plates, one set-cooled condensers,tube holder, heat deflector plates, one set of air-cooled condensers or water-cooled condensers, and boiling rods.

bullet

The digestion tubes are provided with ball joint in case of water-cooled condenser and ground joint in case of air-cooled condenser.

bullet

Highly efficient condensers to facilitate good reflux.

bullet

Simultaneous handling of 12,20,40 samples in 100 ml tubes and 6,12,20 samples in 250 ml tubes for both air-cooled and water-cooled reflux systems.(as per ordering information)

bullet

Uniform & Fast digestion of samples with Digestion time around 2 hours typically.

bullet

Precise temperature control by means of remote PID controller with time setting between 1 – 9999 minutes for the digestion process.

bullet

Digestion temperature ranges from 40-450 °C.



bullet

Can also be used for digestion procedures in Kjeldahl acid trace metal analysis

bullet

Electrical requirement is 230 V, 50 Hz Single phase AC.




Power Consumption


  1000 W for TK 506 & TK 312 models.
  2000 W for TK 512 & TK 320 models.
  3000 W for TK 520 & TK 340 models.




Ordering Information

Air-Cooled Reflux Systems
6 Places
12 Places
20 Places
40 Places
Micro (100 ml)
-
TK 312AC TK 320AC TK 340AC
Macro (250 ml) TK 506AC TK 512AC TK 520AC
-

Water-Cooled Reflux Systems
Macro (250 ml) TK 506WC TK 512WC  TK 520WC
-




TOP

BLOCK DIGESTION UNIT FOR KJELDAHL ANALYSIS

Features
bullet

Homogenous and fast digestion of samples.

bullet

Custom-built high-density cartridge heater made of stainless stell.

bullet

Special aluminum alloy block that ensures homogenous heating through out.

bullet

Optimum clearance between digestion tubes and walls of the wells.

bullet

Sufficient layers of glass fiber and ceramic fiber bound with asbestos sheet used for insulation of the block.

bullet

Remote type, precise digital PID temperature controller with auto-tuning and timer facility.

bullet

Auto-tuner optimizes the value of parameters to maintain temperature accuracy. Timer ensures automatic cutoff of unit after programmed digestion time is complete.

bullet

Multi cycle programmable ramp type PID temperature controller can be optionally provided based an application.

bullet

Specially designed leak proof exhaust manifold assembly made of glass with stainless steel tube holder stand.

bullet

Specially designed stainless steel digestion tube holder. Provided along with chemical & heat resistant Teflon covers for the digestion tubes. provided along with manifold rack.



bullet

Specially designed vapor aspirator pump made of borosilicate glass with teflon drain value, fixed on a nylon board.

bullet

Vapor aspirator tubes made of EPDM monomer.

bullet

Heat deflector plate made of SS316 grade with 1.2 mm thickness.

bullet

All stainless steel parts are powder-coated.

bullet

Available with acid fume neutralizer SCRUBBER ES 50 as an optional accessory.

Specifications



S. No.

Parameter
Thermokjel Series
1 Sample size Up to 5 gm / 15 ml relevant to nitrogen content
2 Digestion time 30 – 45 minutes typical.
3 Temperature Range – 40 – 450 °C. Accuracy - ± 0.1°C
Controller - Digital PID controller with thermocouple sensor.
Seating - Sensitive touch Keys
Indication - Digital LED display.
4 Time Setting Programmable between 1 – 9999 minutes.
5 Heating Block Special Aluminum alloy.
6 Electrical requirement 230 V, 50 Hz Single phase AC.


Ordering Information


  TK 312DC TK 320DC TK 340DC TK 506DC TK 512DC TK 520DC
No. of Samples 12 24  40 6 12 20
Tube Capacity in ml 100 100 100 250 250 250
Tube dimension in mm 26x300 26x300 26x300 42x300 42x300 42x300
Power in Watts 1000 2000 3000 1000 2000 3000
Block Dimensions (WxDxH) in mm 350x200x140 360x320x140 420x420x140 340x200x140 400x320x140 460x320x140
Block Weight in Kg
12
16
24
12
19
23
Controller Dimensions (WxDxH) in mm
210x180x125
Controller  Weight in Kg
1.5





Feature of Profiler Controller
Compact temperature controller with full profile capability.
Fuzzy logic tunig to provide best-case approach at the push of a button
4 programs stored; each may have up to 16 segments.
All segments free formable; may have up to 16 segments.
All time base parameters are in hours / mins or mins / sec. delayed start feature.
Delayed start feature.
Power profile recovery feature in case of interruption.
Profile range: choose from 40 - 450 C.
Profile cycling: choose from 1 -9999 or infinite cycles.
Two line high luminosity LED display.
Setting by means of sensitive touch keys.
Input from thermocouple sensor.
Profile controller has options for Alarm, Recorder & RS 485 serial port to connect to PC

Ordering Information



TK 312RC
TK 320RC
TK 340RC
TK 506RC
TK 512RC
TK 520RC
No. of Sampels
12
24
40
6
12
24
Tube Capacity (in ml)
100
100
100
250
250
250

All the other features & specifications are same as the standard THERMOKJEL models.

TOP



MANUAL KJELDAHL DISTILLATION UNIT

Features


bullet Suitable for distillation using 100 ml, 250 ml 500 ml digestion tubes.
bullet Electronic timer for distillation process.
bullet Electronically controlled solenoid valve for cooling water flow, consumed during distillation only.
bullet Alkali addition by means of an easy-to-operate hand lever.
bullet Imported hand lever operated bellows pump for precise, accurate and reproducible volume of alkali.
bullet Imported Oscillating pump for water refilling.
bullet Built-in borosilicate glass automatic steam generator with coil heaters and integrated stand-by mode.
bullet Borosilicate glass splash head and condenser.
bullet Electronic control for low water level and excess temperature in steam generator.

bullet Standby mode to reduce distillation time and to minimize power consumption.
bullet Low-level water indication by LED.
bullet Tube in place safety with LED indication.
bullet Interlocked magnetic safety door with LED indication.
bullet External thumb lever for actuating the tube holder. Hand held tongs provided to handle the digestion tubes.
bullet Additional vent valve to avoid back suction at the end of distillation cycle.
bullet Plastic spill tray.
bullet The unit is provided with all necessary silicone and nylon tubing.
bullet Uses official AOAC procedures for analysis.



Technical Data



S.No Parameter Vapokjel DM 10 (with chosen digestion system)
1 Nitrogen Recovery 99.7 – 100 %
2 Accuracy Highly accurate. Supersedes conventional Kjeldahl apparatus results.
3 Reproducibility ± 1% relative or better.
4 Analysis range 0.5 – 160 mg of nitrogen / 3 – 1000 mg of protein.
5 Distillation time Dial Set between 0-12 minutes.
6 Distillation capacity 10 to 12 samples per hour.
7 Electrical requirement 230 V, 50 Hz Single phase AC, 1500 W
8 Water consumption Automatic (90 liters per hour), Nil when used with JASHBIN CW 120 water saving system,
9 Alkali addition Hand-lever operated bellows pump.
10 Alkali volume Settable between 15 – 50 ml per stroke of lever.
11 Steam generator Made of glass.
12 Steam safety device Pressure relief valve with high-sensitivity.
13 Heater Coil type made of Inconel 600.
14 Temperature control Hydraulic Thermostat.
15 Water level control Electronic controller with four sensor levels
-Common level – normal operational mode.
-High level – Refill pump switched off.
-Low level – Refill pump switched on.
-Very low level – Refill pump as well as heater is switched off.
16 Condenser Made of glass. With 1 large bulb and 14 coils.
17 Distillate collection 25 – 30 ml per minute optimally.
18 Water tank capacity 5 liters.
19 Alkali tank capacity 5 liters.
20 Dimension (W x D x H) 360 x 340 x 780 mm.
21 Weight Approximately 30 Kg.


TOP





E

EXTRACTION HEATER SOXHLET HOT PLATE TYPE EXTRACTION HEATER SOXHLET MANTLE TYPE EXTRACTION HEATER SOXHLET EXTRACTION WATER BATH TYPE ENVIRONMENTAL TEST CHAMBER
ELECTRODE DRYING OVEN ELECTRIC SLIDE WARNING DRYING & EMBEDDING TABLE ELISA STRIP READER

SOXHLET EXTRACTION HEATER HOT PLATE TYPE:

It consist of a mild steel housing painted with gray hammertone, aluminium casted hot plate as per requirements are mounted on top of the housing and can be operated accordingly. Mild steel housing has two aluminium vertical rods with adjustable cross rods on which the glass apparatus can be fixed but supplied without glass-parts

Type

3 Hot Plate

4 Hot Plate

6 Hot Plate

1 with individual on-off switch

Available Available Available

on-off switch & 1 Energy regulator

Available Available Available

with individual Energy regulator

Available Available Available

TOP

SOXHLET EXTRACTION HEATER MANTLE TYPE:

These are ideal heaters for extractors of soxhlet and other types. The unit consists of a compact, rectangular box section of light metal alloy housing the heating elements and built in controls. The flexible and elastic heating element ensure close contact with the flask surface which minimize to breakage of glassware. In case of spillage, solvent which either evaporates or escape through the drain holes, provided under each recess. High thermal insulation of glass wool backing the heating elements, minimize the heat losses.

Cat no.

Capacity in ml.

Nos. of Flask Recess

Nos. of Regulators

Nos. of Switches

Total watts at 230V

A-1

100-150

3

1

3

300

A-2

200-350

3

1

3

450

A-3

500

3

1

3

600

A-4

1000

3

1

3

900

B-1

100-150

3

3

-

300

B-2

200-350

3

3

-

450

B-3

500

3

3

-

600

B-4

1000

3

3

-

900

C-1

100-150

6

1

6

600

C-2

200-350

6

1

6

900

C-3

500

6

1

6

1200

C-4

1000

6

1

6

1800

D-1

100-150

6

6

-

600

D-2

200-350

6

6

-

900

D-3

500

6

6

-

1200

D-4

1000

6

6

-

1800

E-1

100-150

4

1

4

440

E-2

200-350

4

1

4

550

E-3

500

4

1

4

640

E-4

1000

4

1

4

1000

F-1

100-150

4

4

-

440

F-2

200-350

4

4

-

550

F-3

500

4

4

-

640

F-4

1000

4

4

-

1000

SPARE SOXHLET COIL WITH HEATER FLAT TYPE

TOP

SOXHLET EXTRACTION HEATER WATER BATH TYPE:

Rectangular in shape to take flasks up to 250 ml capacity with six holes of 4” dia each. Electrically heated with immersion heater and built in constant level device, supply with necessary horizontal and vertical rods and boss heads but supply without glass parts.

Available in Electric single wall S.S. & Thermostatically double wall S.S.

Capacity 3 flasks, 4 flasks, 6 flasks

Above can be fitted with digital display Temperature controller cum indicator

TOP

ELISA STRIP READER


ELISA STRIP READER (ESR-01)

JASHBIN ELISA Strip reader is specially designed with state of art technology. It is a fully automatic micro processor based instrument having sophisticated algorithm to analyze blood serum for various viruses like HIV, Hepatitis etc.

It is Rugged, Versatile and economical instrument with user friendly-software. JASHBIN Elisa Strip Reader is a fully open system & supports all the reagents.

Specifications:

Linear measurement range : 0.000 to 3.0A
Photometric accuracy         : ± 1.5% from 0 to 1.5A
± 2% from 1.5A to 3.0A




Filter types Interference
Wave length              : 405nm, 450nm, 492nm, 630nm
Half band width          : 10nm, ±2nm
Light source               : Tungsten Halogen 6 volts, 10 watts
Warm up time            : 45 secs
Speed                       : 45 secs for 12 wells
Display (Back lit LCD) : LCD, 16 characters per line
Power                        : 90 to 270 volts 50 watts


SOFTWARE FEATURES :



• Programming modes :
1. Absorbence bode
2. Single standard mode
3. Multi standard mode
4. Cut off mode
5. Percent absorbence mode
• Stores 35 test with graph
• Recalling of stored test parameters
• Curve plotting : * Linear mode * Point to point mode * Log to Log, Log to Conc., ABS to Log, Log it to Log.
• Interpretation of results
• Quality checking of controls
• Printing of doctor / Lab names in reports
• Operating temperature : 18 to 37ΊC.
• Printer - External (optional) : Standard IBM compatible dot matrix
• Dimensions : WXDXH
316 mm x 346 mm x 103 mm
• Weight (Approx) : 6.250 kg


SPECIAL FEATURES :


• Built in stabilizer
• Support less then 8 wells
• Pause mode to use the reader without printer
• Light weight sleek elegant and portable
• Modular design and low maintenance cost

Supply 230 Volts 50Hz. AC.

TOP



HUMIDITY CONTROL OVENS

(ENVIRONMENTAL TEST CHAMBERS)

DOUBLE WALLED, INTERIOR MADE OF STAINLESS STEEL, EXTERIOR OF MILD STEEL FINISHED IN POWDER COATING EPOXY PAINT. GLASS WOOL INSULATION. FULL LENGTH INNER GLASS DOOR AND OUTSIDE METAL DOOR WITH MAGNETIC GASKET AND LOCK TWO PERFORATED REMOVABLE TRAYS ARE PROVIDED OF STAINLESS STEEL. UNIT CONSISTS OF MAIN SWITCH, WITH FUSE (MCB) DIGITAL DISPLAY MICROPROCESSOR BASED TEMPERATURE HUMIDITY CONTROLLER. HUMIDITY DIRECTLY DISPLAYED IN % RH. MEASURED BY CAPACITANCE TYPE ELECTRONIC HUMIDITY SENSOR. HUMIDITY BY STEAM INJECTION. FORCED AIR CIRCULATION FOR UNIFORM TEMPERATURE. COOLING BY HERMATICALLY SEALED COMPRESSOR COUPLED WITH EVAPORATION AND CONDENSER, SAFE GUARDED BY TIME DELAY CIRCUIT. BOILER LOW LEVEL CUT OFF DEVICE PROVIDED. ALARM FOR TEMPERATURE. /HUMIDITY VARIATION THAN SET VALUES. SAFETY THERMOSTAT FOR TEMPERATURE. UNIT WORKS ON 230 VOLTS AC, 50 HZ MAINS SUPPLY.

INNER CHAMBER DIM H X W X D CMS

50C ABOVE Ambient to 600C Temperature Humidity Range : Ambient to 95% RM

Temperature :Range 100C to 600C Humidity Range 40% to 95% Rh

Temperature :Range 200C to 600C Humidity Range 40% to 95% Rh (between 100C to 600C)

70 X 50 X 50

Available

90 X 55 X 55

90 X 60 X 60

90 X 70 X 70

A suitable voltage stabilizer for above all models if require

TOP

ELECTRODE DRYING OVEN :

UNIQUE DESIGN OFFER COMPLETE PRODUCTION TO WELDING ELECTRODES BY PREVENTING DETERIORATION CAUSED BY ABSORPTION OF MOISTURE .THIS OVEN WITH ITS THERMOSTATIC CONTROL ,COULD BE USED AS A DUAL PURPOSE CABINET. SET AT A LOWER TEMPERATURE IT COULD BE USED AS AN ELECTRODE STRANGE CABINET, WHILE AT A HIGHER TEMPERATURE IT COULD SERVE FOR THE RECOVERY OF ELECTRODES STORAGE CABINET, WHILE AT A HIGHER  TEMPERATURE IT COULD SERVE FOR THE RECOVERY OF ELECTRODES WHICH MIGHT HAVE BECOME “WET” DOUBLE WALLED STEEL CABINET OUTER PAINTED WITH 2” GLASS WOOL INSULATION. FIVE SHELVES FORMED BY M.S. ROUND BARS OF ½ “DIAMETER (THREE FOR EACH SHELF). PLACED AT A DISTANCED OF THREE INCHES PROVIDE STORAGE SPACE FOR WELDING ELECTRODES. TEMPERATURE RANGE FROM 500C TO 2500C +- 50C ACCURACY.

 SIZE: 18” H X 18“ W X 20” L                 RATING 2 K.W.

PORTABLE ELECTRODE DRYING OVEN:

THERMOSTATICALLY CONTROLLED. MAXIMUM TEMPERATURE 2500C

CHAMBER DIMENSIONS: 80 MM (DIA) X 460 MM (DEPTH)

                                       62 MM (DIA) X 480 MM (DEPTH)

TOP

ELECTRIC SLIDE WARMING DRYING AND EMBEDDING TABLE:

Size : Base 17” Long x5” width .without regulator

         … Do… with regulator

TOP

alcohol distilling unit

An alcohol distilling unit that is useful for determination of alcohol levels in accordance with official methodologies prescribed by EEC, AOAC etc.


Features

bullet Distillation unit with a 1500 W borosilicate glass steam generator.
bullet Suitable for 250 ml, 500 ml and 750 ml distillation tubes.
bullet Cooling water consumed during distillation only.
bullet Automatic distilled water addition with automatic level controller,
bullet Standby mode - Process ready condition with minimal energy consumption
bullet Controlled by digital circuit for low water level and optimum temperature.
bullet Specially designed borosilicate glass splash head and condenser.
bullet Safety features include LED indicators for tube-in-place, safety door status and low water level.
bullet Additional vent valve to avoid back suction at the end of the distillation cycle.

Technical Data

S.No. Parameter Alcest DB 60
1 Recovery 99.7 – 100%
2 Reproducibility ±1% relative or better
3 Distilling capacity 25 ml / min
4 Distilled water consumption 1.5 litres / hour
5 Distilled water tank 10 litres
6 Power requirement 230 V, a.c, 50 Hz, 1500w
7 Overall dimension (WxDxH) 320 x 320 x 750 mm
8 Weight 32 kg.



TOP





F

FLASK SHAKER RECIPROCATING FOR SOIL TESTING LIGHT WEIGHT MUFFLE FURNACE  CRUCIBLE FURNACE INDUSTRIAL FURNACE
PROGRAMMABLE MUFFLE FURNACE FURNACE INERT GAS FLASK SHAKER GRIFFIN FILTER SEITZ
FLEXIBLE HEATER FLOCULATOR

FLASK SHAKER RECIPROCATING FOR SOIL TESTING

Useful for making soil mixture solution etc. Base made of heavy Mild Steel plate mounted with mtor 1/4 H.P.A.C. shaking mechanism is surrounded by Mild Steel case duly perforated and painted. Shaking Speed can be controlled by Electronic Solid State Speed Regulator provided in with Main Lamp, Switch and wire cord working on 230 V AC.

TOP

LIGHT WEIGHT MUFFLE FURNACE :

Rectangular horizontal electric Muffle Furnace .working Temperature 9300C/12000C complete with control gears bulb Mains Lead wire Thermocouple and Thermal fuse working on 230 Volts AC single phase.

Muffle Size

Rating Watts

Temperature 9300C Maximum

Watts Rating

Temperature, 11500C maximum





Sunvic control & pyrometer

Digital Display control-indicator



Sunvic control & pyrometer

Digital Display control-indicator

9” x 4” x 4”

1600

AVAILABLE

2000

AVAILABLE

10” x 5” x 5”

2000

2500

12” x 6” x 6”

3000

3500

18” x 9” x 9”

6000

6500

SPARES MUFFLE WITH COIL :

With coil wounded with heating element and embedded with heat resistance ceramic fibre wool insulation and extra long terminals for easy wiring

Muffle

Rating

Temperature 9300C

Muffle Size

Rating

Temperature 11500C

9”x4”x4”

1.6 kw

AVAILABLE

9”x4”x4”

2.0 kw

AVAILABLE

10”x5”x5”

2.0 kw

10”x5”x5”

2.5 kw

12”x6”x6”

3.5 kw

12”x6”x6”

3.5 kw

18”x9”x9”

6.0 kw

18”x9”x9”

6.0 kw

SPARE FOR MUFFLE FURNACE :

a)                  Pyrometer range 250c to 10000C/12000C Rectangular in shape

b)                  Silver Fuse (Thermal Fuse)

c)                  Chromel-Alum Thermocouple…9” long, 10” long, 12” long

d)                  Compensating Cable (Lead Wire)

TOP

CRUCIBLE FURNACE :

Crucible Furnace has a maximum Temperature of 9000C suitable for laboratory use. The heating chamber is high quality moulded refractory tube with the heating element Nicrome wire (80/20 Best Quality) wound on the outside. It is insulated from the outer sheet steel body by high grade thermal insulating bricks and powder. Furnace has a hinged Regulator. Electrically operated, rating 750 watt at 230 volts AC single phase.

Size : 4”Dia x4” Height with Pyrometer & Chromel Alum Thermocouple in ceramic sheath with one meter compensating cable with energy regulator. Main & pilot lamp, Plug etc.

Built in portable mild steel case painted attractively

TOP

INDUSTRIAL FURNACE :

Built in digital display Temperature controller-indicator (AVAILABLE IN BOTH TEMPERATURE 10000C AND 12000C

Size

Rating

1’ x 1’ x 1’

6 kw

1.1/2 x 1.1/2 x 1.1/2

9 kw

2’ x 2’ x 2’

12 kw

3’ x 2’ x 2’

15 kw

3’ x 3’ x 3’

24 kw

4’ x 3’ x 3’

30 kw

Solid State fuse for above

Digital Timer foe above

TOP

PROGRAMMABLE  FURNACE :

New concept in Temperature control. Muffle furnace with unique double decker construction with powder coating and full face door. Maximum Temperature. 12000C and working Temperature. 11500C.

Temperature. is control by microprocessor Base Profile Programmer. This allow user to set different Temperature Vs Time profile. It comprises one programme which has eight steps. Each step can be programmed for 999 minutes. Temperature Accuracy ± 1% of FSD .It also gives user cycle cover alarm. sensor open alarm and unique over Temperature protection. Solid state relay output for switching .not suitable for below 5000C.

Chamber Size (cms.)

Maximum heating rate

23x10x10

150C/Min

30x15x15

120C/Min

45x23x23

100C/Min

Optional :

Centronics Printer interface

TOP

INERT GAS  FURNACE :

Maximum temp 12000C but working temp 11500C especially used for annealing , Sintering, Casting coating in neutral Atmosphere, where oxidation  with air is to be prevented ,supplied complete with  air to be prevented. supplied complete with Digital temp controller pipelines control valves ,flow meter and inlet , outlet nozzles.

Chamber Size (cms.)

23 x 10 x 10

30 x 15 x 15

45 x 23 x 23

TOP

GRIFFIN FLASK SHAKER :

Heavy Mild Steel body is mounted on four vibration absorbing rubber legs. A FHP motor is used. The horizontal spindle is caused to oscillate through a small angle. Flask of 500ml.capacity each can be mounted at any desire angle on the spindle. Continuously variable speed control can be achieved from a gentle motion to a violet agitation.

Capacity

4 Flask

6 Flask

8 Flask

 TIMER 0-60 MINUTES

FLASK SHAKER RECIPROCATING FOR SOIL TESTING :

Useful for making soil mixture solution etc. Base made of heavy Mild Steel plate mounted with motor 1/4H P.A.C shaking mechanism is surrounded by Mild Steel case duly perforated and painted. Shaking Speed can be controlled by Electronic Solid State Speed Regulator provided in with Main Lamp, Switch and wire cord working on 230 V AC

ROTARY SHAKER :

Ideal for shaking solution in Erlen Meyer Flask. It is sturdy Mild Steel angle from structure fitted pulley to hold different size conical flasks up to 500 ml .and consist speed of 200 RPM .the flask remain fix in lotus clamps provided on the platform. (Available in Electric and Variable Speed Regulator)

No of Flask Capacity 500 ml

Platform

9 Flask

20”X20”

12 Flask

20”X24”

16 Flask

24”X24”

25 Flask

30”X30”

36 Flask

32”X32”

49 Flask

36”X36”

100 Flask

48”X48”

TIMER 0-60 MINUTES



ROTARY SHAKING MACHINE :

Single Double or Three Tier platform Standard Platform 2’ x 2’ for 500ml flask. Fix speed 250 RPM or Variable speed with D.C. motor and control



TOP

SEITZ FILTER :

Completely made from stainless steel top fitted pressure valve simplified model for use with top either open or closed top portion can be unscrewed and removed . for used with pressure or gravity with top closed with either gravity or vaccum with top removed cylindrical body is clamped tightly on the funnel portion by mean of short bolt & wing nuts. Design for effective filtration for all type of liquids. When filter pads are employed which they removed all suspended matters and even particle of celloidle nature liquids.

Size in CMS

Size in MM

14

140

6

60

3

30

AVAILABLE FILTER PADS SEPARATELY.

TOP

LABORATORY FLEXIBLE HEATER :

(I)  ELECTRIC HEATING PADS:

With resilient surface for heating beakers flask & other glassware with flat bottoms. Maximum surface temperature 4000C working on 230Volts AC single phase supplied with energy Regulator. (Available with regulator & without regulator)

Size

Diameter

Wattage

(a)

12.5 cms.

125

(b)

18.5 cms.

250

(c)

22.5 cms.

375

(II) ELECTRIC HEATING CORD :

Maximum loading 0.5 W/cm .Maximum surface temperature 4000C

Length

Rating

750 cms.

3 x 125 watts

1500 cms.

3 x 250 watts

3000 cms.

3 x 500 watts

6000 cms.

3 x 1000 watts

        Energy regulator Box for above

     (III)  ELECTRIC HEATING TAPS

        Maximum surface Temperature 4000C

Length

Wide

Rating

135/125cms.

20 mm

125 watts

260/250cms.

20 mm

250 watts

510/500cms.

20 mm

500 watts

510/500cms.

20 mm

1000 watts

510/500cms.

40 mm

1000 watts

        Energy regulator Box for above

     (IV)   BEAKER MANTLE :

CAPACITY

WATTS

250ML

150

500ML

150



1 Ltr.

300

2 Ltr.

450

3 Ltr.

500

5 Ltr.

750 (1 X 300 &1 X 450)

10 Ltr.

1000 (2 X 500)

ABOVE CAN BE SUPPLIED IN BUILT IN REGULATOR

TOP

FLOCULATOR :

Floculator is design for heavy duty continuously run for any busy laboratory to determine sulphate concentration and for measuring suspended matter and colloid in general. The instrument consist of gear chain. It is couple with continues run D.C. Motor built in speed control with tube light for illumination. Stirring paddles are provided with adjustable aluminium spacers to adjust the depth of stirring paddle and a lock pin which allow the shaft to rotate with other stirrer. The stirrer shaft can be disconnected without disturbing other stirrer by the help of aluminium space provided with each. Shaft with the help of aluminium spacer adjust the shaft not require to the maximum height so that will be isolated.

Capacity 1 Ltr.              2 Stirrer            4 Stirrer            6 Stirrer

TOP

G

GLASS JAR TEST APPARATUS GLASS WATER STILL

GLASS JAR TEST APPARATUS :

a) Multistir driver : 6 test model complete with 2 flurescence tube one solid state speed controller 6 magnetic needle holder, 6 magnetic needle and connecting  cord (without any jar or beaker)

b)……. Do but individual solid state speed controller

TOP

ALL GLASS WATER STILL :

For ultra pure pyrogen free distill water instantly . for pharmaceutical microbiological & clinical application and for HPLC and trace analysis.

High purity in single distillation conductivity of distillate 1 micro Mho/cm.

Capacity                       1.5 Ltr/Hr & 4.5 Ltr/Hr.

 TOP

H

HEATING MANTLE WITH REGULATOR HOT PLATE HUMIDITY CONTROL OVEN HEATING BLOCK (DRY BATH)
HIGH TEMPERATURE VISCOMETRIC BATH HOT PLATE MAGNETIC STIRRER HEATING PADS HEATING CORDS
HEATING TAPS HIGH PRESSURE STEAM STERILIZER Hot Oil Circulating System suitable for Solvent Extraction System HIGH SPEED HOMOGENISER

(A) HEATING MANTLE WITH REGULATOR:

THESE MANTLES ARE MADE TO ACCOMMODATE SEVERAL SIZE OF ROUND BOTTOM FLASK & TO PROVIDE UNIFORM HEATING. MAXIMUM SURFACE TEMPERATURE OF 4500C. WITH ENERGY REGULATOR BOX BUILT-IN.

SINGLE SIZE

RATING WATTS

MULTI SIZE BOTTOM HOLE

RATING WATTS

50ml

60

25-250ml

150

100ml

60

50-500ml

200

250ml

150

250-1 Lit

300

500ml

200

500-3Lit

350

1Lit

300

1-5 Lit

2x250

2Lit

450

3-10 Lit

2x250

3Lit

450

5-20 Lit

2x500

5Lit

600



3x600

10Lit

2 x 500





20Lit

3 x 500







(B) REPLACEMENT ELEMENT (NET WITH COIL) :

THESE NET ARE CONSISTED OF FIBERGLASS YARN KNITTED WITH HEATING ELEMENT COVERED BY FIBER SLEEVES SUPPORTED BY ASBESTOS ROPE.

SINGLE SIZE                  MULTI SIZE

30ML                               5-250ML

50ML                               50-500ML

100ML                             250ML 1 LIT

250ML                             250ML 2 LIT

500ML                             500ML 3 LIT

1 LIT                                1LT-5 LIT

2 LIT                                3LT-10LT

3 LIT                                5LT-20 LIT

5 LIT

10LT  FOR SOXHLET EXTRACTION MANTLE

20LT             100-150ML OR 200-350ML

(C) PILOT PLANT HEATING MENTAL  :

MILD STEEL HOUSING WITH BUILT IN TEMPERATURE CONTROL ARRANGEMENT WITH BUTTON OUTLET //WITHOUT BOTTOM OUTLET AS PER THE CUSTOMER REQUIREMENT

SINGLE SIZE     RATTING WATTS        MULTISIDED BOTTOM HOLE       RATING WATTS

50 ITS.                    6 X 600                    10- 50 LTR                                 6 X 600

100 ITS.                  6 X 900                     20-100 LTR                                6 X 900

200 ITS.                  9 X 900                     50-200 LTR.                               9 X 900

REPLACEMENT ELEMENT FOR PILOT PLANTS NET WITH COIL

THESE NET ARE CONSIDERED FOR FIBER GLASS KNITTED /ASBESTOSES CLOTH OF 5 MM THICK, WITH HEATING ELEMENTS COVERED BY FIBER SLEEVES SUPPORTED BY ASBESTOSES ROPE

CAPACITY  50 LITERS   4 KW , 100 LITERS 6 KW  , 200 LITERS  9 KW

TOP

HOT PLATE ROUND FOR LAB USE:

MADE CAST IRON /STAINLESS STEEL TOP & BODY IS OF THICK MILD STEEL PAINTED ATTRACTIVELY.

SIZE

RATING

3 HEAT CONTROL SWITCH

THERMOSTATIC BY REGULATOR





TOP MS PLATE

STAINLESS STEEL;

TOP MS PLATE

STAINLESS STEEL;

8” Dia

1.5 K.W.

AVAILABLE AVAILABLE

9” Dia

1.6 K.W.

10” Dia

1.7 K.W.

12” Dia

2.0 K.W.

8” Dia double

3.0 K.W.



 (B)      HOT PLATE RECTANGULAR :

BODY MADE OF THICK MILD STEEL PAINTED ATTRACTIVELY .THE THICK IRON /STAINLESS STEEL PLATE IS PROVIDED ON TOP

AVAILABLE IN

3 HEAT CONTROL SWITCH - 1. TOP M.S. PLATE   2. STAINLESS STEEL, THERMOSTATIC BY SUNVIC REGULATOR  - 1. TOP M.S. PLATE   2. STAINLESS STEEL

SIZE         10”x12”  10”x16” 12”x 18”  12”x 20” 18”x24” 24”x24”
RATING KW    1.5 K.W    1.5 K.W  2.0 K.W 2.0 K.W 3.0 K.W 3.0 K.W

(C)    MINI HOT PLATE ROUND 4” DIA

THERMOSTATIC CONTROLLED ENERGY REGULATOR WITH ALUMINIUM TOP. RATING 500 WATTS.

TOP

HOT PLATE MAGNETIC STIRRER : WITH MOTOR

The improve hot plate magnetic stirrer is equipped with hotplate with a heated capacity which ensures uniform heating on the surface. The hot plate heating is controlled by an Energy Regulator which regulates the heating at any percentage of the total heater . The Main Stirrer unit is Thermally insulated from the hot plate by asbestos cement buffer surface.

Capacity

1 ltr

2 ltr

5 ltr

10 ltr



MOTORLESS HOT PLATE MAGNETIC STIRRER

SALIENT FEATURES NO MOVING PARTS

Supplied with magnetic paddle enable in taflon for use with it.Faciity for automatic bi-directional stirring with variable time intervals.

CAPACITY  2LTR , 5LTR

TOP

HIGH SPEED HOMOGENISER


HIGH SPEED HOMOGENISER (RQ-127A)
For homogenising of tissues at high speed. Chuck holds shaft upto 10 mm fitted with Teflon grinding pestle. 50 ml glass homogenising cup with rod supplied as standard, optional available - 15 ml., 25 ml & 100 ml. Motor 1/8 HP. 8000 RPM AC/DC.

Stirring shaft - 8 mm Ψ x 325 mm long.
RQ-127A/D with Auto Transformer speed regulator.






HIGH PRESSURE STEAM STERILIZER :

Triple walled middle & inside made of heavy gauge stainless steel argon welded & outer cover is also made of stainless steel polished. AVAILABLE IN ELECTRIC AND WITH DUNFOSS PRESSURE SWITCH & TIMER.

Size

12” Dia x 20” Ht.

16” Dia x 24” Ht.

22” Dia x 30” Ht.

KOCHE STEAM STERILIZER:

COMPLETE INNER MADE OF STAINLESS STEEL AND OUTER MADE OF CEMENT SHEET.

SIZE : 12" X 12" X 20" HT.

            12" X 12" X 30" HT.

TOP

HIGH TEMPERATURE VISCOMETRIC BATH :

Thick glass cylinder 12”Dia x12” height is provided with control gear box rest edges of jar containing Digital display having temperature range ambient to 1000C ± 0.50C  maximum circulating motor pump etc.

Viscometric holder acrylic

 TOP

HEATING BLOCK (DRY BATH)

Temperature range ambient to 1100C controlled to +- 0.20C (or better) by solid State Time proportional temperature controller-cum digital display using PT-100 Sensor, 3 Nos. interchangeable aluminium anodised blocks of 75 x 50 x 50 mm size will be supplied for accommodating 0.5 ml. Eppendorf tubescan 12mm, 16mm, or 19mm test tube. Outer body made of heavy mild steel and painted with epoxy powder paint. The front panel is provided with transparent acrylic door with lock & key.

Additional aluminium and anodized block of 75 x 50 x 50 mm for use with above dry bath.

TOP

Hot Oil Circulating System suitable for Solvent Extraction System

The Remote Service Unit SR 400 is a Hot Oil Circulating System suitable for Solvent Extraction System for estimation and safe determination of soluble materials.  The hot oil circulates through the platform meant for keeping the solvent cups in the Solvent Extraction System.

Features

bullet

High temperature coefficient and good thermal efficiency of steel heaters used m the oil bath.

bullet

Stainless steel tank housed in aluminium container for good corrosion resistance.

bullet

Fractional HP motor with stirrer and pump ensures internal as well as external circulation respectively.

bullet

Pumping capacity of 3 litres per minute.

bullet

Option for thermostatic or Solid-state temperature control.



Technical Data

S. No.

Parameter

Remote Service Unit SR 400

1

Tank capacity

5 Litres.

2

Temperature range

5 oC above ambient – 300 oC.

3

Temperature controller

Thermostat - standard
Digital control - optional

4

Control accuracy

± 3 oC for thermostat.
± 0.1 oC for digital control.

5

Circulating Pump

10 w, 3 lit / min.

6

Power requirement

230V, a.c., 50Hz, 750W



TOP

I

INCUBATOR BACTERIOLOGICAL LAB MODEL INCUBATOR MEMMERT MODEL INCUBATOR ELECTRONIC DIGITAL DISPLAY INCUBATOR SEE THROUGH
INCUBATOR CUM OVEN WATER BATH INCUBATOR SHAKER INCUBATOR ORBITAL SHAKING INNOCULATION HOOD
INSPISSATER PLATELET INCUBATOR

OVEN COME INCUBATOR (MEMMERT TYPE )

3 SIDE HEATER TEMPERATURE .RANGE 5DIG C ABOVE AMBIENT TO 200 DIG C WITH +1DIG C ACCURACY INNER CHAMBER MADE OF STAINLESS STEEL AND OUTER MILD STEEL PAINTED DOUBLE WALL DOOR WITH SILICON GASKET AND TOUGHNED GLASS WINDOW DIGITAL DISPLAY TEMPERATURE INDICATING CONTROLLER BUILT IN

 SIZE  (L X W X H)

A)  12” X 12” X 12”

B)  14” X 14" X 14"

C)  18" X 18" X 18"

D)  18" X 18" X 24"

E)   24" X 24" X 24"



TOP

WATER BATH INCUBATOR SHAKER :

DUBNOFF TYPE : Double walled stainless steel inside .Fibre glass insulated and outside made of mild steel duly painted. Powdered by a continuous duly. Variable speed self cooled motor with speed control up to 200 osci /min adjustable stepless strokes from 0-2” .Temperature range ambient to 950C wit6h cover by hydraulic capillary type thermostat ± 10C accuracy by digital display temp indicating controller. Supplied with stainless steel pyramid type cover. AVAILABLE THERMOSTATIC AND DIGITAL

Working size

Tray capacity

a) 12”x12”x61/2”

9 Flask of 250ml

a) 16”x12”x61/2”

12 Flask of 250ml

a) 20”x12”x61/2”

16 Flask of 250ml



TRAY FULL MADE OF STAINLESS STEEL WITH FLOWERS FOR DIFFERENT CAPACITY OF FLASKS WILL BE SUPPLIED AS PER CUSTOMERS REQUIREMENT. THE TRAY CAN BE LOADED QUICKLY 50ML, 100ML, 250ML, 500ML, 1000ML SIZE FLASKS CAPACITY.



TOP

ORBITAL SHAKING INCUBATOR :

Specially design to have combined operation of incubation and shaking as well the integral shaker mechanism. Eccentric orbit drive provides horizontal orbital motion agitation . incubator of double walled. Exterior of mild steel finished in paint. Interior made of stainless steel. Glass wool insulation Temp controlled by Digital Display solid state electronic control with PT 100 as a sensor. Forced air circulation .the platform is moulded on heavy duty spring with lotus clamps and stainless steel top. Speed is continues variable from 50 to 250 R.P.M.



(1)    Temp range : 50C above ambient to 600C accuracy ± 10C

MODEL

CAPACITY

MODEL

CAPACITY

A.

250 ML x 9 FLASK

F.

500 ML x 16 FLASK

B

250 ML x 16 FLASK

G.

500 ML x 25 FLASK

C.

250 ML x 25 FLASK

H.

1000 ML x 4 Flask

D.

250 ML x 36 FLASK

I

1000 ML x 9 FLASK

E.

500 ML x 9 FLASK

.



(2)    Temp range : 100C to 600C (unit with refrigeration) Accuracy : ± 10C Accuracy

MODEL

CAPACITY

MODEL

CAPACITY

R-A.

250 ML x 9 FLASK

R-F.

500MLx16 FLASK

R-B

250 ML x 16 FLASK

R-G.

500MLx25 FLASK

R-C.

250 ML x 25 FLASK

R-H.

1000MLx4 Flask

R-D.

250 ML x 36 FLASK

R-I

1000MLx9 FLASK

R-E.

500 ML x 9 FLASK

.



TOP

INSPISSATOR :

Fully stainless steel, double walled, water jacketed with four stainless steel wire trays in slanting position, temp. range ambient + 50c to 900c precise thermostat.

a. 45 H x 32 W x  12 D cms, 90 tubes

b. 32 H x 23 W x  12 D cms, 45 tubes

TOP

INNOCULATION HOOD:

Made of mild steel, spray finished, inside white, clear acrylic door in front & clear acrylic panel at bottom with 2 holes and sliding panels. Fitted with one ultra violet tube 15 W, supplied with 1 pair of acid/alkali proof gloves.

Size : 75 L x 50 B x 75 H cms.

TOP

PLATELET INCUBATOR


PLATELET INCUBATOR (PR-10)

This Platelet Incubator Model PI-10 is specially designed to give close control environment for stored platelets. Ideally suitable for accommodating Platelet Agitator model PR-10 (To be ordered separately).

Constructed of double walls, the exterior is made of sheet steel and the inner chamber is made of stainless steel. The plexiglass door makes it possible to inspect the platelet without disturbing the temperature.

Temperature range can be adjusted form 5Ί C to 60Ί C. All controls are mounted at the bottom of platelet incubator.

An Audiovisual alarm near the control panel gives indication in case of variation in strokes of the platelet agitator.

TECHNICAL DATA
Temperature range : 5ΊC to 60ΊC
External dimensions. (Approximate)
(W x D x H) 700 x 700 x 1100 mm.

Supply: 230 Volts Single Phase 50Hz. AC

Note: Use of JASHBIN make or any good quality 1KVA servo controlled voltage stabilizer is a must for platelet incubator. Guarantee invalid in case of non-use of voltage stabilizer.

TOP



JK

KJELDHAL DISTILLATION ASSEMBLY HEATER  KJELDHAL DIGESTION UNIT  KJELDHAL DIGESTION  AND DISTILLATION UNIT  KINEMATIC VISCOCITY BATH
AUTOMATIC KARL FISCHER TITRATION APPARATUS LABORATORY JACK KJELDAHL PROTEIN / NITROGEN ANALYSIS

AUTOMATIC KJELDHAL DISTILLATION UNIT

(A) KJELDHAL DISTILLATION ASSEMBLY HEATER :

Distillation on stand made of mild steel Tubular painted to hold 6 test heater box 300,500 or 800 ml kjedhal Flasks. Kjedhal for six tests with asbestos cement top fitted with nicrome wire spiral element. Brass condenser rack with inlet & outlet Tubes foe fitting 6 condenser complete with clamp but supplied WITHOUT GLASS PARTS.

With 6 energy regulator

TOP

KJELDHAL DIGESTION UNIT :

The heating element used are flexible and made of imported Nichrome wire attached to the knitted fabric shaped to receive the micro . Kjedhal flasks. These heating element are fixed in a Box. On either side of the unit fall adjustable arms held in clamps provided for support the fume duct ( but supplied without FUME DUCT & GLASS PART)

CAP. OF FLASK

ENERGY CONTROLLER

ON\OFF SWITCH

WATTS

50ML

6

-

300

50ML

1

6

300

100ML

6

-

400

100ML

1

6

400

TOP

(C) KJELDHAL DIGESTION  AND DISTILLATION UNIT :

One single mild steel tubular is provided with two heating shelves one above the other Open spiral element heater are fixed in a box foe keeping up to 800ml . Kjedhal flasks.

AVAILABLE WITH ON/OFF SWITCH & WITH ENERGY REGULATOR

NO.OF FLASKS : 3, 4, 6

TOP

    KJELDAHL PROTEIN / NITROGEN

    ANALYSIS :

AUTOMATIC NITROGEN DISTILLATION UNIT : JASHBIN brings to you the state of the art indigenously designed, engineered and manufactured , an automatic Kjeldahl distillation unit for Nitrogen / protein analysis.



Features :
bullet Distillation unit operable in auto and manual mode.
bullet Automatic water dilution, alkali addition, reaction delay time, steam injection.
bullet Automatic tube drain facility is optional.
bullet Automatic addition of receiver solution is optional.
bullet Audio signal and LED signal to indicate the end of the analysis.
bullet Suitable for 100ml (micro), 250 ml (macro) and 500 ml (direct distillation) tubes.
bullet Imported Bellows pump for accurate and reproducible volumes of receivers solution.
bullet Receivers solution cycle can be switched off by means of switch, if not needed.
bullet Adjustable receiver solution volume per stroke of bellow pump.
bullet Alkali addition in auto or manual mode.
bullet Imported geared motor bellows pump for accurate and reproducible volumes of alkali.
bullet Adjustable alkali volume per stroke of bellows pump and stroke range is programmable.
bullet In-build Borosilicate glass steam generator with status indication by mean of light bulb.
bullet Controlled by digital circuit for low water level and excess temp. in the steam generator.
bullet Imported Oscillating pump for water refilling in steam generator.
bullet Standby mode to reduce distillation time and to minimize power consumption.
bullet Borosilicate glass splash head and condenser.
bullet Additional vent value to avoid back suction of distillate at the end of the distillation cycle.
bullet Safety feature include LED indication for low water level, tube in place and interlocked magnetic door.
bullet External thumb lever for actuating the tube holder.
bullet Hand held tongs provide to handle the digestion tube.
bullet Used official AOAC procesures for analysis.
Technical Data




S.No.

Parameter

 Vapokjel DS 30 (with chosen digestion system)

1

Nitrogen Recovery

  99.7 - 100 %

2

Accuracy

Highly accurate Supersedes conventional Kjeldahl apparatus results.

3

Reproducibility

± 1% relative or better.

4

Analysis range

0.5 – 160 mg of nitrogen / 3 – 1000 mg of protein.

5

Distillation capacity

3 – 4 minutes per sample (15 to 20 samples per hour).

6 Receiver Solution volume Settable between 15-50ml per stroke.(Zero when cycle switched off)
7 Water dilution Programmable between 0-100 ml in steps of 10ml.(Zero when cycle switched off)

8

Alkali addition

Automatic mode (Programmable between 1-9 strokes of bellows pump) / Manual mode (Continuous).

9

Alkali volume

Settable between 15 – 50 ml per stroke.

10 Reaction delay time Programmable between 0-5 minutes.
11 Distillation time Programmable between 1-99 minutes.

12

Steam generator

Borosilicate glass with Teflon cover.

13

Steam safety device

Pressure relief valve with high-sensitivity.

14

Heater

Custom-built Coil type made of Inconel 600 and chrome-plated.

15

Temperature control

Thermocouple based electronic controller with Standby mode.

16

Water level control

Electronic controller with four sensor levels
-Common level – normal operational mode (Signal Input).
-High level – Refill pump switched off.
-Low level – Refill pump switched on.
-Very low level – Refill pump as well as heater is switched off.

17 Cooling Water consumption Automatic(90 liters per hour) Nil when used with JASHBIN CW 120 Water saving system.

18

Condenser

Made of borosilicate glass. With 1 large bulb and 14 coils.

19

Distillate collection

20– 35 ml per minute optimally.

20

Water tank capacity

5 liters.

21

Alkali tank capacity

5 liters.

22

Program settings

Sensitive touch – key.

23

Process indication

Digital LED display with real time countdown indication.

24

Dimension (W x D x H)

360 x 390 x 825 mm.

25

Weight

Approximately 35 Kg.

26 Electrical requirement 230V, 50Hz Single phase AC, 1500W.

Ordering Information


Cat No. Feature
DS 30

Standard

DS 30D

Tube drain option

DS 30R Auto addition of Receiver Solution option

The unit is supplied with the maintenance kit as well as operation manual. On request we shall provide standard application procedures and also recommend solvent/reagent kits to suit your routine analysis The DS 30 is running water consumption free when used with the CW 120 water saving system. Post your sales/service related queries online at our website or contact us at the address below.



AUTOMATIC KARL FISCHER TITRATION APPARATUS :

bullet User friendly automatic titrator for reliable and accurate estimation moisture.
bullet Dispensing pump for un-interrupted and convenient operations.
bullet Instrument with microcontroller alphanumeric display.
bullet Automatic calculations of moisture content, PPM or percentage.

Range of moisture detection : Less than 20 PPM to 100% with appropriate sample size.

Display readability : 0.01ml

Printer socket provided for 80 column printer.

Single burette system .with 10 segment LED bar graph display to indicate level of titration.

Available in Auto fill and Manual.

Auto and Manual Titration (Acid base titration)

TOP

AUTOMATIC KJELDHAL DISTILLATION UNIT



Features :

bullet

Analysis cycle includes auto addition of receiver solution, water
dilution, alkali addition, reaction delay time, steam injection, tube
drain & titration cycle (if connected to the auto titration unit)

bullet

Distillation unit operable in auto or manual mode.

bullet

Auto signal & LED signal to indicate end-of-analysis.

bullet

Suitable for 100ml (Micro ), 250ml(Macro) and 500ml(Direct Distillation) tubes.

bullet

Imported Bellows pump for accurate &  reproducible volumes of receiver solution

bullet

Receiver solution cycle can be switched off by means of a switch, if not needed.

bullet

Adjustable receiver solution volume per stroke of bellows pump.

bullet

Alkali addition in auto or manual mode.

bullet

Imported geared motor bellows pump for accurate and reproducible volumes of alkali.

bullet

Adjustable alkali volume per stroke of bellows pump and stroke range is programmable.

bullet

In-built Borosilicate glass steam generator with status indication by means of light bulb.

bullet

Controlled by digital circuit for low water level and excess temperature in the steam generator.

bullet

Imported Oscillating pump for water refilling in steam generator.

bullet

Transparent window on the body panel to view the status of steam generator.

bullet

25 pin remote I/O serial port to connect to Auto Titration Unit-Model 719 from M/s Metrohm Ltd., Switzerland.

bullet

Distillation Unit also operable in stand alone mode without connecting to auto titration unit.

bullet

Auto titration unit is programmable & as RS 232 C Interface port for connecting to PC/Printer/Weighing balance.

bullet

Up to 9 freely programmable formulae can be input and the result made available in 9 units.

bullet

LCD display of results in the auto titration unit.

bullet

Tube drain cycle can be switched off, if not needed.

bullet

Standby mode to reduce Distillation time and to minimize power consumption.

bullet

Borosilicate glass splash head and condenser.

bullet

Additional vent value to avoid back suction of distillate at the end of the distillation cycle.

bullet

Safety features include LED indication for Low water level, Tube in place and Interlocked magnetic door.

bullet

External thumb lever for actuating the tube holder.

bullet

Hand held tongs provided to handle the digestion tubes.

bullet

Plastic spill tray.

bullet

The unit is provided with all necessary silicone and nylon tubing.

bullet

Uses official AOAC procedures for analysis.



Technical Data




S.No.

Parameter

 Vapokjel DF 50 (with chosen digestion system)

1

Nitrogen Recovery

  99.7 - 100 %

2

Accuracy

Highly accurate Supersedes conventional Kjeldahl apparatus results.

3

Reproducibility

± 1% relative or better.

4

Analysis range

0.5 – 160 mg of nitrogen / 3 – 1000 mg of protein.

5

Distillation capacity

3 – 4 minutes per sample (15 to 20 samples per hour) with out titration cycle.

6

Total Nitrogen Analysis Time

5-6 minutes per sample (10 to 12 samples per hour) with titration cycle.

7

Receiver solution volume Settable between 15-50ml per stroke(Zero when cycle switched off)

8

Water dilution Programmable between 0-100ml in steps of 10ml.(Zero when cycle switched off)

9

Alkali addition

Automatic mode (Programmable between 1-9 strokes of bellows pump) / Manual mode (Continuous).

10

Alkali volume

Settable between 15 – 50 ml per stroke.

11

Reaction delay time Programmable between 0-5 minutes.
12 Distillation time Programmable between 1-99 minutes.

13

Steam generator

Borosilicate glass with Teflon cover.

14

Steam safety device

Pressure relief valve with high-sensitivity.

15

Heater

Custom-built Coil type made of Inconel 600

16

Temperature control

Thermocouple based electronic controller with Standby mode at 90C

17

Water level control

Electronic controller with four sensor levels
-Common level – normal operational mode (Signal Input).
-High level – Refill pump switched off.
-Low level – Refill pump switched on.
-Very low level – Refill pump as well as heater is switched off.

18

Cooling water consumption

Automatic(90liters per hour).Nil when used with JAGUAR CW 120 Water saving systems

19

Condenser

Made of borosilicate glass. With 1 large bulb and 14 coils.

20

Distillate collection

20– 35 ml per minute optimally.

21

Water tank capacity

5 liters.

22

Alkali tank capacity

5 liters.

23

Program settings

Sensitive touch – key.

24

Process indication

Digital LED display with real time countdown indication.

25

Dimension (W x D x H)

360 x 390 x 825 mm.

26

Weight

Approximately 35 Kg.

27 Electrical requirement 230V,50Hz single phase AC,1500 W

Ordering Information :


Cat No. Feature
DF 50

Auto addition of receiver solution, water dilution, addition of alkali, reaction delay time, steam injection, tube drain & titration cycle (if connected to auto titration unit)





The unit is supplied with the maintenance kit as well as operation manual. On request, we shall provide standard application procedures and also recommend solvent/ reagent kits to suit your routine analysis The DF 50 is running water consumption free when used with the CW 120 water saving system. Post your sales/service related queries online at our website or contact us at the address below.

TOP



JACK LABORATORY :

        ADJUSTABLE PLATFORM : Size 20x15 cms. Closed height 10 cms. Open height 30cms.

  Maximum capacity 25 Kg mild steel painted

        BOX TYPE : Maximum load 20 Kg. Closed height 80mm open height 225mm

  Plat form area 115mm x125mm made of thick gauge aluminium sheet each

  LABORATORY JACK HEAVY DUTY OPEN TYPE (AVAILABLE IN MILD STEEL,  ALUMINIUM, S.S.)

PLATFORM SIZE

CLOSE HEIGHT

OPEN HEIGHT

MAX LOAD

120 x 140mm

75mm

210mm

5 Kg

200 x 200mm

100mm

350mm

10Kg

250 x 250mm

150mm

350mm

45 Kg

350 x 350mm

150mm

350mm

50 Kg

 TOP

L

LAB JACK

LAB JACK - BOX TYPE

CHOICE OF 2 PLATFORM SIZES, MAXIMUM LOAD 20 KG.

LAB JACK - OPEN TYPE

MAXIMUM LOAD 25 KG.

LAB JACK - HEAVY DUTY TYPE

CHOICE OF 4 SIZES, MAXIMUM LOAD 5 TO 50 KG.

TOP

M

MAGNETIC STIRRER MELTING POINT APPARATUS MAGNETIC STIRRER WITH CONSTANT TEMPERATURE BATH MICROSLIDE CABINET
FULLY AUTOMATIC NITROGEN ANALYSER

MAGNETIC STIRRER WITH MOTOR

S.S. TOP WITH ELECTRIC SPEED REGULATOR. THE STIRRER UNIT IS HOUSED IN ROBUST FABRICATED SHEET METAL HOUSING DESIGNED FOR EASY AND VIBRATION FREE OPERATION VENTILATION LOWERS ARE PROVIDE FOR INTERNAL COOLING BOTH THE ROTATING MAGNETIC FIELD FROM BALANCED PERMANENT MAGNET TO INDUCE VARIABLE SPEED STIRRING ACTION IN CLOSED OR OPEN LAB. GLASS ONE NON-MAGNETIC VESSELS STIRRING IS ACCOMPLISHED BY MEANS OF A SMALL PADDLE PLACED IN THE LIQUID TO BE STIRRED THE STIRRER SPEED CAN BE VARIED UP TO 1200RPM PROVIDED WITH ONE TEFLON COATED (P.T.F.E) MAGNETIZED STIRRING BAR

CAP

500ML

1LIT

2LIT

5LIT

10LIT

20LIT

25LIT

50LIT

75LIT

100LIT

MOTORLESS MAGNETIC STIRRER

SALIENT FEATURES:

                                    NO MOVING PARTS

                                    LONG LASTING

                                    ZERO MAINTENANCE

                                    LOW POWER CONSUMPTION

                                    NO VIBRATION

                                    CONTINUOUS USE

                                    STAINLESS SPEED CONTROL

                                    CAPACITY 2 LTR. & 5 LTR.

MAGNETIC STIRRER HOT PLATE WITH MOTOR :

The improve hot plate magnetic stirrer is equipped with hotplate with a heated capacity which ensures uniform heating on the surface. The hot plate heating is controlled by an Energy Regulator which regulates the heating at any percentage of the total heater . The Main Stirrer unit is Thermally insulated from the hot plate by asbestos cement buffer surface.

Capacity

1 ltr

2 ltr

5 ltr

10 ltr



MAGNETIC STIRRER HOT PLATE MOTORLESS

SALIENT FEATURES :

                                    NO MOVING PARTS

                                    LONG LASTING

                                    ZERO MAINTENANCE

                                    LOW POWER CONSUMPTION

                                    NO VIBRATION

                                    CONTINUOUS USE

                                    STAINLESS SPEED CONTROL

Supplied with magnetic paddle enable in Teflon for use with it. Faciity for automatic bi-directional stirring with variable time intervals.

                        CAPACITY : 2 LTR & 5 LTR

TOP

MELTING POINT APPARATUS :

Aluminium block accepting 3 capillaries and a thermometer Maximum temperature 3500C

Supplied without thermometer

Cooling plug for water circulation

PRECISION DIGITAL MELTING POINT APPARATUS (WITH OIL):

The silicon oil bath is heated with heaters controlled by an electronic Digital Display controller & the bath is stirrer by a Teflon coated magnetic stirrer .Illuminated geare free background with magnifying glass .Temp up to 2500C/3000C

PRECISION DIGITAL MELTING POINT APPARATUS (WITHOUT OIL):

Oil less to determine the MELTING POINT, BOILING POINT for FLOW point of a substance accurately up to a maximum temperature 3000C/3500C Digital Display Viewing through adjustable magnifying glass illumination along with the facility to hold temp  display

………….Do………….AUTOMATIC WITH 10C  Resolution

………….Do…………..............................0.10C  Resolution

TOP





FULLY AUTOMATIC NITROGEN ANALYSER


Features :

bullet

Analysis cycle includes auto addition of receiver solution, water
dilution, alkali addition, reaction delay time, steam injection, tube
drain & titration cycle (if connected to the auto titration unit)

bullet

Distillation unit operable in auto or manual mode.

bullet

Auto signal & LED signal to indicate end-of-analysis.

bullet

Suitable for 100ml (Micro ), 250ml(Macro) and 500ml(Direct Distillation) tubes.

bullet

Imported Bellows pump for accurate &  reproducible volumes of receiver solution

bullet

Receiver solution cycle can be switched off by means of a switch, if not needed.

bullet

Adjustable receiver solution volume per stroke of bellows pump.

bullet

Alkali addition in auto or manual mode.

bullet

Imported geared motor bellows pump for accurate and reproducible volumes of alkali.

bullet

Adjustable alkali volume per stroke of bellows pump and stroke range is programmable.

bullet

In-built Borosilicate glass steam generator with status indication by means of light bulb.

bullet

Controlled by digital circuit for low water level and excess temperature in the steam generator.

bullet

Imported Oscillating pump for water refilling in steam generator.

bullet

Transparent window on the body panel to view the status of steam generator.

bullet

25 pin remote I/O serial port to connect to Auto Titration Unit-Model 719 from M/s Metrohm Ltd., Switzerland.

bullet

Distillation Unit also operable in stand alone mode without connecting to auto titration unit.

bullet

Auto titration unit is programmable & as RS 232 C Interface port for connecting to PC/Printer/Weighing balance.

bullet

Up to 9 freely programmable formulae can be input and the result made available in 9 units.



bullet

LCD display of results in the auto titration unit.

bullet

Tube drain cycle can be switched off, if not needed.

bullet

Standby mode to reduce Distillation time and to minimize power consumption.

bullet

Borosilicate glass splash head and condenser.

bullet

Additional vent value to avoid back suction of distillate at the end of the distillation cycle.

bullet

Safety features include LED indication for Low water level, Tube in place and Interlocked magnetic door.

bullet

External thumb lever for actuating the tube holder.

bullet

Hand held tongs provided to handle the digestion tubes.

bullet

Plastic spill tray.

bullet

The unit is provided with all necessary silicone and nylon tubing.

bullet

Uses official AOAC procedures for analysis.



Technical Data




S.No.

Parameter

 Vapokjel DF 50 (with chosen digestion system)

1

Nitrogen Recovery

  99.7 - 100 %

2

Accuracy

Highly accurate Supersedes conventional Kjeldahl apparatus results.

3

Reproducibility

± 1% relative or better.

4

Analysis range

0.5 – 160 mg of nitrogen / 3 – 1000 mg of protein.

5

Distillation capacity

3 – 4 minutes per sample (15 to 20 samples per hour) with out titration cycle.

6

Total Nitrogen Analysis Time

5-6 minutes per sample (10 to 12 samples per hour) with titration cycle.

7

Receiver solution volume Settable between 15-50ml per stroke(Zero when cycle switched off)

8

Water dilution Programmable between 0-100ml in steps of 10ml.(Zero when cycle switched off)

9

Alkali addition

Automatic mode (Programmable between 1-9 strokes of bellows pump) / Manual mode (Continuous).

10

Alkali volume

Settable between 15 – 50 ml per stroke.

11

Reaction delay time Programmable between 0-5 minutes.
12 Distillation time Programmable between 1-99 minutes.

13

Steam generator

Borosilicate glass with Teflon cover.

14

Steam safety device

Pressure relief valve with high-sensitivity.

15

Heater

Custom-built Coil type made of Inconel 600

16

Temperature control

Thermocouple based electronic controller with Standby mode at 90C

17

Water level control

Electronic controller with four sensor levels
-Common level – normal operational mode (Signal Input).
-High level – Refill pump switched off.
-Low level – Refill pump switched on.
-Very low level – Refill pump as well as heater is switched off.

18

Cooling water consumption

Automatic(90liters per hour).Nil when used with JASHBIN CW 120 Water saving systems

19

Condenser

Made of borosilicate glass. With 1 large bulb and 14 coils.

20

Distillate collection

20– 35 ml per minute optimally.

21

Water tank capacity

5 liters.

22

Alkali tank capacity

5 liters.

23

Program settings

Sensitive touch – key.

24

Process indication

Digital LED display with real time countdown indication.

25

Dimension (W x D x H)

360 x 390 x 825 mm.

26

Weight

Approximately 35 Kg.

27 Electrical requirement 230V,50Hz single phase AC,1500 W

Ordering Information
Cat No. Feature
DF 50

Auto addition of receiver solution, water dilution, addition of alkali, reaction delay time, steam injection, tube drain & titration cycle (if connected to auto titration unit)

The unit is supplied with the maintenance kit as well as operation manual. On request, we shall provide standard application procedures and also recommend solvent/ reagent kits to suit your routine analysis The DF 50 is running water consumption free when used with the CW 120 water saving system. Post your sales/service related queries online at our website or contact us at the address below.

TOP



O

OVEN CHROMATOGRAPHY PAPER DRYING OVEN HUMIDITY CONTROL DIGITAL DISPLAY HOT AIR OVEN LAB MODEL HOT AIR OVEN MEMMERT MODEL
OVEN DIGITAL DISPLAY OVEN ELECTRODE DRYING OVEN HIGH TEMPERATURE TOP AIR OVEN
OVEN CUM INCUBATOR OVEN VACCUM ELECTRIC OIL BATH OIL BATH PRECISION CIRCULATING
OIL BATH FOR PILOT PLANT ORBITAL SHAKER MINI PAINT CORROSION OVEN

HOT AIR OVEN LABORATORY MODEL

DOUBLE WALLED OUTER OF MILD STEEL & INNER IS MADE OF EITHER MILD STEEL / ALUMINIUM /S.S.  LAGGED WITH GLASS WOOL BOTTOM HEATERS MADE OF NICHROME WIRE TEMPERATURE IS CONTROLLED BY SENSITIVE HYDRAULIC THERMOSTAT WITH +/-2’CACCURACY TEMPERATURE RANGE 50’C TO 250’C (AVAILABLE IN MILD STEEL, ALUMINIUM, STAINLESS STEEL)

CHAMBER SIZE      WATTS    SHELVES

10”X10”X10”                500                1

12”X12”X12”                750                1

14”X14”X14”              1000                2

18”X18”X18               1500                2

18”X18”X24”              1750                2

20”X20”X24”              1850                3

18”X24”X36               2000                3

24”X24”X24”              2200                3

24”X24”X36”              2500                3

1) FITTED WITH FORCED AIR CIRCULATION (i.e., FAN & MOTOR ARRANGEMENT) AT BOTTOM

2) Solid state controller with front dial to set Temperature

TOP

HOT AIR OVEN MEMMERT MODEL :

DOUBLE WALLED OUTER OF MILD STEEL DULY PAINTED. INNER IS MADE OF EITHER MILD STEEL / ALUMINIUM /S.S.  LAGGED WITH GLASS WOOL THREE SIDE  HEATERS MADE OF NICHROME WIRE ARE PROVIDED. TEMPERATURE IS CONTROLLED BY SENSITIVE HYDRAULIC THERMOSTAT WITH +/-2’C built in thermometer ( L Shape)

CHAMBER SIZE      WATTS    SHELVES

12”X12”X12”                800                1

14”X14”X14”              1000                2

18”X18”X18               1500                2

18”X18”X24”              2200                3

20”X20”X24”              2250                3

18”X24”X36               2500                3

24”X24”X24”              2750                3

24”X24”X36”              3000                3

1) FITTED WITH FORCED AIR CIRCULATION

(i.e., FAN & MOTOR ARRANGEMENT) AT BOTTOM

2) Solid state controller with front dial to set Temperature

TOP

(C) DIGITAL DISPLAY OVEN

SOLID STATE TEMPERATURE INDICATING CONTROLLER WITH SENSOR TWO REMOVABLE PERFORATED TRAYS MADE OF GALVANIZING WIRE MESH TEMPERATURE RANGE 50’C TO 200’C WITH +/- 1’C ACCURACY

CHAMBER SIZE      WATTS    SHELVES

14”X14”X14”              1000                2

18”X18”X18               1500                2

18”X18”X24”              1750                2

24”X24”X24”              2200                3

24”X24”X36”              2500                3

FITTED WITH FORCED AIR CIRCULATION (i.e. FAN & MOTOR ARRANGEMENT) AT BOTTOM

TIMER FOR 24 HRS WITH AUTOMATIC ARRANGEMENT 'OFF' THE HEATER SUPPLY TO SET TIME

TEMPERATURE RANGE 50’C TO 300’C IF REQUIRE

TOP

ELECTRODE DRYING OVEN :

UNIQUE DESIGN OFFER COMPLETE PRODUCTION TO WELDING ELECTRODES BY PREVENTING DETERIORATION CAUSED BY ABSORPTION OF MOISTURE .THIS OVEN WITH ITS THERMOSTATIC CONTROL ,COULD BE USED AS A DUAL PURPOSE CABINET .SET AT A LOWER TEMPERATURE IT COULD BE USED AS AN ELECTRODE STRONG CABINET ,WHILE AT A HIGHER TEMPERATURE IT COULD SERVE FOR THE RECOVERY OF ELECTRODES STORAGE CABINET, WHILE AT A HIGHER  TEMPERATURE IT COULD SERVE FOR THE RECOVERY OF ELECTRODES WHICH MIGHT HAVE BECOME “WET” DOUBLE WALLED STEEL CABINET OUTER PAINTED WITH 2” GLASS WOOL INSULATION. FIVE SHELVES FORMED BY M.S. ROUND BARS OF ½ “DIAMETER (THREE FOR EACH SHELF) PLACED AT A DISTANCED OF THREE INCHES PROVIDE STORAGE SPACE FOR WELDING ELECTRODES. TEMPERATURE RANGE FROM 500C 2500C +50C ACCURACY.

SIZE: 18”HX 18-“WX 20”L                 RATING 2 K.W

(II) PORTABLE ELECTRODE DRYING OVEN :

 THERMOSTATICALLY CONTROLLED. MAXIMUM TEMPERATURE2500

CHAMBER DIMENSIONS: 80 MM (DIA) X 460 MM (DEPTH)

                                        62 MM (DIA) X 480 MM (DEPTH)

TOP

HIGH TEMPERATURE OVEN :

TEMPERATURE. RANGE 400 DIG C DIGITAL DISPLAY MAXIMUM + 2 DIG C ACCURACY INNER MADE OF MILD STEEL /STAINLESS STEEL AND OUTER MADE OF MILD STEEL PAINTED STEEL PAINTED ATTRACTIVELY .INSULATING 4”CERMIC GLASS –WOOL. GOOD QUALITY HEATER WILL BE PROVIDED.  AVAILABLE IN MILD STEEL, STAINLESS STEEL

SIZE

12” X 12” X 12”

14” X 14” X 14”

18” X 18” X 18”

18” X 18” X 24”

24” X 24” X 24”



TOP

(F) TOP AIR CIRCULATION HOT AIR OVEN :

TRIPLE WALLED: OUTER IN BETWEEN AND INNER ALL MADE OF MILD STEEL .WITH TOP CIRCULATING BLOWER, GOOD QUALITY TUBER HEATER DIGITAL DISPLAY TEMPERATURE .CONTROLLER BUILT IN WITH +2 DIG C ACCURACY OR BETTER SUITABLE FOR INDUSTRIAL USE LIKE PAINTING .BANKING, VARNISH BAKING PLASTIC GRANULES DRYING .CHEMICAL AND POWER DRYING, ELECTRODE, TEFLON COATING ,ANNEALING, DYES, CORE HARDENING PREHEATING OF PAPADS ,CHILLY ECT. AVAILABLE TEMPERATURE UP TO 1500 C & TEMPERATURE UP TO 2500 C.

SIZE

A) 1' X 1' X 1'

B) 1.25' X 1.25' X 1.25'

C) 1.5' X 1.5' X 1.5'

D) 1.5' X 1.5' X 2'

E) 2' X 2' X 2'

F) 3' X 2' X 2'

G) 3' X 3' X 3'

H) 4' X 3' X 3'

I) 5' X 3' X 3'

J) 4' X 4' X 4'

K) 5' X 4' X 4'

L) 6' X 4' X 4'

M) 6' X 5' X 5'

N) 6' X 6' X 6'

O) 7' X 6' X 6'

P) 7' X 7' X 7'

TROLLEY / TRAYS / TIMER / ALARM ETC.

TOP

(G) OVEN COME INCUBATOR (MEMMERT TYPE)

3 SIDE HEATER TEMPERATURE .RANGE 5DIG C ABOVE AMBIENT TO 200 DIG C WITH +1DIG C ACCURACY INNER CHAMBER MADE OF STAINLESS STEEL AND OUTER MILD STEEL PAINTED DOUBLE WALL DOOR WITH SILICON GASKET AND TOUGHED GLASS WINDOW DIGITAL DISPLAY TEMPERATURE INDICATING CONTROLLER BUILT IN

   SIZE    (L X W X H)

A)  12” X 12” X 12”

B)  14” X 14" X 14"

C)  18" X 18" X 18"

D)  18" X 18" X 24"

E)  24" X 24" X 24"



TOP

VACCUM OVEN ELECTRIC:

Double walled, outer made of Mild Steel painted & inner wall made of Stainless Steel in cylindrical shape.  Suspension type door closing mechanism.  Heaters are clamped on to the outside of the body control by Thermostatic / Digital Display range 50ΊC to 200ΊC + 2ΊC accuracy.  A vaccum type stop-clock and a vaccum gauge are fitted on the top.  Two shelves are provided.  Built with Glass window.  (Supplied without Vaccum Pump) Vaccum attainable up to 760 mm of mercury. Available in thermostatic and digital controller.

(A)            ROUND:

Sr.

Working Chamber

01.

9” Dia x 12 “ Depth

02.

12” Dia x 15” Depth

03.

15” Dia x 18” Depth

04.

18” Dia x 24” Depth

 (B)             RECTANGULAR:

Sr.

L x W x D

Rating Watts

No. of  Shelves

01.

8” x  8” x 12”

1600

2

02.

12” x 12” x 12”

1700

2

03.

12” x 12” x 16”

1800

2

04.

12” x 18” x 18”

1900

2

05.

14” x 14” x 20”

2000

3

06.

18” x 18” x 24”

2200

3

07.

20” x 20” x 30”

2500

4



TOP

(A) MINI ORBITAL SHAKER :

A triple electronic drive produces Ύ” horizontal orbital motion through the heavy duly bearing supporting the platform. A variety of interchangeable platforms are made of stainless steel top with steel spring clamp and binding springs. Orbital Shaker gives continuous shaking combined with precise speed control.

For capacity 9 flask can be accommodate 50ml ,100ml,150ml ,250ml or as per requirement

(B) ORBITAL SHAKING INCUBATOR :

Specially design to have combined operation of incubation and shaking as well the integral shaker mechanism. Eccentric orbit drive provides horizontal orbital motion agitation . incubator of double walled. Exterior of mild steel finished in paint. Interior made of stainless steel .glass wool insulation. Temp controlled by Digital Display solid state electronic control with PT 100 as a sensor .Forced air circulation .the platform is moulded on heavy duty spring with lotus clamps and stainless steel top. Speed is continues variable from 50 to 250 R.P.M .



(1)    temp range : 50C above ambient to 600C accuracy ± 10C

MODEL

CAPACITY

MODEL

CAPACITY

A.

250ML x 9 FLASK

F.

500ML x 16 FLASK

B

250ML x 16 FLASK

G.

500ML x 25 FLASK

C.

250ML x 25 FLASK

H.

1000ML x 4 Flask

D.

250ML x 36 FLASK

I

1000ML x 9 FLASK

E.

500ML x 9 FLASK

.



(2)    Temp range : 100C to 600C (unit with refrigeration) Accuracy : ± 10C Accuracy

MODEL

CAPACITY

MODEL

CAPACITY

R-A.

250ML x 9 FLASK

R-F.

500ML x 16 FLASK

R-B

250ML x 16 FLASK

R-G.

500ML x 25 FLASK

R-C.

250ML x 25 FLASK

R-H.

1000ML x 4 FLASK

R-D.

250ML x 36 FLASK

R-I

1000ML x 9 FLASK

R-E.

500ML x 9 FLASK

.





TOP

PAINT CORROSION OVEN :

CONSTRUCTION :

Stainless steel INTERIOR and mild steel Exterior. A special type water immersion stainless steel heater is fitted at the bottom of the oven in the built in reservoir and the heating rate is controlled by solid state SCR Circuit.

Temperature is control by SOLID STATE ELECTRONIC CONTROLLER WITH DIGITAL DISPLAY and control the temperature at 42 0C and 480C respectively at an accuracy of ± 0.50C Humidity Range up to 95% RH

Air circulation is with the help of special type of FAN BLADES (as per IS 101 Specification driven by a high quality FHP Motor to give very efficient air circulation throughout the Oven Chamber.

CAPACITY

: TO ACCOMMODATE 8 TEST PANELS

35W x 25D x 60 Ht. cms



: TO ACCOMMODATE 16 TEST PANELS

45W x 45D x 70 Ht. cms



: TO ACCOMMODATE 24 TEST PANELS

50W x 50D x 50 Ht. cms

TOP

P

PUMP SUCTION PERISTALTIC PUMP AUTOMATIC PIPETTE WASHER  PLANT GROWTH CHAMBER
PARAFFIN WAX DISPENSER PAINT CORROSION OVEN

pH METER

POLARIMETER
PLASMA FREEZERS

SUCTION PUMP

TOP



POLARIMETER :

POLARIMETER 220 mm : Suitable for testing sugar solution and other optically active liquids. Designed to accommodate upto  220 mm tube. Having both angular & sugar scale with rotating half shadow effect with fine optics and lamp assembly.



TOP





PERISTALTIC PUMP :



1)      PERISTALTIC PUMP SINGLE CHANNEL APPROX FLOW RATE 6ML TO 60ML PER HOUR

      2)      PERISTALTIC PUMP APPROX FLOW RATE 10ML TO 80ML PER MINUTE

      3)      PERISTALTIC PUMP APPROX FLOW RATE 80ML TO 650ML PER MINUTE

      4)      PERISTALTIC PUMP APPROX FLOW RATE 110ML TO 900ML PER MINUTE

      5)      THE ABOVE PUMPS WILL BE SUPPLIED WITH ONE METER OF     SILICONE RUBBER TUBE INDIAN MAKE FREE OF CHARGE



            FOR MORE DETAIL CLICK HERE





TOP

(A) PIPETTE WASHER AUTOMATIC :

Consist of pipette rack and a special design container for rack .It is operated on symphoning system for convenient washing for pipette .this pipette can be placed tip up (mouth piece down) on the rack which is then placed in the container. The fresh water enter at the bottom of the container and the rack Are made of stainless steel .

Size :6” Dia x 22” Height to accommodate pipette up to 3758 mm

TOP

PLANT GROWTH CHAMBER ( LOW TEMP. ILLUMINATION INCUBATOR WITH HUMIDITY) :

Temp . Range     : 50Cto 600C

Accuracy             : ± 10C  With Tube lights ON

Temp. Range      : 150C to 600C

Humidity Range   : 40% RH to 95% RH            Accuracy :± 3% RH

MODEL

CAPACITY

INTERNAL DIA. IN CMS (H x W x D)

JHT-40 (B) 6S

6 cuft.(165 Ltrs.)

70 x 50 x 50

JHT-40 (B) 10S

10 cuft.(280 Ltrs.)

90 x 55 x 55

JHT-40 (B) 12S

12 cuft.(324 Ltrs.)

90 x 60 x 60

JHT-40 (B) 16S

16 cuft.(440 Ltrs.)

90 x 70 x 70

TOP

PARAFFIN WAX DISPENSER :

Portable model. Double walled outside made of mild steel painted inside made of stainless steel lid made made of thick stainless steel and bath rests on four castor moving wheels. Heating is provided by a Specially design heaters Temp. is variable from ambient to 900C within accuracy of ± 20C or better.

Size :                           12” x 12” x 8” (mini model)

                                    22” x 16” x 12” (major model)

TOP

PLASMA FREEZERS










PLASMA FREEZERS
These plasma Freezers are designed for quick freezing and storing of plasma and related blood components at desired low temperature up to -35ΊC.

All models feature integrated control panel with digital temperature indicator cum controller and temperature recorder.

Constructed of double walls the exterior is made of sheet steel finish with Enamel paint and the inner chamber is made of stainless steel. The unit is mounted on castor wheels for ease of mobility.

Plasma Freezers are available in horizontal and vertical versions.

Special Features

• Low temperature up to -35ΊC
• Stainless steel inner chamber.
• Extremely efficient insulation to minimise heat loss.
• Digital temperature indicator cum controller with audiovisual alarm.
• Inside sliding acrylic door to avoid temperature loss.


TECHNICAL DATA


Models Volume (Liters) Inside Dim.
WXDXH (cm)
External Dim.
WXDXH (cm)
Min. Temp. Net
Weight
HORIZONTAL PLASMA FREEZERS:
RPF-130 170 60x40x70 115x50x91 -35ΊC
RPF-240 265 95x40x70 150x50x91 -35ΊC

VERTICAL PLASMA FREEZERS:
RPFV-130 170 50x43x85 63x58x138 -35ΊC
RPFV-240 265 58x50x99 70x66x159 -35ΊC


Supply
230 Volts Single Phase 50Hz. AC

Note
Use of JASHBIN make or any good quality servo controlled voltage stabilizer is strongly recommended. 1KVA for RPF-130. RPFV-130 and 2KVA for RPF-240. RPFV-240. Guarantee invalid in case of non use of voltage stabilizer
.







TOP





R

ROTARY SHAKER

V.D.R.L. ROTATOR :

ROTA MANTLE ROLLER POT MILL
ROCKER ROTATING CIRCULAR CELL MIXTURE ABBE REFRACTOMETER

V.D.R.L. ROTATOR :

The body is made of heavy gauge Mild Steel painted .A timer is incorporated in the electrical circuit. The pin point rubber surface of the platform prevents the glass–slides or containers from sliping supplied with spring wire clamp to hold blood bottle .Incorporated with Electric Timer 0-15 Minute.

Platform Size 12” x12”

Full made of Acrylic Sheet in attractively color

TOP

ROTA MANTLE :

These are specially design to meet laboratory requirement of stirring in flask with simultaneous uniform heating by heating mantle for different capacity of flask & with speed regulator.

1 Lit.

R.B. flasks

Watts 300

Speed R.P.M1200

2 Lit.

R.B. flasks

Watts 400

Speed R.P.M1200

5 Lit.

R.B. flasks

Watts 600

Speed R.P.M1200

SPARE :Teflon coated paddle for above Size 9mm x 35mm  long

                                                                 Size 13mm x 50mm long

ROTAMANTLES



ROTAMANTLES (1 RML / 2 RML/ 3 RML)
To meet laboratory requirement of convenient stirring in flask with simultaneous uniform heating by heating mantles. Stirring action and uniform heating in closed, open, or flat bottom round flask. The stirrer speed and heating energy is controlled by step-less speed and energy regulator.
Models   1 RML 2 RML 3 RML
Max. Speed rpm 1200 1200 1200
Flask Capacity Ltrs 1 2 3
Heating Capacity watts 300 400 500
Width mm 210 260 300
Depth mm 210 260 300
Height mm 190 225 240
Stirring Paddles Supplied
Model   Q-19 Q-19A Q-20A
Ψ x Length(mm)   9 x 25 9 x 35 13 x 50


Supply: 230 Volts Single Phase 50 Hz.





TOP

ABBE REFRACTOMETER:

It is used for measuring refractive index in the range 1.3 to 1.7 with in accuracy of 0.001 direct on scale and 0.001 by estimation. Sugar percentage can be measured from 0-95% with an accuracy of 1% on scale percentage can be measured from 0-95% with an accuracy of 1% by estimation. Complete with liquid and thermometer packed in wooden cabinet.

TOP



ROLLER POT MILL :

With 3 roller of 45 Cms long rubber cover of maximum load 40Kgs. Speed 70 R.P.M fitted with Ό HP. Single phase AC R.P.M motor for use of 230 Volt Ac supplied without pots or bolls ideal for dry or wet grinding and mixing of powders pigments. Paints, etc.

TOP

ROCKER :

For mixing sample in test tube bottle flask cylinder etc. at variable speed from 10 to 60 strokes per minute Body made of mild steel painted & tray is made of stainless steel.

Size :300 x 275 x 25mm HT

…Do… As above but with two tier

TOP

S

SOXHLET EXTRACTION HEATER HOT PLATE TYPE SOXHLET EXTRACTION HEATER MANTLE TYPE SOXHLET EXTRACTION HEATER WATER BATH TYPE SOIL TESTING FLASK SHAKER
SEITZ  FILTER SUCTION PUMP SEED GERMINATOR SODIUM PRESS
STERILIZER INSTRUMENTS STEAM STERILIZER TABLE SIEVE SHAKER SOLVENT EXTRACTION UNIT
ELECTROMAGNETIC STIRRER MAGNETIC STIRRERS MAGNETIC STIRRERS WITH HOTPLATE Stirrers - Emulsifiers
Stirrers - General Purpose Stirrers - Heavy Duty LOW SPEED GEARED STIRRER STEAM STERILIZER

SEED GERMINATOR :

Outside chamber is of mild steel finished attractively. Glass wool insulation .Full view inner glass door. Outside metal door with gasket & lock. Boiler tank with top on the chamber.5 perforated removable tray of 48 L x48W x 2H cms. are provided .Temperature  of the chamber is control by Digital Display. Indicating electronic controller with PT 100 Sensor. Force air circulation  . Humidity control  by Sunvic regulator. Hydrometer is provided to know the humidity in chamber .

INTERNAL DIMENSION in cms (H X W X D)

Working chamber is made of

Temp. range accuracy ± C

Humidity range Accuracy ± 3% RH

70 x 50 x 50

Stainless Steel (Single)

100C above amb. to 600C

Ambient to 95% RH

70 x 50 x 50

Stainless Steel (Single)

100C to 600C

45% RH to95% RH

70 x 50 x 50

Stainless Steel (double)

100C above amb. to 600C

Ambient to 95% RH

70 x 50 x 50

Stainless Steel (double)

100C to 600C

45% RH to95% RH

a)      Suitable Voltage stabilizer for above all model.

b)      Chamber illuminated using florescent tube light & variable ON/OFF Timer 24 Hr for DAY & NIGHT effect can be provided for each chamber extra

TOP

SODIUM PRESS :

With stainless steel die for excluding sodium into a wire of 1 mm diameter

... Do…stainless steel die1 mm diameter hole

... Do... 5mm Dia. for potassium

…Do... 10 x 1 mm slot for 1 ithium

TOP

SOLVENT EXTRACTION UNIT

SOLVENT EXTRACTION UNIT

              Features
bullet Remote heating ensures high operator safety.
bullet Built-in drying air pump.
bullet Digital Temperature controller.
bullet Optimised cooling circuit.
bullet Adjustable Thimble holders.

Benefits

bullet Upto 85% saving on Time and Solvent compared to traditional soxhlet method.
bullet Compact and ergonomic design.
bullet Energy saving and easy to operate.
bullet Choice of 2,4 and 6 condenser designs forming the range.

Application

bullet Crude fat in meat and animal fodder, food, pharmaceuticals.
bullet Soluble mineral in textile fibers and paper pulp, petrochemicals.
bullet Animal tissues, soils and sediments, agricultural crops, wastewater etc.







Specifications




S.No.

Parameter

Thermosox SK 400 Series

1

Range

0-100% fat

2

Solvent recovery

65-70% fat

3

Solvent Volume

60-100ml typical

4

Temperature controller

Auto tune P.I.D Micro controller.

5

Temperature range

Ambient to 200C

6

Extraction timer

1-9999 Minutes(Built-in)

7

Extraction thimble Nitrocellulose(Dia 25 x 80 mm)

8

Speed of Extraction 30-60 min depending on sample type.

9

Reproducibility

+-1%relative or better.

10

Electrical Requirement

230V,50Hz single phase AC, 500 W


Ordering Information


Cat No. Capacity
SK 402 2 Samples at a time
SK 404 4 Samples at a time
SK 406 6 Samples at a time

The unit is supplied with the maintenance kit as well as operation manual. On request, we shall provide standard application procedures and also recommend solvent/reagent kits to suit your routine analysis. Post your sales/service related queries online at our website or contact us at the address below.

The SK 400 series Extraction unit represents a major leap in indigenous technology, over competitors who by far continue to rely only on heating blocks. The Remote Service Unit SR 400 uses recirculating Silicone oil. This is particularly safe and should be opted for, when working with low boiling solvents. The power consumed by the Remote service unit is 1500W and can be used in conjunction with any member of the SK 400 series.

The Extraction units also feature a built-in Drying air pump, which supplies air to the unit to augment drying of the sample thimbles, once extraction is complete. The uniquely designed Thimble holders facilities 3-position extraction without a fuss.

TOP

STEAM STERILIZER








STEAM STERILIZER (RSS - 01/02/03)
JASHBIN most comprehensive and time tested range of sterilizers and autoclaves. All autoclaves and sterilizers are made in compliance with national and International standards such as WHO-GMP, GLP, ISI, ISO. The autoclaves are designed for safety, quality and reliability.

This autoclaves comprises the stat of the art microprocessor control module along with full manual control. The cycle is fully automatic including purging, sterilizing, rapid cooling and with potion of prevacuum. The autoclave has extensive safety features such as load based process timer, low level water alarm, over temperature protection, High pressure cutoff, three mechanical safety valves etc.


Technical Details
Structure: Single Wall and Double Wall
Complete with stainless steel loading basket, hose pipe, drain bottle & plug.
Construction: SS 304
Capacity: 50, 115, 160 Lit.
Sterilizing temperature: 105°C to 135°C


Salient Features:
Programmable steam sterilizer for sterilization of glassware, liquids, solids & medical instruments.
Fully automatic with mechanical safety closer system.
Automatic start mode for night and week-end operation.


Power supply: 220V 50 Hz.

PORTABLE AUTOCLAVES(RPA - 01)
General purpose and economical autoclaves suitable for laboratory and hospital use available in single wall and double wall construction.

Technical Details
Structure: Cylindrical Single Wall
Construction: SS 304
Capacity: 20 Lit.
Chamber: 300Ψ X 300 h mm


Power supply: 220V 50 Hz.




TABLE SIEVE SHAKER:

(Soundless, Vibration Type) for 8 " and 12 "  test sieves

Fitted with F.H.P. electric motor. It can accommodate 6 test sieves of 8" dia and 12 " dia. with lid and pan. Speed can be regulated through variable speed regulator to work on 220 volts A.C. (without test sieves).



TOP

TABLET HARDNESS TESTER :



(MASANTOO TYPE)

A fairly handy instrument for taking quick reading hardness of tablets. It is made of gun/brass metal turned parts heavily chrome plated. The scale is 0 to 20 Kg. The index and division in 1 Kg. Reading scale is adjustable for zero setting as per side of the tablets.

(PFIZER TYPE)

This instrument is very handy and portable to test the tablet hardness quickly directly on dial indicator. The hardness of tablet can be tested up to 20 Kg. Complete in case.

TOP



STERILIZER INSTRUMENT  :

Made of polish stainless steel gives an attracting and lasting finish. The instrument tray is Automatically lifted with the cover by the hand lever handle for removing the instrument with ease. Fitted with immersion heater of ejection safety device. The current will cut off automatically in case boiler become dry. Working on 23 Volts ac single phase. (AVAILABLE  IN ELECTRIC AND THERMOSTATIC)

Size

KW

12” x 5” x 4” Ht.

1.0

17” x 8” x 6” Ht.

1.5

20” x 8” x 6” Ht.

2.0

24” x 8” x 6” Ht.

2.0

TOP

ELECTROMAGNETIC STIRRER


ELECTROMAGNETIC STIRRER (1 EMS)
The new 1 EMS Electromagnetic (motor less) stirrer is low profile designed. Complete stainless steel body & only 2" height but yet powerful for silent stirring without unwanted noise and heat for continuous operation.

Most ideally suitable for titration & general lab. Mixing of solution. Superior step less speed controller to control the RPM for 100 to 650. This unit have feature of reverse spin direction mode, which can be adjusted from 30 seconds to 4 minutes. If the stirring paddle flies out then during next cycle it is automatically caught back with the help of Unique Catch Back feature.

Salient Features:


• No moving parts or motor
• Lightweight, compact size & portable.
• Reverse control provides automatic change to direction.
• Accurate Step less Speed control maintains excellent speed stability despite viscosity or volume changes.
•
• Eliminate the noise and heat of motorised stirring.
• Different Models with multiple 2, 3, 4 & 6 stirring points also available.



Technical Data


Model 1 EMS
Max. Speed 650 rpm
Stirring Capacity 1000ml
Diementions W x D x H (mm)
140 x 170 x 60
Weight 1.65kg


Supply
: 230 Volts Single Phase 50 Hz.



TOP



MAGNETIC STIRRERS


MAGNETIC STIRRERS (MS-500 / 1 ML/ 2 ML / 5 ML)
Most compact models with largest volumetric capacity. Balanced permanent magnet to induce variable stirring action in closed or open non-magnetic containers. Stirring is a accomplished by a small Teflon coated magnetic paddle.
Models   MS-500 1 ML 2 ML 5 ML
Max. Speed rpm 1200 1200 1200 1200
Stirring Capacity Ltrs (Water) 500ml 1 2 5
Width mm 90 120 135 175
Depth mm 125 160 170 190
Height mm 100 120 120 125
Stirring Paddles Supplied
Model   Q-18A Q-19 Q-19A Q-20A
Ψ x Length(mm)   7 x 15 9 x 25 9 x 35 13 x 50


Supply:
230 Volts Single Phase 50 Hz.

TOP



MAGNETIC STIRRERS WITH HOTPLATE



MAGNETIC STIRRERS WITH HOTPLATE (1 MLH / 2 MLH /
5 MLH)

Similar to the ML series of magnetic stirrers but having additional stainless steel hot plate, with highest thermal capacity in the most compact size with large volume stirring. The stirring speed and heating energy is controlled by step less speed and energy regulator.
Models   1 MLH 2 MLH 5 MLH
Max. Speed rpm 1200 1200 1200
Stirring Capacity Litres (Water) 1 2 5
Heating Capacity Watts 150 300 500
Width mm 160 160 180
Depth mm 160 160 180
Height mm 135 145 160
Stirring Paddles Supplied
Model   Q-19 Q-19A Q-20A
Ψ x Length mm 9 x 25 9 x 35 13 x 50

Supply : 230 Volts Single Phase 50 Hz.

TOP

Stirrers - Emulsifiers


MEDIUM DUTY HIGH SPEED EMULSIFIER (RQ-127)
For homogenisation, emulsification, dispersion in pharmaceutical industries & laboratories. Fitted with 1/8 HP 5000 RPM AC/DC universal motor, standard model with 4 bladed impeller housed in flanged type age. Saw cutter Impeller optional.

RQ-127/D
with Auto Transformer speed regulator.
Net Weight : 17 kg

HEAVY DUTY HIGH SPEED EMULSIFIERS (RQ-130)
Homogenisation, dispersion and mixing of variable viscosity fluids. AC/DC Motors fitted with 3 bladed impeller housed in flange type cage. Saw cutter impeller optional.

RQ-130/D
and RQ-130B/D with Auto Transformer speed regulator.


Models Motor
HP
Speed
RPM
Stirring Shaft
Ψ x Length
Impeller
Qty x Ψ
Capacity (Litres) Net
Weight

(kg)
RQ-130/D 1/4 4000 12 x 475 mm 1 x 60 mm 16 - 18 23
RQ-130B/D 2/3 5000 12 x 475 mm 1 x 75 mm 20 - 35 26.50

CONTINUOUS DUTY AC EMULSIFIER
