Optima URS is a universal swivel arm X-ray system. It is easy to operate and permits a swift radiographic procedure, a feature which applies to all conventional exposure techniques on all parts of the body. The system is composed of a floor-to-wall column and a turnable arm with variable heigh centre. It allows to take exposures of patients in standing, sitting or laying position. Owing to its compact design Optima URS is a low-cost radiography system which takes up little space and is quick to install. |
 |
|
|||||||||||||||
|
During all movements of the swivel arm, and when the Bucky unit is tilted, the radiation beam axis always reamins aimed at the centre of the film. This simplifies making adjustments and speed up positioning. During exposure the patient adopts a comfortable, relaxed posture. |
|
Exposures of patient in the standing position
|
|
Owing to the large vertical movement of the swivel arm patients in the standing position can be examined from head to feet. The large SID of 2.0 m in conjunction with the short source-image distance allows images with optimum geometry. Frequent applications are, for example, exposures of the chest and extremities. |
Exposures of patient in the lying position
|
With the patient table the patient can be moved into any required position without the need for repositioning. Therefore Optima URS offers the same advantages as a Bucky radiography table with a floating table top. |
|
|||
|
||||
|
|
||||
SPECIFICATIONS
| Basic

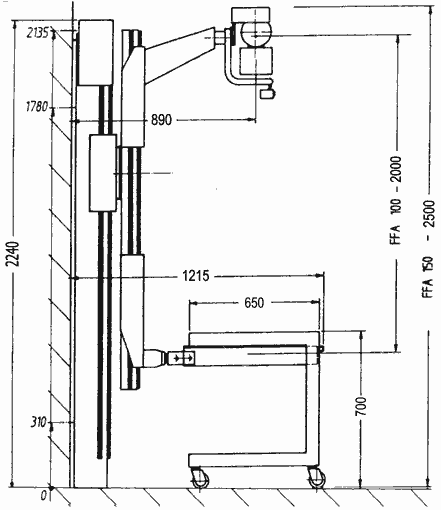

unit Source-image distance (SID): Power supply Dimensions (H x W x D) |
100-200 cm. continuously adjustable (manually) 115, 220, 240, 400 415, 440, 480 VAC; single phase, 400 VA 2,500 mm x 2,300 mm x 1,215 mm |
| Main column |
Sturdy wall and floor-mounted support column wit counterbalanced swivel arm for effortless, accurate setting |
|
Swivel arm Height adjustment Range of rotation Brakes |
|
| Bucky
unit Type Grid |
- with cassette holder and Bucky (max. cassette size: 35x43 cm) - ionization chamber (option) - range of tilt ±90º - flat locking rails for accessories 103 lines / Ratio 10:1 / f0 = 150 cm Other grids can be used if required |
| Generator | SEDECAL Compact X-ray generator (line powered / battery powered) |
| Tube assembly | X-Ray tube turnable 360º with angle digital reading and automatic locks at 0º, 90º, 180º, 270º |
| Diaphragm |
Manual diaphragm with light field indicator and filter |
|
Patient table Dimensions (L x W x H) |
2,000 mm x 650 mm x 700 mm |
| Options | -
Installation of Bucky on left or right side - Ionization chamber |
| Accessories | -
Compression band device - Head support |
| Weights | - Net
Weight: 260 kg - Gross Weight: 320 kg |
