The MOBILE combines the technology of
one of the world's highest-performance high-frequency generator, with a
range of facilities usually unavailable.
The JASHBIN COMPACT generator is the world's smallest
20/30 kW generator, with full battery and stand-alone capability. This
powerful combination results in the most powerful MOBILE for all mobile
generator applications. In particular, A&E rooms benefit from the very
high-performance, high-frequency features, when it is dangerous to move
the patient before a diagnosis is made.
JASHBIN MOBILE is equipped with a Battery assisted 30 kW
compact generator, the world's smallest X-Ray Generator in its cathegory.
Equipped with an AC/DC converter JASHBIN MOBILE unit can
performs X-Ray exams without need of being connected to the mains. This

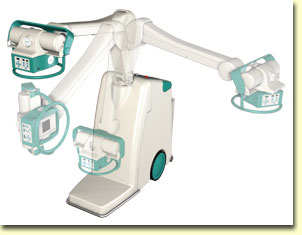

feature in conjunction with a three points articulated arm facilitates
patient positioning.
This mobile is frequently described as a
"RAD room on wheels",
such is
its capability.
SM-20HF
SM-30 HF
40-125 kV
40-150 kV
320 mA
500 mA
500 mAs
500 mAs
20 kW
30 kW
The first
X-Ray Mobile unit with fix radiological room performance
Unsurpassed in the market place, with its enormous
capability, the MOBILE is a very user-friendly device, being motor-driven
to handle all gradients within a hospital. Independently driven wheels
ensures that the generator may be placed in any position very easily,
making imaging simple and straight-forward.
The precision control of the motor-driven wheel ensures
positioning of the X-ray beam to millimetres, with as single cantilever
arm to move over the patient. The long reach minimises patient discomfort,
even when used with the optional AEC.
Built-in automatic collimator and automatic dosage
compensation, with a simple facility, also built-in to measure the SID,
ensures that the imaging process is painless and waste-free.
The MOBILE features all the JASHBIN technology - the
world's smallest 30kW generator, offering 150 kV, 500 mAs, and 500 mA
imaging, coupled with elegant styling, packaged to meets the needs of the
most discerning radiographer. With batteries to drive the generator,
cordless for normal daily operation, the mobile uses independently driven
motorised wheels to ensure that any gradient in any hospital, even with
petite radiographers or users, ensures the accessibility of the device for
all critical examinations.
Two models are offered, of differing imaging
capability, but with the same features.
With an imaging capacity that exceeds the possible
patient through-put between charges, normally undertaken over-night, the
MOBILE is in a class of its own, for the busty hospital, the small clinic,
or private practice, being capable of being linked to a wall-stand for
chest and other upright imaging requirements.
Whatever your needs for mobile imaging are, the MOBILE
meets or surpasses them. With all the hallmarks of JASHBIN generators -
"fit and forget" - the battery MOBILE ensures trouble-free imaging.
JASHBIN does not simply supply generators, but
solutions for all imaging purposes and applications, supplying some of the
world's largest and most prestigious medical manufacturers, for
applications as diverse as basic RAD, to the most modern angio DSA
applications.
