MICROSCOPES :
Microscopes are designed in corporating the latest development in the optical
And mechanical
fields. a microscope with you in mind the pathologist who needs
Fatigue free observations of large number of
specimens a day and researcher
who needs consistent, accurate results and high-fidelity resolution. We deal
for
and many more !
enhanced performance
unsurpassed optical performance
enhanced comfort in operation over long
periods
more space above the stage
electronic noise countermeasures
spill-resistance design
features to match your research needs
fully expandable to meet your feature needs
some of the microscope details :
LABORATORY BIOGICAL MICROSCOPES
1) STUDENT
MICROSCOPE (IRIS DIAPHRAGM TYPE) MODEL JEMS-36
WITH TRIPLE REVOLVING
NOSE PIECE HORSE SHOE BASE, separate COARSE &
FINE
MOTION KNOBES HAVING STOPPER FOR SLIDES SAFETY, SUB STAGE CONDENSER N.A. 1.2
WITH IRIS DIAPHRAGM & FILTER HOLDER. LIGHT ADJUSTMENT BY A REFLECTING MIRROR SUPPLIED WITH:-
TWO ACHROMATIC OBJECTIVES:-
10X & 45X(SL)
TWO HUYGENIAN EYEPIECES :- 10X & 15X
2) MEDICAL MICROSCOPE JEMS-38
|
|
MAGNIFICATION :-
100X-1500X STAND :-ROBUST
& STABLE INCLINABLE THROUGH 900 MECANICAL TUBE LENGTH 160MM FOCUSSING :-
separate KNOBS FOR COARSE & FINE MOTION STAGE :-FIXED
SQUARE STAGE SIZE 120X120MM WITH DETACHABLE
GRADUATED MECHANICAL STAGE FOR X& Y
MOVEMENTS UPTO 50MM TO 75MM IILUMINATION :- CONDENSER :-
SUBSTAGE ABBE FILTER HOLDER N.A. 1.25 CONDENSER WITH IRIS DIAPHRAGM &
SWING OUT FILTER HOLDER FOCUSABLE BY RACK & PINION NOSE PIECE :-
DUST PROOF TRIPLE REVOLVING NOSE PIECE WITH POSITIVE CLICK STOPS. OBJECTIVES :-
ACHROMATIC 10X, 45X & 100X OIL(S.L) EYEPIECES :- HUYGENIAN 10X15X |
3) MONOCULAR MICROSCOPE
JEMS-777
|
|
MAGNIFICATION :- 100X-1500X OBSERVATION :- MONOCULAR INTERCHANGEABLE WITH VERTICAL PHOTO
TUBE & ROTATABLE THROUGH 3600 STAND :-A
RIGID & HEAVY STAND FOCUSSING :-
COARSE & FINE FOCUSSING BY CONVENIENTLY PLACED separate KNOBS 1 DIV
0.002MM STAGE :-
FIXED SQUARE STAGE SIZE 120X120MM WITH DETACHABLE GRADUATED MECHANICAL STAGE
FOR X & Y
MOVEMENTS UP TO 50MM TO 75MM IIUMINATION :- BUILT IN BASE 6V-20W
HALOGEN LIGHT SOURCE WITH PERCENTAGED LIGHT CONDENSER. CONDENSER :- SUBSTAGE ABBE FILTER HOLDER N.A. 1.25 CONDENSER WITH
IRIS DIAPHRAGM & SWING OUT FILTER HOLDER FOCUSABLE WITH RACK &
PINION. NOSE PIECE :-
TRIPLE REVOLVING NOSE PIECE WITH POSITIVE CLICK STOPES. OBJECTIVES :-
ACHROMATIC 10X, 45X & 100X OIL(S.L) EYEPIECE :- HUYGENIAN 10X& 15X |
4)binocular microscope JEMS-778
|
|
magnification :-25x-1500x observation :-binocular interchangeable with vertical photo tube
& rotatable through 3600 stand :-
a rigid & heavy stand focussing :-
coarse & fine focussing by conveniently placed separate knobs 1 div
0.002mm stage :-horizontal
mechanical stage 120x140mm with fine vernier graduation. designed with
convenient coaxial adjustment for slide manipulation through 50x70mm iilumination :-built in base 6v-20w halogen light source with
percentaged light condenser. condenser :- bright field/dark field or phase contrast. moving up
& down rack & pinion. nose piece :-
quarduple revolving nose piece with positive click stops. objectives :-
achromatic 5x, 10x, 45x & 100x oil(s.l) eyepieces :- wide-field 10x & 15x |
5)trinocular microscope JEMS-779’biophot
|
|
magnification :- 25x-1500x observation :-triocular interchangeable & rotatable through
3600 stand :-
a rigid & heavy stand focussing :-
coarse & fine focussing by conveniently placed separate knobs 1 div
0.002mm stage :-horizontal
mechanical stage 120x140mm with fine vernier graduation. designed with
convenient coaxial adjustment for slide manipulation through 50x70mm iilumination :-built in base 6v-20w halogen light source with
percentaged light condenser. condenser :- bright field/dark field or phase contrast. moving up
& down rack & pinion. nose piece :-
quarduple revolving nose piece with positive click stops. objectives :-
achromatic 5x, 10x, 45x & 100x oil(s.l) eyepieces :- wide-field 10x & 15x |
6)advanced co-axial biological microscopes
now the
same world class vision plus series of microscope as WITHIN YOUR reach
ADVANCED TRANSMITTED LIGHT MICROSCOPES

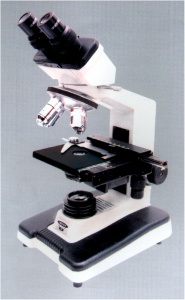

1) BINOCULAR CO-AXIAL RESEARCH MICROSCOPE VISION PLUS- 5000BM
 |
SPECIALLY DEVELOPED FOR
RESEARCH LABORATORIES . BINOCULAR
OBSERVATION HEAD WITH LARGE PRISMS FOR CLARITY & CONTRAST. CO-AXIAL
LOW POSITION COARSE & FINE ADJUSTMENT . CO-AXIAL
PRECISE GRADUATED MECHANICAL STAGE FOR ‘X’ & ‘Y’ MOVEMENTS OF THE OBJECT.
OPTICALLY CORRECTED OPTICS COMPLETELY PARAFOCALISED .
BRIGHT SHARP HALOGEN
ILLUMINATION WITH
ELECTRONIC VARIABLE CONTROL. OBJECTIVES :-
FOUR (DIN SP) 4X, 10X, 40X (SL) & 100X OIL (SL) EYEPIECES :- EXTRA W.F. EYEPIECE 10X PAIRED. |

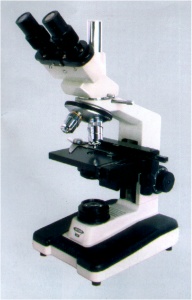

2) TRIOCULAR CO-AXIAL RESEARCH MICROSCOPE
VISION PLUS-5000TM
 |
TRINOCULAR
TUBE FOR ADDITION OF CAMERA, CCTV SYSTEM. TRIOCULAR HEAD INCLINED AT 450 OF THE
HORIZONTAL ROTATABLE THROUGH 3600 WITH HIGH QUALITY
ANTIREFLECTION COATED PRISM TO ENSURE HIGHLY SHARP IMAGE. CO-AXIAL
FOCUSING SYSTEM WITH SLIDE TRAVELING ON BALL BEARING. PROVIDES THE HIGHEST
DEGREE OF SENSITIVITY FREE FROM BACK LASH IN OPERATING THE FINE FOCUSING OF
OPTICAL SYSTEM. A LOW FRICTION
& PARAFOCAL FOUR NOSE OBJECTIVE TURRET ON DUST PROOF CARRIES PROVIDES A
LIFE LONG S`````````````````````MOOTH ROTATION. HIGH QUALITY CO-AXIAL MECHANICAL STAGE OF LOW DRIVE
WITH BALL BEARING FOR PRECESION MOVEMENTS. OBJECTIVES:-
FOUR (DIN SP) 4X, 10X, 40X (SL) & 100X OIL (SL) EYEPIECES: - EXTRA W.F. EYEPIECE 10X PAIRED. |
UNIVERSAL
TRINOCULAR RESEARCH MICROSCOPE microlux-ii-tr with ccd camera:
eye
piece 2 pairs : kwf 15x (compensating wide field)
objectives (5 nos.) (plane achromat) : pl 4x, pl 10x, pls 20x, pls 40x and pls 100x oil
immersion.
supplied
complete as above with one photo eyepiece sp 5x for microphotography in a
storing cabinet.
THE IMAGE SOLUTION FOR
MEDICAL & LABORATORY
APPLICATION

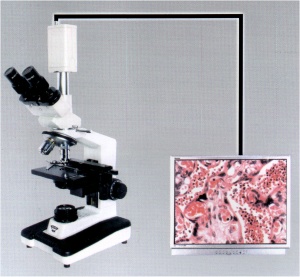

1) CO-AXIAL RESEARCH TRINOCULAR VEDIO PROJECTION
MICROSCOPE
VISION PLUS-5000VPM
 |
WITH COLORED
VIDEO CAMERA & MONITOR/TV SCREEN FOR BIOLOGICAL ,
RESEARCH LABORATORIES & HOSPITALS. OBJECIVES :- FOUR (DIN SP) 4X, 10X, 40X (SL) & 100X OIL (SL) EYEPIECES :- TWO PAIRED 10X & 15X (W.F.) JAPANESE MAKE 24BIT COLOR HIGH RESOLUTION CCD. CAMERA
1/3 INCH CHARGED COUPLED CHIP WITH INTERLINE TRANSFER
470TV LINES RESOLUTION. C-MOUNT READY, COMPOSITE-S VIDEO INPUTS, 14” HIGH RESOLUTION COLOR MONITOR/TELEVISION. |

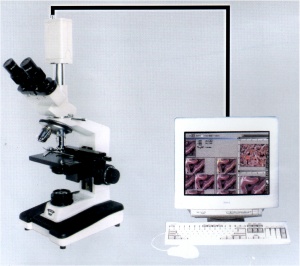

2) CO-AXIAL
COMPUTERISED RESEARCH MICROSCOPE
VISION PLUS-5000CRM
 |
WITH COLORED VIDEO CAMERA & IMAGE PROCESSING FRAME GRABBER. OBJECTIVES :- FOUR (DIN SP) 4X, 10X, 40X (SL) & 100X OIL (SL) EYEPIECES :- TWO PAIRED 10X & 15X (W.F.) JAPANESE MAKE 24BIT COLOR HIGH RESOLUTION CCD.
CAMERA 1/3 INCH CHARGED COUPLED CHIP WITH INTERLINE
TRANSFER 470TV LINES RESOLUTION. C-MOUNT READY, COMOSITE – PENTIUM-4 COMPUTER WITH PRINTER. HIGH RESOLUTION SCIENTIFIC GRADE PROCESSING FRAME
GRABBER (IMAGE SORTING & REPRODUCING COMPUTER SYSTEM WITH PRINTER) |

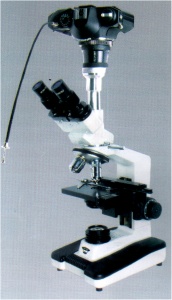

3) CO-AXIAL TRINOCULAR MICROSCOPE
WITH MICROPHOTOGRAPHY EQUIPMENT
VISION
PLUS-5000MPE
 |
WITH 35MM S.L.R. CAMERA
BODY WITH MICROPHOTOGRAPHY ADOPTER. OBJECTIVES :- FOUR (DIN SP)4X, 10X , 40X(SL))100X OIL (SL) EYEPIECES :- EXTRA W.F. EYEPIECE 10X PAIRED JAPANESE MAKE 35MM SINGLE REFLEX CAMERA BODY (WITHOUT FIELD LENS) SHUTTER SPEEDS 1/2000, 1/1000, 1/500, 1/250, 1/125, 1/60, 1/30, 1/15, 1/8, ¼, ½, 1 & B SECONDS WITH BUILT IN EXPOSUREMETER THROUGH THE LENS (TTL) FULL APERTURE/AVERAGING METERING TO SET EXPOSURE TIMES & WITH MICROSCOPE ADOPTER & CABLE RELEASE. |
ADVANCED PHASE CONTRAST RESEARCH MICROSCOPES

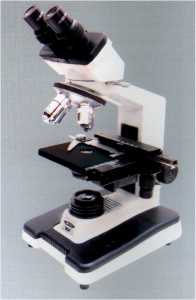

1) BINOCULAR CO-AXIAL PHASE CONTRAST MICROSCOPE
VISION PLUS-5000PCB
 |
EQUIPPED WITH SET OF FOUR OBJECTIVES-PHASE
PLAN ACHROMATE WITH PHASE ANGULAR RINGS BUILT INSIDE MATCHING WITH ANNULAR
PHASE PLATES. SUBSTAGE CONDENSER:-
ABBE’S WITH REVOLVING TURRET HAVING ANNULAR PHASE PLATES FOR 10X,20X40X&
100X OBJECTIVES & 5TH POSITION OF BRIGHT FIELD IRIS DIAPHRAGM.
FULL PLAN ACHROMAT IMPORTED PHASE OBJECTIVES
1)
10X PHASE
2)
20X PHASE(SL)
3)
40X PHASE(SL)
4)
100XPHASE(SL) SUPPLIED WITH CENTERING TELESCOPE EYEPIECE & GREEN GLASS FILTER & PAIR OF W.F. 10X EYEPIECE. |

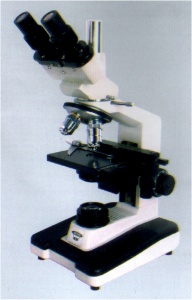

2) TRINOCULAR CO-AXIAL PHASE CONTRAST MICROSCOPE
VISION PLUS-5000PCT
 |
EQUIPPED WITH TRINOCULAR
OBSERVATION HEAD, INCLINED AT 450 OF THE HORIZONTAL,
ROTABLE THROUGH 3600 WITH HIGH QUALITY
ACCURATE IMAGE WITH PERFECT COLLIMATION FOR STAIN FREE OBSERVATION. ADJUSTABLE INTERPUPILLARY & DIOPTRIC DISTANCE. SUBSTAGE CONDENSER:- SUBSTAGE CONDENSER:-
ABBE’S WITH REVOLVING TURRET HAVING ANNULAR PHASE PLATES FOR 10X,20X40X&
100X OBJECTIVES & 5TH POSITION OF BRIGHT FIELD IRIS DIAPHRAGM. FULL PLAN ACHROMAT IMPORTED PHASE OBJECTIVES
5)
10X PHASE
6)
20X PHASE(SL)
7)
40X PHASE(SL)
8)
100XPHASE(SL) SUPPLIED WITH CENTERING TELESCOPE EYEPIECE & GREEN GLASS FILTER & PAIR OF W.F. 10X EYEPIECE. |
projection microscope JEMS-401
|
|
magnification :- 125x-1000x stand :-
compact dust proof in construction projection :-
195mm dia graduated screen rotatable screen :-
360 0 focussing :- focussable condenser with rack & pinion is fitted
under the stage & fine focussing knobs placed seperately in convenient
position. stage :- co-axial mechanical stage is attached for comfortable
& convenient manipulation of slides. iilumination :- 12v-100w super bright
halogen lamp controlled by variable solid state arrangements. objectives :-
5x, 10x,20x & 45x eyepieces :-
adjusting magnification value in different objectives. |
advanced projection
microscope with binocular head model JEMS-402
same specification as
above model, but equipped head with switch over system.,
facilating observation of the specimen through binocular head as well as on the
screen supplied with
four achromatic objectives :- 5x, 10x, 20x(sl)
& 45x(sl)
two pAIRED W.F. EYEPIECES :-10X & 15X
OPTIONAL ACCESSORIES
1) HALOGEN LAMP 12V-100W
2) STAGE MICROMETER
3)OBJECTIVE-60X
FOR 1500X MAGNIFICATION
OPTIONAL ATTACHMENT FOR MICROSCOPES :
A)
vedio projection system(coloured)
japanese make 24 bit
colour high resolution ccd camera 1/3” charged coupled chip with interline
transfer 470tv lines resolution.
c-mount ready. composite-s video inputs. 14” high
resolution colour monitor/television.
B)
computer imaging system
japanese make 24 bit
colour high resolution ccd camera 1/3” charged coupled chip with interline
transfer 470tv lines resolution.
c-mount ready. composite-s video inputs.
high resolution scientific grade processing frame grabber(image
storing & reproducing computer system with printer)
c) microphotographic equipment
japanese make 35mm single reflex camera body
(without field lens) shutter speeds 1/2000. 1/1000, 1/500, 1/250, 1/125, 1/60,
1/30, 1/15, 1/8, ¼, ½, 1& b seconds with built in exposuremeter through the
liens (ttl) full aperture /averaging metering to set exposure times & with
microscope adoptor & cable release.
d) dark field attachment
set
of 100x objective with substage dark field condenser.
e) polarising attachment
set of polarised analyser
polariser plate gypsum plate, 1/4th wave length retarding plate
& bertrand lens. suitable mounts for adapting into the microscope system to
achieve polarised light arrangement.
f) measuring eye piece
10x eye piece with
graticule glass scale showing 10mm divided into 100parts.
g) bject micrometer slide
1mm, scale on glass side.
divided into 100parts.
h) spare bulb
halogen 6v-200w suitable
for all our biological microscope.
STEREOSCOPIC MICROSCOPICS
1) STEROSCOPE MICROSCOPE JEMS-211
|
|
MAGNIFICATION :- 20X-60X OBSERVATION :- BINOCULAR INCLINED AT 450 ROTATABLE
IN 3600 stand :-
flat duly balanced with milky glass plate & clips for specimens. focussing :-
rack & pinion with extra large knobs. objectives :-
2x & 4x mounted on interchangable slide. eyepieces :-wide-field
10x & 15x |
2) stereoscopic microscope JEMS-214
|
|
magnification :- 20x-60x observation :-binocular inclined
at 450 rotatable in 3600 stand :- heavy & stable
construction focussing :-
rack & pinion with extra large size knobs & slip clutch mechanism
with safety stop. illumination :-
stand provides both incident & transmitted light with all electrical
& transformers built inside base having 6v-12w lamps. objectives :- 2x & 4xpaired mounted
on revolving turret, changing from low to high by simple rotation & no
exchangeslides eyepieces :- extra wide field 10x & 15x |

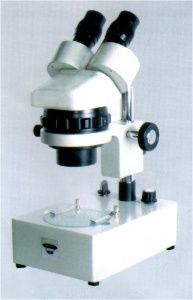

3) STEREOSCOPIC ZOOM BINOCULAR MICROSCOPE
MODEL- 218.
 |
MAGNIFICATION :-10X-180X CONTINUOUS ZOOM DEOENDING UPON EYEPIECE &
AUXILIARY OBJECTIVES USED. OBSERVATION :-ZOOM
BINOCULAR HEAD
INCLINED AT 450 ROTABLE 3600
PROVIDING ERECT UNREVERSED IMAGES WITH INTERPUPILLARY / DIOPTER ADJUSTMENT. WORKING DISTANCE:- STANDARD 86MM WITHOUT AUXILLARY OBJECTIVES. IILUMINATION :- BUILT IN ILLUMINATION SYSTEM OF INCIDENT &
TRANSMITTED LIGHT WITH VARIABLE LIGHT CONTROL . BUILT IN OBJECIVES :- PARAFOCAL ZOOM OBJECTIVES 1X-6X PROVIDING CONTINUOUS
VARIABLE MAGNIFICATION. EYEPIECE :- EXTRA WIDE FIELD 10X (PAIRED) OPTIONAL :- AUXILIARY OBJECTIVES: 2X EYEPIECES :- W.F. 15X(PAIRED) W.F. 20X (PAIRED) |
4) BINOCULAR STEREO
ZOOM MICROSCOPE MODEL JEMS-219
SUITABLE
FOR MICROPHOTOGRAPHY OR VEDIO PROJECTION SYSTEM. THE TRINOCULAR OBSERVATION HEAD HAS A LIGHT PATH SELECTOR
LEVER WHICH DIRECTS EITHER FULL LIGHT TO THE BINOCULAR OBSERVATION HEAD WHICH
ENABLES SIMULTANCEOUS VIEWING WHILE PREPEARING FOR MICROPHOTOGRAPHY . OTHR
SPECIFICATION OF MICROSCOPE SAME AS THAT OF OUR MODEL JEMS-218
OBJECTIVES :-
ZOOM 1 TO 6X
EYE
PIECES :- EXTRA WIDE FIELD 10X(PAIRED)
MAGNIFICATION :-10-60X(WITH 10X
EYEPIECES)STANDARD
OPTIONAL :-FOR
HIGHER MAGNIFICATION RANGE SELECT AUXILLARY OBJECTIVES & EYEPIECES AS
DETAILED BELOW
OPTIONAL
ACCESSORIES FOR HIGHER MAGNIFICATION UPTO 180X
1)AUXILLARY OBJECTIVES :-2X
2) EYE PIECES :- W.F. 15X(PAIRED)OR W.F. 20X(PAIRED)
3)FIBRE OPTIC LIGHT SOURCE & GUIDES:- SUITABLE FOR USE A
STEREO MICROSCOPE PROVIDE HIGH INTENSITY COLD ILLUMINATION. CONSISTING
OF POWER SUPPLY UNIT HAVING 150W HALOGEN ILLUMINtor. transformer
& blower system for working on 220v 50hz. supplied complete with
goose neck light guides.
tissue culture inverted microscopes
1 ) inverted microscope JEMS-790
|
|
magnification :- 25x-450x observation :-
inclined binocular with adjustable interpupillary dstance. base :- extra large size rectangular base heavy & stable
with transformer & electrica;l fitted inside. focussing :-
separate knobs for coarse & fine motion stage :-
mechanical stage size 120x140mm with low position coaxial drive mechanism iilumination :-high intensity 12v-50w halogen lamp with focussable
condenser iris diapragm & heat filter condenser :- an ausilary holder for bright field or phase contrast
is provided as optical equipments. nose piece :- quadruple revolving type objectives :-
special long working distance objectives 5x, 10x, 20x &45x eyepieces :-h5x&w.f. 10x |
2) compact inverted trinocular tissue culture
research microscope model JEMS-792
four achromatic objectives :-
5x, 10x,20x(sl) & 45x(sl)
two paired eye-piece :- h5x
& w.f. 10x
3)
compact inverted trinocular tissue culture research microscope with
microphotography equipment model JEMS-793
same details as above model JEMS-792 but equipped
with
micro photographic equiment
Japanese make 35mm single reflex camera body
(without field lens) shutter speeds 1/2000. 1/1000, 1/500, 1/250, 1/125, 1/60,
1/30, 1/15, 1/8, ¼, ½, 1& b seconds with built in exposuremeter through the
liens (ttl) full aperture /averaging metering to set exposure times & with
microscope adoptor & cable release
4)
compact inverted trinocular phase contrast tissue culture research
microscope model JEMS-794
equipped with set of four objectives phase plan
achromat with phase
paln achromat with angular rings built inside matching with
angular phase plates.
substage condenser:-
abbe’s with revolving turret having annular pahse plates for 10x, 20x, 40x
&100x objectives & a fifth position of bright field iris diaphragm.
full palm achromat
imported objectives:- 10x, 20(sl),40x(sl),100xoil(sl)
supplied with centering telescope
eyepiece & green filter & a pair of wf 10x eyepiece.
polarizing
& ore
1) binocular poarizing microscope model JEMS-888
it having low positioned controls
, coarse & fine motion system on both sides. triple revolving nose
pieces& 150mm circular graduated stage in upper plate having rotary &
centering adjustment. substage abbe 1.2n.a. condenser
with centering adjustment . polarizer
rotating & graduated to 360 degree. analyzer provided in a slide
which can be swung in & out of the microscope tube for conoscopy
observation & din standard compensator slot at 45 degree accommodating first circular red sensitive
gypsum plate & 1/4th wave length retarding plate.
three stain free
achromatic objectives :- p5x, p10x & p45x(sl)
eye pieces :- h10x paires, h5x with cross & h10x with micro
2) trinocular research polarizing microscope
model JEMS-888a
same mechanical detail as
model JEMS-888 but fitted with trinocular head for photo micrography instead of
binocular head.
3) binocular research
a inclined
three stain achromatic objectives 05x, 010x & 045x(sl)
eye piece h10x
paired, h5x with cross & h10x with micro
4) trinocular research
same mechanical detail as model JEMS-889 but
fitted with trinocular head for photo micrography instead of binocular head.
up-right
metallurgical microscopes
it has been engineered to meet the requirements of
the modern mettallurgical laboratories. the time tested design is the most
logical &
practical for a metallurgical microscope.
simply place the specimen switch on the illuminator
rotate the required objective into position & you are ready to observe or
photograph. all components of the illuminating system are completely built in
& remain permanently aligned . optical system
has been designed with great care to guarantee full contrast images. completely free from glare.
1)
inclined monocular metallurgical microscope model JEMS- 56
three
achromatic objectives :- m5x, m10x & m45x(sl)
two eye pieces :- h5x, & w.f. 10x
illumination :- 6v-20w(halogen lamp)
filters :- green & blue
magnification :- 25x-450x
2) binocular metallurgical microscope model
JEMS-57
three
achromatic objectives :- m5x, m10x & m45x(sl)
two eye pieces :- h5x, & w.f. 10x
illumination :- 6v-20w(halogen lamp)
filters :- green & blue
magnification :- 25x-450x
3) trinocular metallurgical
microscope model JEMS- 780 ‘metaphot’
four
achromatic objectives :- m5x, m10x & m45x(sl) & m 100xoil(sl)
two eye pieces :- h5x, & w.f. 10x
illumination :- 6v-20w(halogen lamp)
filters :- green & blue
magnification :- 25x-1000x
advanced co-axial
up-right metallurgical microscopes
1) co-axial binocular research
metallurgical microscope vision plus-5000bmm
a most modern & latest
model of binocular metallurgical microscope equipment with co-axial coarse
& fine focussing system supported on ball bearing.
four
(din) achromatic objectives :- m4x, m10x, m40x(sl) & m100x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 6v-20w ( halogen lamp)
filters :- green & blue
magnification :- 20x-1000x
2)
co-axial trinocular research metallurgical microscope vision
plus-5000tmm
suitable for microphotography or vedio projection system . the trinocular observation head has a light path
selector lever which directs either full light to the binocular observation
head which enables simalultaneous viewing while preparing for microphotography.
four (din) achromatic objectives :- m4x,
m10x, m40x(sl) & m100x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 6v-20w ( halogen lamp)
filters :- green & blue
magnification :- 20x-1000x
top
inverted metallurgical microscopes
it has been
engineered to meet requirements of the modern metallurgical laboratories. the
time tested inverted design is most logical & practical for a metallurgical
microscope. a special feature of the inverted design is flat unobstucted stage
surface which places no limitation of the size & height of the specimen.
quality assurance throughout the manufacturing process ensures that compilance
with demanding performancer stands is matched.
1)
inverted binocular metallurgical microscope model JEMS-796
four flat field-lwd achromatic objectives :- m5x, m10x,
m20x(sl) & m45x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 12v-50w ( halogen lamp)
filters :- green & blue
magnification :- 20x-1000x
2) inverted trinocular metallurgical microscope
model JEMS-797
four
flat field-lwd achromatic objectives :- m5x, m10x, m20x(sl) & m45x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 12v-50w ( halogen lamp)
filters :- green & blue
magnification :- 25x-450x
coaxial inverted
metallurgical microscopes
1 ) co-axial inverted
binocular metallurgical microscope vision plus-5000ibm
a most &
latest model of binocular metallurgical microscope equipment with co-asxial coarse & fine focussing system supported an ball
bearing.
four (din) achromatic objectives :- m4x,
m10x, m20x(sl) & m40x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 12v-50w ( halogen lamp)
filters :- green & blue
magnification :- 20x-400x
2) co-axial inverted
trinocular metallurgical microscope vision plus-5000 itm
four
(din) achromatic objectives :- m4x, m10x, m20x(sl) & m40x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 12v-50w ( halogen lamp)
filters :- green & blue
magnification :- 20x-400x
3) co-axial inverted trinocular metallurgical
microscope with bright field & polarised light illumination vision
plus-5000 pli
four
(din) achromatic objectives :- m4x, m10x, m20x(sl) & m40x oil(sl)
two paired eye piece :- h5x
& w.f. 10x
illumination :- 12v-50w ( halogen lamp)
filters :- green & blue
magnification :- 20x-400x
polarised
filters :-built
in rotatable & lamp polariser to work in polarised light
mechanism :- built in optical path selector photo, tube for 35mm
camera is included
optional attachment for metallurgical microscopes
A)
vedio projection system(coloured)
japanese make 24 bit colour high resolution
ccd camera 1/3” charged coupled chip with interline transfer 470tv lines resolution.
c-mount ready composite-s
vedio inputs, 14” high resolution colour nmonitor/television.
B)
computer imaging system
japanese make 24 bit colour high resolution
ccd camera 1/3” charged coupled chip with interline transfer 470tv lines resolution.
c-mount ready composite-s vedio inputs
high resolution
scientific grade processing frame grabber.
C)
microphotographic equipment
japanese make 35mm single reflex camera body
(without field lens) shutter speeds 1/2000, 1/1000, 1/500, 1/250, 1/125, 1/60,
1/30, 1/15, 1/8, ¼, ½, 1 & b seconds with built in exposuremeter
through the lens full aperture metering
to set exposure times & with microscope adoptor & cable release.
d) grain size eye piece
this eyepiece is used with 10x objectives
fitted with rotating turret having eiht standard astm & jis grain size
charts, which can be rotated to cover the entire field or to adacent charts.
e) measuring eye piece-
10x eyepiece with graticule glass scale
showing 10mm. dived into 100parts.
f) object micrometer slide
1mm scale on glass slide divided into 100
parts.
g) spare bulb
halogen 6v-20w/12v-50w suitable for all our metallurgical microscope.
h) eyepiece 15x wide field(paired)
i) 60x objective (for higher magnification)
j) 100x objective(oil)
(for higher magnification)
1)
single disc polishing
machine model JEMS-2001
it is a portable model for polishing of metallographic
sample. disc dia 200mm made of bronze. speed continously variable upto 900rpm.
rating-0.25hp single phase 220v a.c. provided with sink & swing type
vlaboratorywater tap. waterproof formica table top.
double disc polishing machine model JEMS-2002
this is a double disc polishing machine for
metallographic samples .two indipendent polishing unit mounted on a common ms
frame other specification as per single disc model JEMS-2001
2)
JEMSer –m hand grinder (polishing stand) model JEMS-2004
hand grinder is designed to take four verity
of grinding papers of 11” x 3”.these are clamped on plane surface on both side
to hold these flat & tight.wet grinding is possible owing to provision of
water jets with value and drainage at an angle for easy flow of water and
waste.
3)
specimen leveller model
JEMS-2005
this provides simple & perfect method
for parallelism of the specimen surface perpendicular to the optical axis of
the microscope surface can be carried out without frequent focussing.
4) dry
surface model JEMS-2006
this surface for pregrinder for prepearing
specimen for microscopic examination belt size-100mm x 915mm electric mtor
–0.25h.p. , 220v a.c. single phase-1400rpm.
5)
specimen mounting press model JEMS-2008
for permanent mounting of
metal & rock specimen in the thermosetting plastic or bakelite powder.
the unit is of a rugged construction & is activated by hydrulic
presscapable of total lift of approx 8 tons. it is provided with gauge to read
pressure. the press is provided with electric mould heater controlled by
imported sunvic energy
regulator & neon lamp indicator fitted in small cubicle. supply includes
finned cast alluminium coooler to cool down mould. unit operates on 220volts
a.c. supply.
6)
cut off wheel machine
model JEMS-2009
it is used for cutting metallurgical
specimen without changing micro structure. pedstal type with
heavy base & wheel 8”-10” dia for specimen upto 50mm section. fitted with 1 h.p. ac electric motor. the spindle is fitted in heavy duly ball bearing dolley & driven by vee
belts. an independents motorised pump for high volume
coolant to reduce tempering effect of heat during cutting.
7)
rectangular muffle furance model JEMS-2010
maxium temp. 950deg c
working temp. 900deg .c light weight with cermic fibre wool
insulation.the outer casing is made of doube walled thick p.c.r.c. sheet
painted with attractive stove enamel. hesting elements are made of kanthal wire
backed by cerawool insulation. a viewing cap is also provided on the door.
temperature control unit consist of digital controller
cum indicator to work on 220/230v ac with an accuracy of +-3 deg. c better.
no. muffls cize(inside) rating
a 100x100x225mm(4”x4”x9”) 1.6k.w
b 125x125x250mm(5”x5”x10”) 2.0k.w.
c 150x150x300mm(6”x6”x12”) 3.0k.w.
d 200x200x300mm(8”x8”x12”) 5.0k.w.
8)
rectangular muffle furance model JEMS-2011
maxium temperature
1200deg c working temp. 1150deg c other specifications are same as
above model JEMS-2010
no. muffls cize(inside) rating
a 100x100x225mm(4”x4”x9”) 1.6k.w
b 125x125x250mm(5”x5”x10”) 2.0k.w.
c 150x150x300mm(6”x6”x12”) 3.0k.w.
d 200x200x300mm(8”x8”x12”) 5.0k.w.
vision plus profile projectors
suitable for all types of measurements &
inspections at industries & institutions.
its multilayer coated projection lenses provide high transmission & optimum
contrast suitable for contour & surface images. the equipment ensures high
accuracy in dimencial measurements & surface inspections. its unque rigid pedstal system facillates vibration free
hanling of components. it corporates both epi & diascopic illuminators
designed on halogen bulb system to ensure brilliant projection.
1)
profile projector vision
plus JEMS-2000 t.t
SCREEN DIAMETER :-200MM
STANDARD MAGNIFICATIONS :-10X
WORKSTAGE :-150MM X150MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
2)
profile projector vision
plus JEMS-3000t.t
SCREEN DIAMETER :-300MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
3)
profile projector vision
plus JEMS-4500t.t
SCREEN DIAMETER :-450MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MM
BY MICROMETER
HEADS LEAST COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
others
:
a4 size overhead projector
portable
overhead projector
a4 size high lumens ohp
automatic
slide projector
episcope /
opaque projector
multimedia
projector
microfilm /
microfiche reader
multifunctional
ccd camera
close
circuit video equipment
analysis software
projection screens
– plastic projection screens, tripod model, wall and ceiling model, map type
FLOOR TYPE PROFILE PROJECTORS
4)
PROFILE PROJECTOR VISION
PLUS JEMS-3000 F.T.
SCREEN DIAMETER :-300MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-150MM X150MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
5)
profile projector vision
plus JEMS-4500f.t.
SCREEN DIAMETER :-450MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
7) profile projector vision plus JEMS-6000f.t
SCREEN DIAMETER :-600MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MMload capacity 3 kg
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w(surface)
power supply :-
230v single phase ac
vertical
type profile projector
1)
profile projector vision plus JEMS-801a
SCREEN DIAMETER :-300MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
2)
profile projector vision plus JEMS-802a
SCREEN DIAMETER :-450MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM X200MM
TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
3) profile projector vision plus JEMS-803a
SCREEN DIAMETER :-600MM
STANDARD MAGNIFICATIONS :-10X& 20X
WORKSTAGE :-200MM
X200MM TRAVEL 50MMX50MM
BY MICROMETER HEADS LEAST
COUNT 0.01MM
RANGE 0 – 25MM
ANGULAR MEASUREMENT :- 2 minute
vernuer
illumination :- 24v-150w(profile)
12v-100w9surface)
power supply :-
230v single phase ac
accessories for profile
projectors
a) projection lens- 50x magnification
B)
projection lens-100x magnification
C)
digital micrometer heads , push button zero
setting l.c. 0.001mm
D)
digital readout system 2 axis l.c. 0.005
micron
E)
rotary stage- circular graduated scale
divided into 360degree with vernier reading of 6 minutes with glass plate 80mm
dia used for rotating components in relations to lens axis
F)
center holding device-100mm length between
centers used fro holdings small leader screws, gears & similar components
at their on the vertical light path of projector.
G)
collect holding device- 0.5 to 2mm dia
compnets with angular movements upto 10 degree on either side for checking
angular measurements.
H)
precision vice- for holding parts on
required axis.
I)
pair of vee blocks with adjustable centers-
set of 2 nos with clamps size 50mm used for holding large components.
J)
vee support – with spring clamps for
inspections of parts without centers or counter bores.
K)
overlay charts- a set of five charts for
checking angles,
cross,
graph, measuring scale & circle.
l) halogen bulb 12v-100w (
with reflector)
m) halogen bulb 24v-150w
TOOL MAKERS MICROSCOPE
IT DESIGNED AS PER
1)
TOOL MAKERS MICROSCOPE MODEL JEMS-1395
MAGNIFICATION :-30X(STANDARD)
OBJECTIVE :-2X
EYE PIECE :-WF 15X
WITH CROSS RETICLE
FIELD OF VIEW :-
8MM DIAMETER
WORKING DISTANCE :-80MM(APPROX)
IMAGE :-ERECT
OVSERVATION :- MONOCULAR INCLINED AT 300
STAND
OVERALL :- LARGE & HEAVY BASE PROVIDE EXTRA VIGIDITY TO THE
INSTRUMENT
MEASURING
STAGE :- 150X150MM TRAVEL UPTO 25MM IN EACH DIRECTION HAVING LEAST
COUNT 6 MINUTES
EYE
PIECE PROTACTOR :- GRADUATED 0 TO 3600 WITH ADJUSTABLE VERNIEROF LEAST COUNT 6 MINUTES
ILLUMINATION :-BUILT IN BASE
TRANSMITTED FROM 6V-20W
HALOGEN
LAMP & INCIDENT LIGHT FROM TWO LAMP WITH VARIABLE separate CONTROL INFRONT PANEL.
2) ADVANCED TOOL MAKER MICROSCOPE MODEL
JEMS-1395A
SAME SPECIFICATION AS
ABOVE MODEL BUT SUPPLIED WITH HIGHER MAGNIFICATIONS 30X, 75X, 150X
OPTIONAL ACCESSORIES FOR TOOL MAKER MICROSCOPES
A)
DIGITAL
MICROMETER HEADS. PUSH BUTTON ZERO SETTING L.C. 0.001MM
B) DIGITAL READOUT SYSTEM(DRO) 2 AXIS L.C. 0.005MICRON.
C) ROTARY STAGE:- CIRCULAR GRADUATED PLATE 0 TO 360DEGREE, STAGE WITH
VERNIER READING OF 6 MINUTES WITH GLASS PLATE IN FITTED ON MEASURING STAGE.
D) CENTER HOLDING DEVICE
ATTACHMENT:- WITH ANGULAR MOVEMENT UPTO 10 DEGREE ON
BOTH SIDE FOR CHECKING ANGULAR MEASUREMENT. E) DEPTH MEASURING
ATTACHMENT:- FOR PRECISE MEASUREMENT OF DEPTH OR EIGHT
OF ANY SPECIMEN. THE ATTACHMENT HAVING A DEPTH GAUGE CALIBRATED IN UNIT 0.01MM
& IS FIXED TO THE FOCUSSING MECHANISM OF MICROSCOPE. THE TWO DIFFERENT
STAGES ON THE SPECIMEN ARE FOCUSSED & THE DIFFERENCE IN
F)
PRECISION
VICE- THE SMALL PRECISION VICE FOR HOLDING PARTS ON REQUIRED AXIS.
G)
V-BLOCK- SET OF 2 NOS. WITH CLAMP SIZE-50MM
H)
VEE
SUUPORT-WITH SPRING CLAMPS FOR INSPECTION OF SMALL PARTS. WITHOUT CENTER OR
COUNTER BORES.
G) MEASURING EYE PIECE WITH RETICLES
A) JEMS-301 METRIC COARSE
THREAD 0.25-1.0MM
B) JEMS-302 METRIC
COARSE THREAD 1.25-2.0MM
C) JEMS-303 CONCENTRIC
CIRCLE 0.5MM-10.0MM
D) JEMS-304 60
DEGREE ANGLE
E) JEMS-305 WHITEWORTH
18-20-24 TPI
top
VISUAL
TEACHING AIDS
1)
OVERHEAD PROJECTOR MODEL JEMS-806B
A COMPACT & UNQUIE
DESIGN OF OVERHEAD PROJECTOR EQUIPPED WITH 24V-250W HAOGEN LAMP CONTROL THROUGH
INTENSITY CONTROL SWITCH. THE BEST QUALITY DOUBLE FRESNEL LENS & HARD COATED
SILVER MIRROR PROVIDE OPTIMUM BRIGHTNESS IN PROJECTION & FREE FROMCOLOR
ABERRATION. THE HIGH CLASS & POWERFUL COOLING SYSTEM & HEAT OBSERVING
FILTER ENSURE HIGH DEGREE OF OPERATIBILITY. SIZE OF PROJECTION STAGE 250X250MM
& PROJECTION HEAD WITH ELEVATION DEVICE & SENSITIVE FOCUSSING CAN BE
DONE THROUGH RACK & PINION SUPPLIED WITH 20NOS. TRANSPARENCY SHEETS &
VINYL COVER.
2)
OVERHEAD PROJECTOR MODEL JEMS-806C(DUAL LAMP)
ALL SPECIFICATION AS
MODEL JEMS-806B BUT EQUIPPED WITH DUAL BULB SYSTEM, THE FUSED BULB CAN BE
CHANGED IMMEDIATELY BY SHIFTING THE LEVER KNOBS.
ACCESSORIES
A)
SUPER LASER CORDLESS POINTER TO OPERATE WITH
2 PENCILS.
B)
METAL TELESCOPIC
POINTER.
B)
TRANSPARENCY
SHEETS 100 MICRONS SIZE A4( PACK OF 100S)
C)
TRANSPARENCY PERMANENT MARKER FINE TIP (6
DIFFERENT COLORS ONE ERASER SET OF 7 IN A PLASTIC POUCH)
E) HALOGEN
LAMP 24V-250W
3)
SLIDE FILM PROJECTOR MODEL JEMS-807
AN IDEAL COMPACT
VERSATILE & MULTIPURPOSE SLIDE FILM PROJECTOR HAVING A GOOD DESIGN &
RIGID CONSTRUCTION. EQUIPPED WITH 24V-150W HALOGEN LAMP . THE BEST QUALITY OF DOUBLE
CONDENSER LENS TO PROVIDE BRILLIANT PROJECTION SUITABLE FRO LARGE GATHERINGS.
ITS HIGH CLASS & POWERFUL NOISELESS COOLING SYSTEM & HEAT OBSERVING
FILTER PROTECT SLIDES DURING PROLONGED PROJECTION. SUPPLIED
WITH FILM STRIP & SLIDE ATTACHMENT FOR 2”X2” KODACHROME SLIDES &35MM
FILM STRIP.
A) COMPLETE WITH BEST
QUALITY PROJECTION LENS.
B) COMPLETE WITH GERMAN
PROJECTION LENSES HAVING 85MM F-2.8 COATED LENS.
4)
AUTOMATIC SLIDE PROJECTOR MODEL JEMS-807A
IT IS MOST
CONVENIENCE IN USE & TO PROVIDE BRILLIANT PROJECTION SUITABLE
FOR LARGE GATHERINGS. IT HAS REMOTE
CONTROL SLIDE CHANGING MECHANISM . THE INSTRUMENT IS
ASSEMBLED FROM BEST QUALITY IMPORTED MECHANICAL & OPTICAL COMPONENT. ITS
HIGH CLASS OPTICS & POWERFUL COOLING SYSTEM PROVIDES EXCELLENT PROJECTION
& ALSO ENABLES PROLONGED PROJECTION OF INDIVIDUAL SLIDES.
EQUIPPED WITH 24V-150W HALOGEN LAMP LINEAR SLIDE MAGAZINE FRO PROJECTION
36 SLIDES AT A TIME.
5)
EPISCOPE MODEL JEMS-808
A COMPACT LIGHT WEIGHT & UNIQUE DESIGN OF
EPISCOPE EQUIPPED WITH 240V-1000W HALOGEN LAMP. HIGH GRADE AN ASTHMATIC LENSES
& SURFACE COATED REFLECTING MIRRORS PROVIDING BRILLIANT PROJECTION OF OPAQUE
OBJECTS AS BOOKS, PICTURES, MAPS
DIAGRAMS UPTO SIZE- 175X175MM IS EVENTLY ILLUMINATED & PROJECTED ON THE
SCREEN TO ANY SIZE DESIRED THROUGH AN EPIREACTOR LENS. ITS POWERFUL NOISELESS
COOLING SYSTEM PROVIDING UNDISTURBED PROJECTION FOR DESIRED DURATION COMPLETE
WITH VINYL COVER.
6)
EPIDSCOPE MODEL JEMS-52A
ITS MULTIPURPOSE EQUIPMENT & HIGHLY VERSATILE FOR USE AS AN EPISCOPE A
SLIDE PROJECTOR, A FILM STRIP PROJECTOR & MICRO SLIDE PROJECTOR WITH THE
AID OF DIFFERENT TYPES ACCESSORIES. EQUIPPED WITH 240V-1000W HALOGEN LAMP HIGH
GRADE SET OF THREE ENASTIGMATIC LENSES & OPTICALLY TRUE SURFACE COATED
MIRRORS PROVIDING BRILLIANT PROJECTION OF OBJECTS.
7)
PROJECTION SCREEN SIZE-72”X50” WITH FOLDING
STAND
